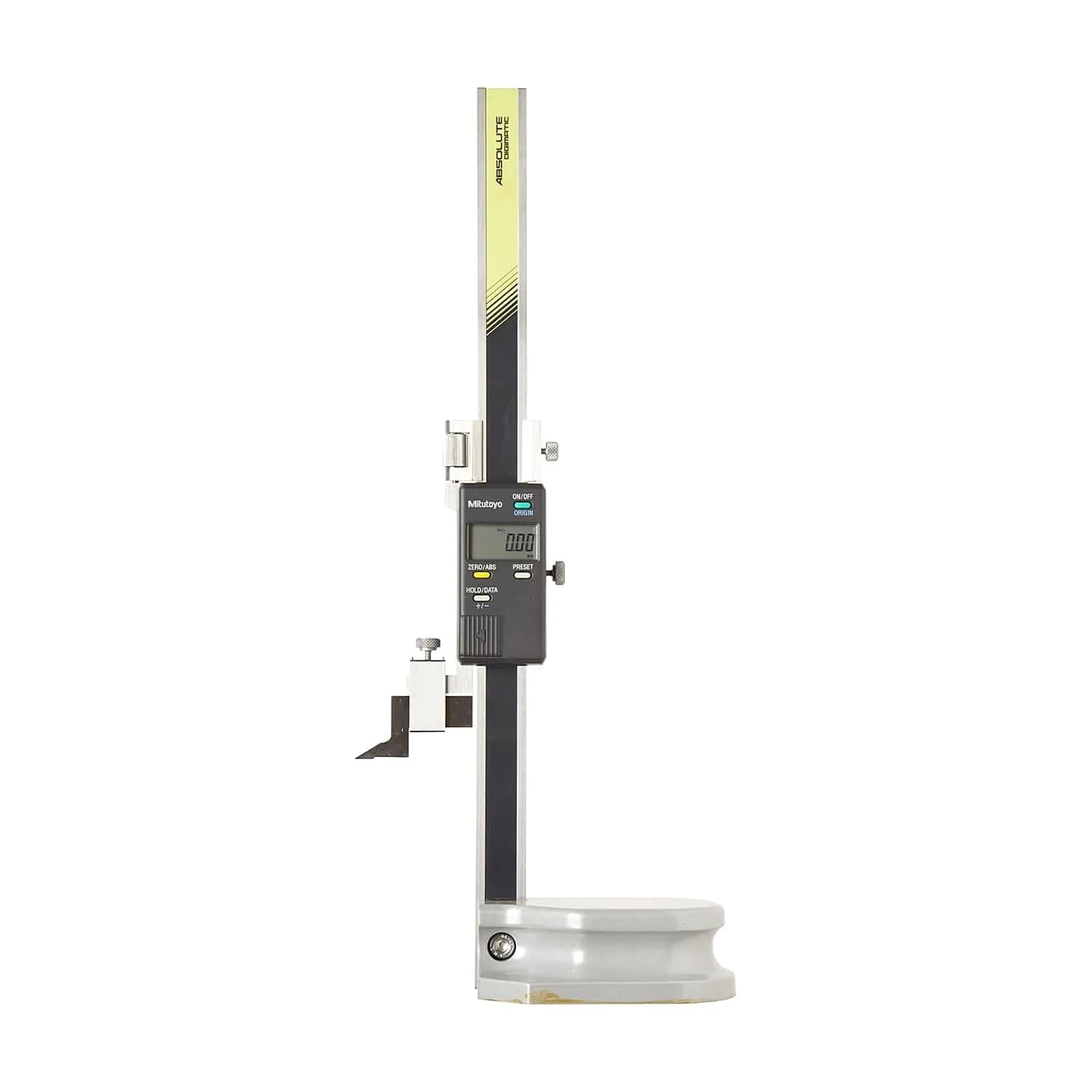

Mitutoyo 600 mm Digimatic Digital ABS Height Gauge, 570-304
Roll over the image to zoom in
Key Features
- Product Type: Height Gauge
- Range (mm): 0 - 600 mm
- Digital step: 0.01 mm
- Power supply: 1 battery SR-44
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹44,162 (Incl. of all taxes)
₹37,425 + ₹6,737 GST (18%)
MRP was MRP ₹49,900
Save 25%
Out of Stock
1 Business Days
1
–
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
This Digimatic height gauge is very precise and reliable, and offers you the following benefits:
- Its built-in ABSOLUTE linear encoder means you don‘t have to set the reference point at every power-on, improving reliability as over-speed errors cannot occur.
- It comes with a large and smooth-acting slider hand wheel
- A carbide-tipped scriber is provided.
- SPC data output.
Specifications
| Range (mm) | 0 - 600 mm |
|---|---|
| Type of Product | Digimatic Height Gauge |
| Maximum Permissible Error J MPE | ±0.05 mm |
| Mass | 6.4 kg |
| Scale | ABSOLUTE electrostatic linear encoder |
| Max. response speed | Unlimited |
| Digital step | 0.01 mm |
| Display | LCD, Character Height 10 mm |
| Power supply | 1 battery SR-44 |
| Battery life | approx. 20000 hours |
| Delivered | Including 1 battery, scriber and scriber clamp |
| ORIGIN | Yes |
| ZERO/ABS | Yes |
| ON/OFF | Yes |
| DATA (output with cable) / HOLD (display value) | Yes |
| Low voltage alarm | Yes |
| Data output | Yes |
| Digital/Analog | Digital |
| Inch-Metric | Metric |
