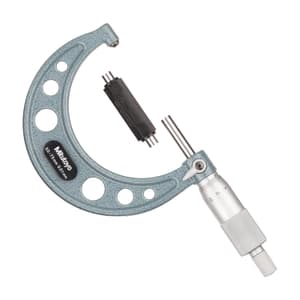

Mitutoyo 75 - 100 mm Spherical Anvil Tube Micrometer (Type E), 115-118
Roll over the image to zoom in
Key Features
- Product Type: Tube Micrometer
- Weight: 375 g
- Range (mm): 75 - 100 mm
- Graduation (mm): 0.01 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,868 (Incl. of all taxes)
₹4,973 + ₹895 GST (18%)
MRP was MRP ₹6,630
Save 25%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
This Tube Micrometer allows you to measure curved surfaces such as the wall thickness of tubes, bearings and rings.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Carbide-tipped spindle and anvil ensure durability and wear resistance
- Ratchet-stop mechanism provides uniform measuring pressure for accuracy
- Specially designed for checking wall thickness across various tubing types

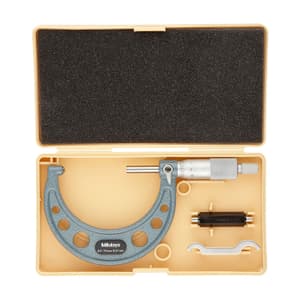

Package Content:
- Tube Micrometer
- Spanner
- Setting Standard
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 75 - 100 mm |
|---|---|
| Graduation (mm) | 0.01 mm |
| Max. Permissible Error (JPME) | ±4μm |
| Diameter (mm) | Ø18 mm |
| Measuring Force | 5 - 10 |
| Flatness | 0.6μm |
| Anvil / Spindle | Type E (Spherical Anvil SR=4 mm / Flat Spindle) |
| Measuring Spindle | With Spindle Lock, ø6.35 mm, Spindle Pitch 0.5 mm |
| Scale Finishing | Thimble & Sleeve Satin Chrome Finish, ø18 mm |
