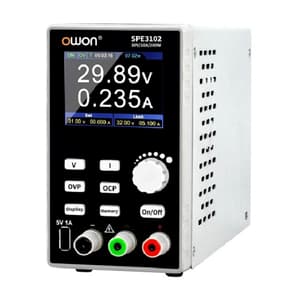

Owon 0 - 30V / 0 - 10A Programmable DC Power Supply (SMPS), SPE 3102
Roll over the image to zoom in
Key Features
- Product Type: Power Supply
- Type of Product: Programmable DC Power Supply
- Output Voltage: 0 - 30V
- Output Current: 0 - 10A
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹9,773 (Incl. of all taxes)
₹8,282 + ₹1,491 GST (18%)
MRP was MRP ₹10,100
Save 18%
5 Business Days
1
85044090
Download Product LeafletNot available
Download OWON CatalogueNot available
Download OWON CatalogueNot available

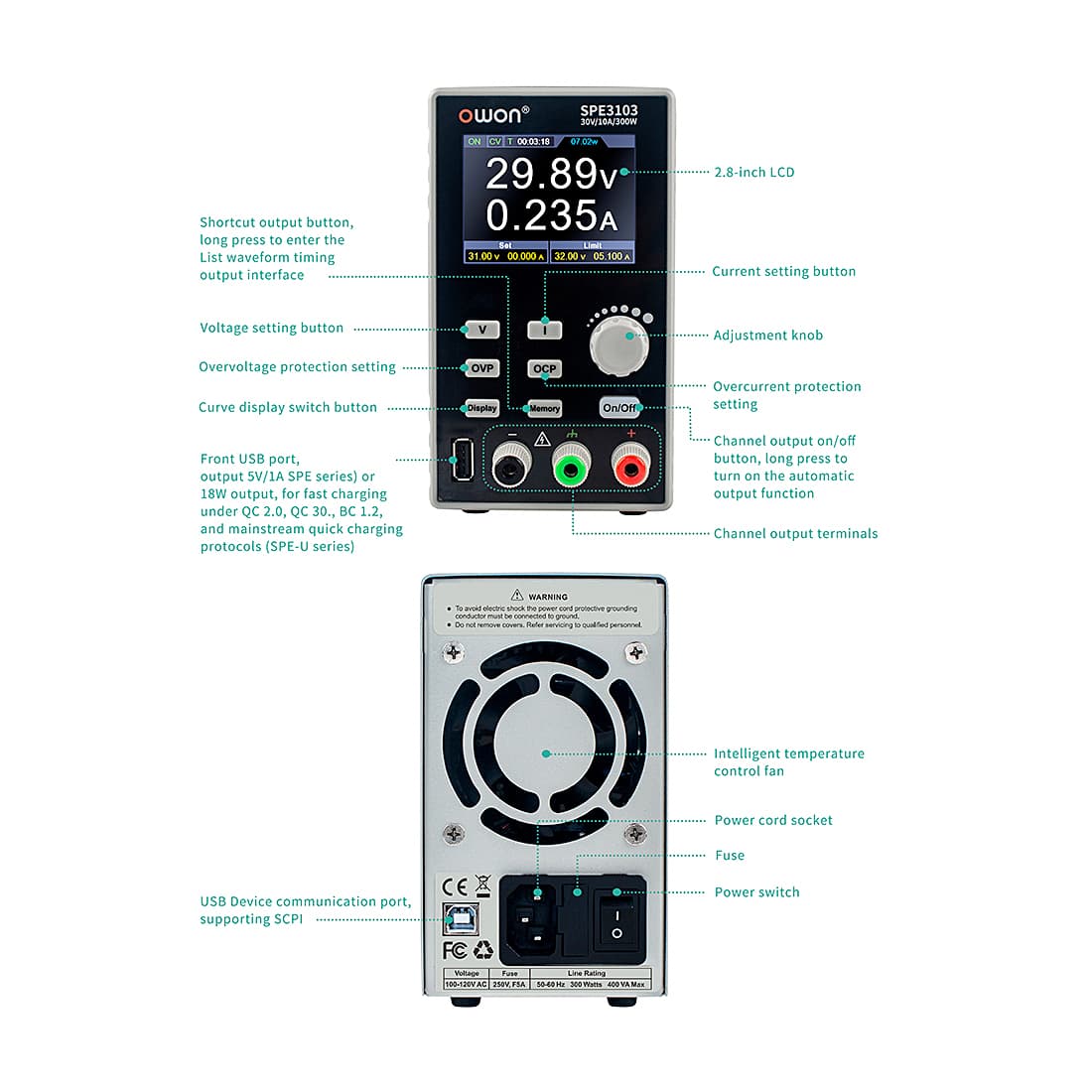

Highlights

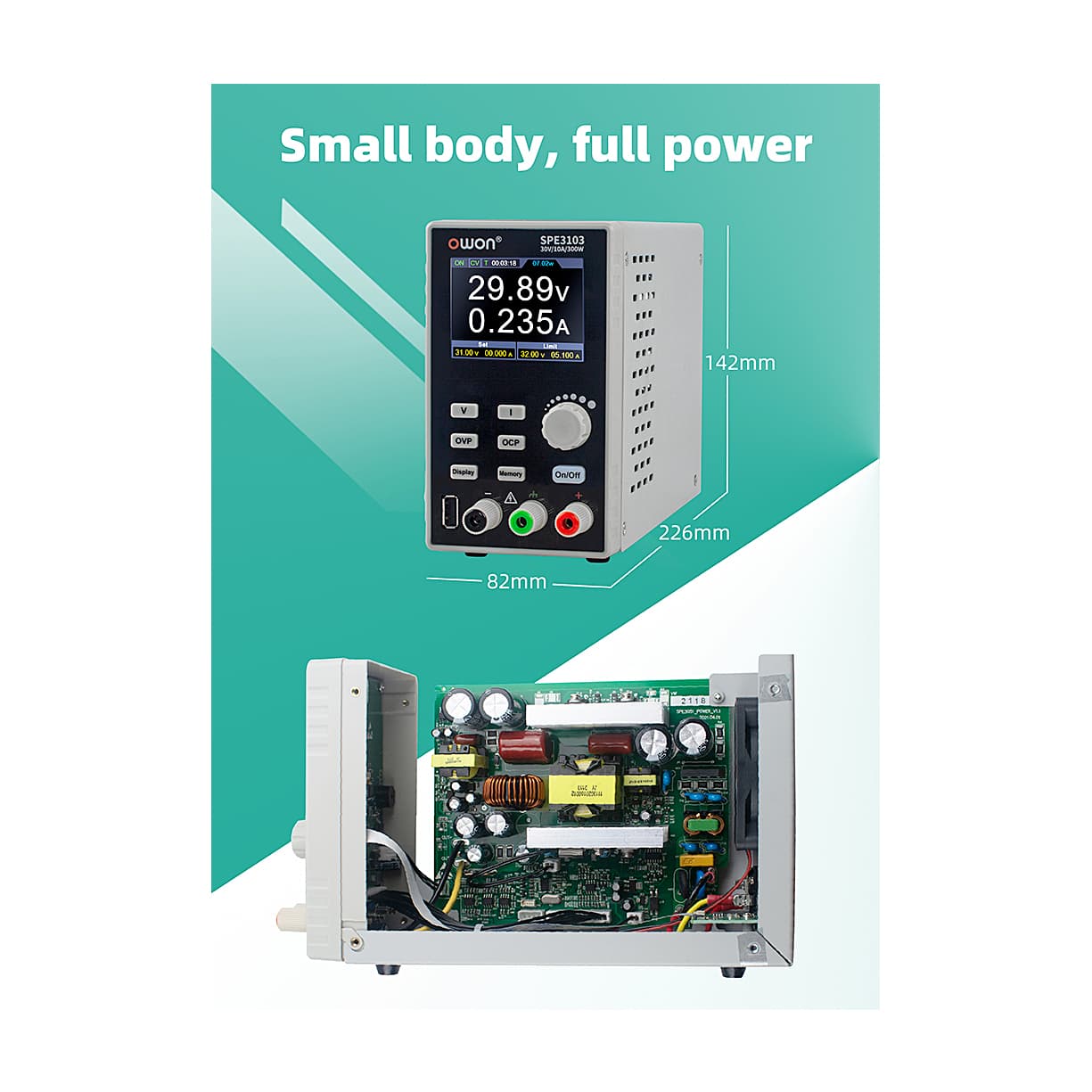

- Small body for easy carry

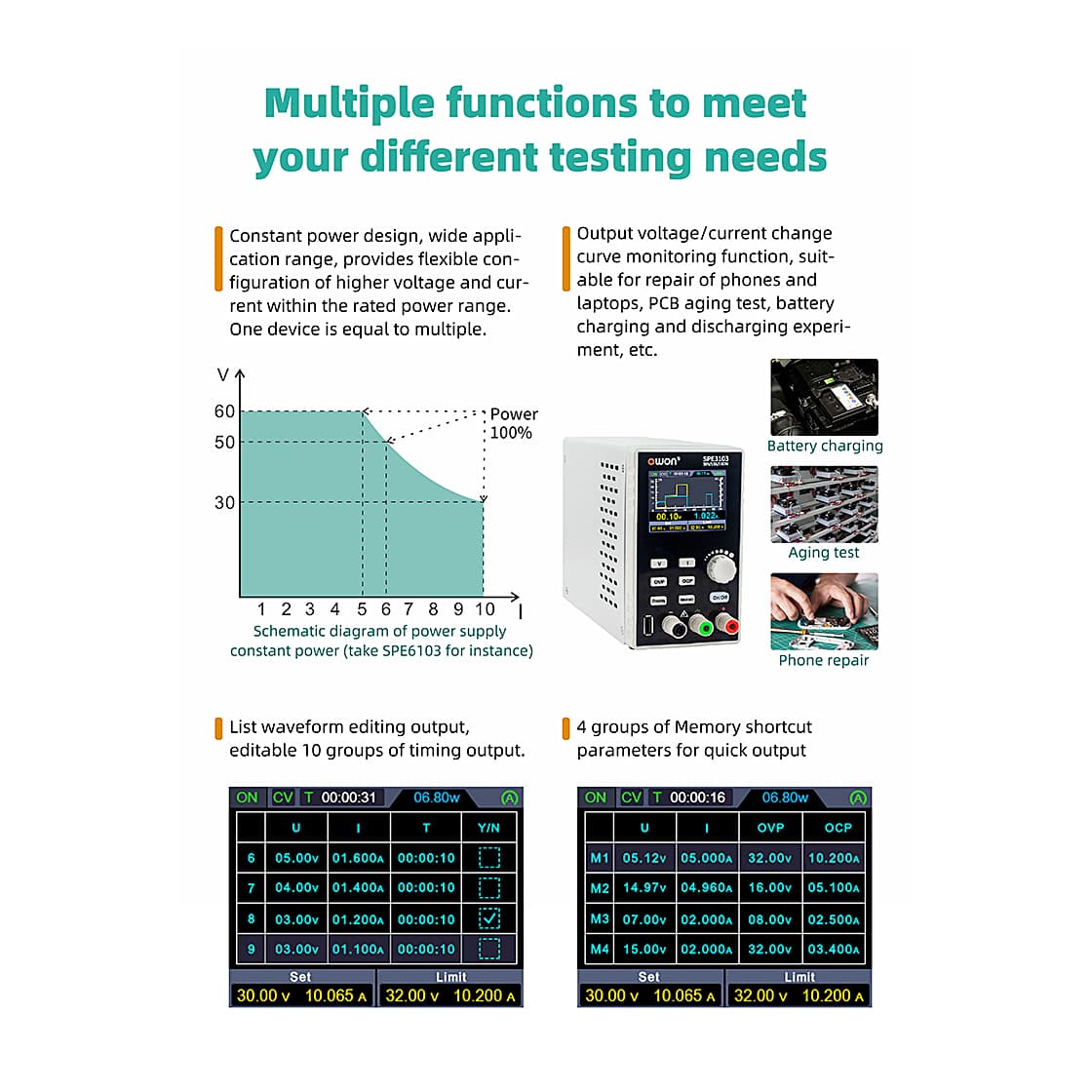

- List waveform editing output, editable 10 groups of timing output function

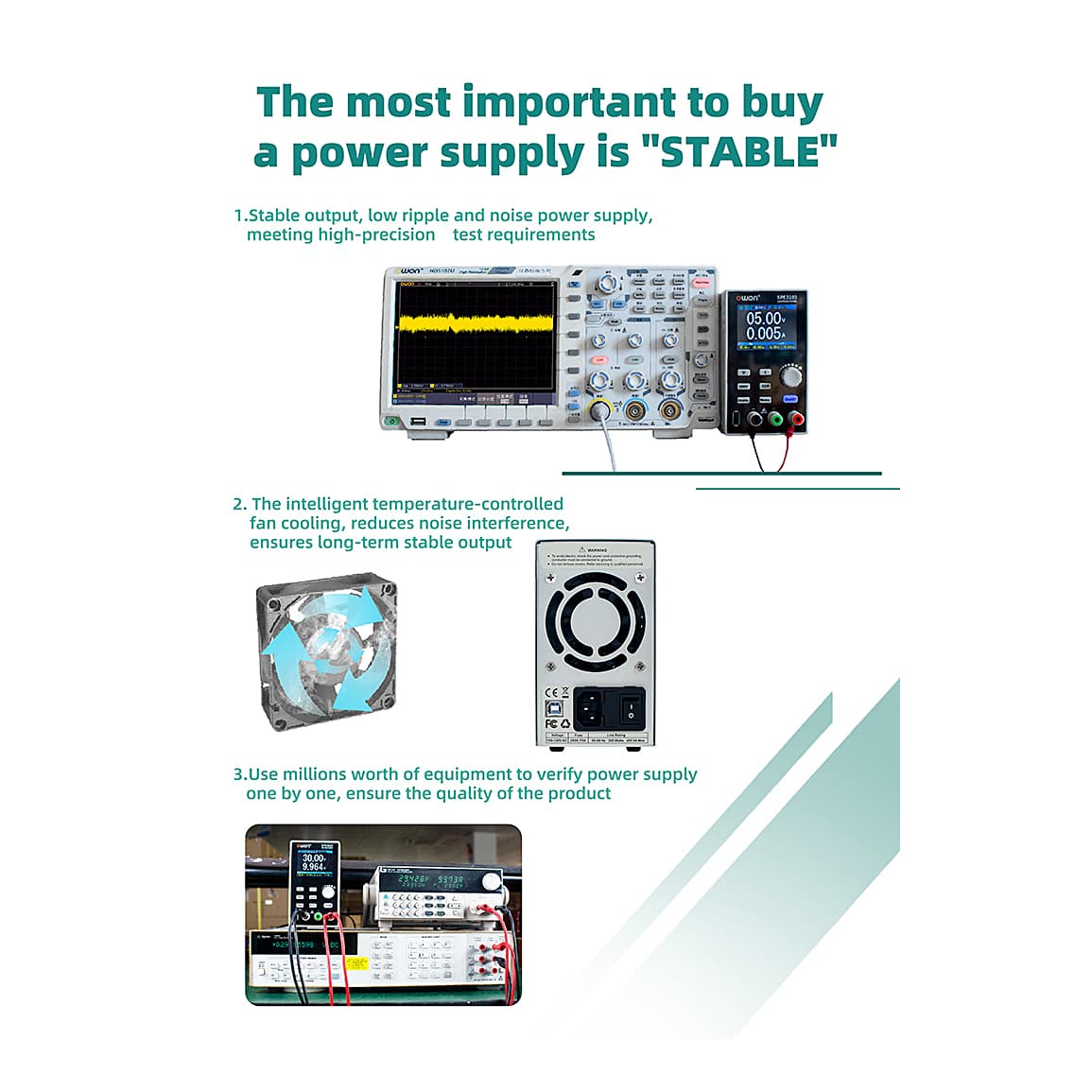

- Low ripple / noise

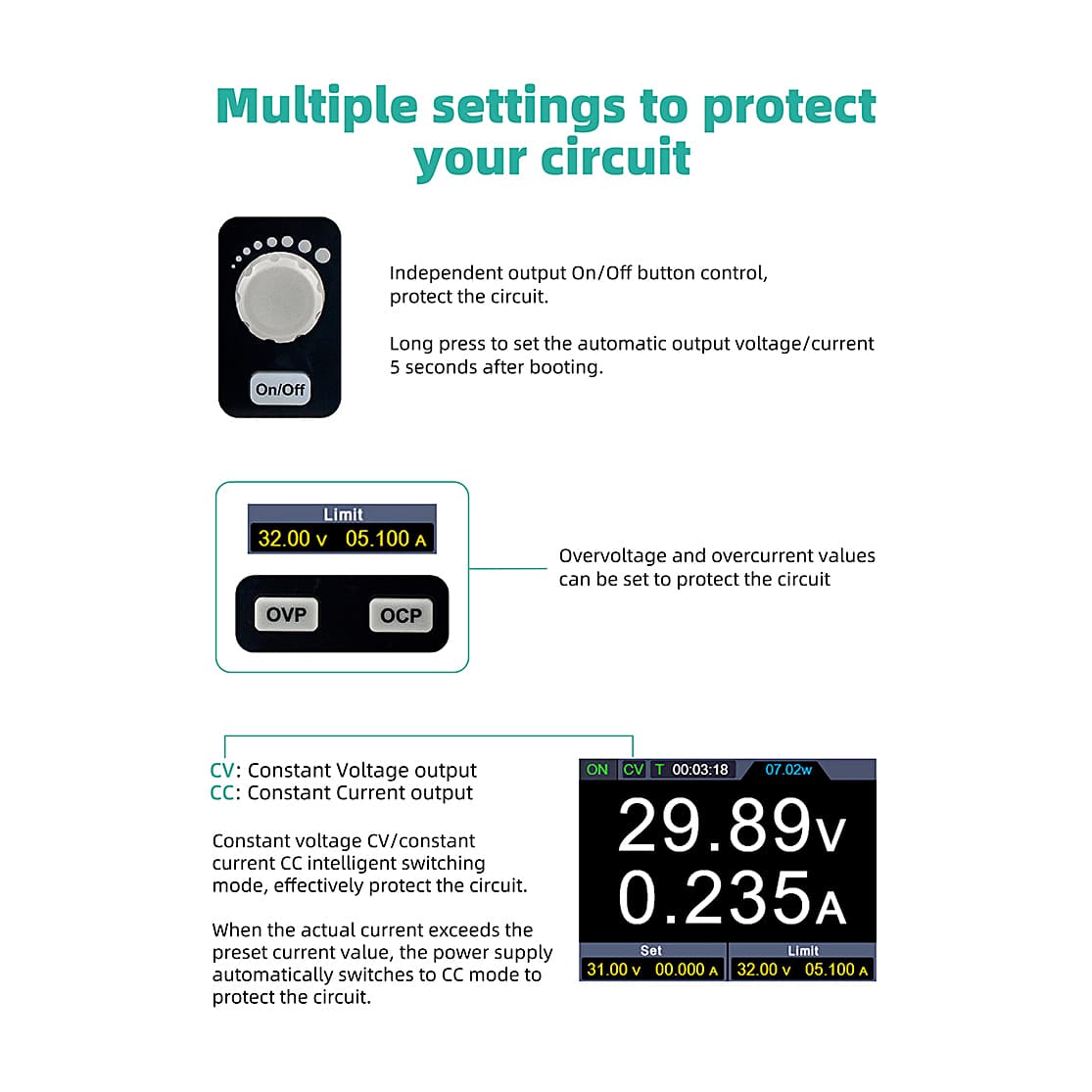

- Over voltage / over current protection
- Output voltage and current curve monitoring function
- Intelligent temperature control fan cooling

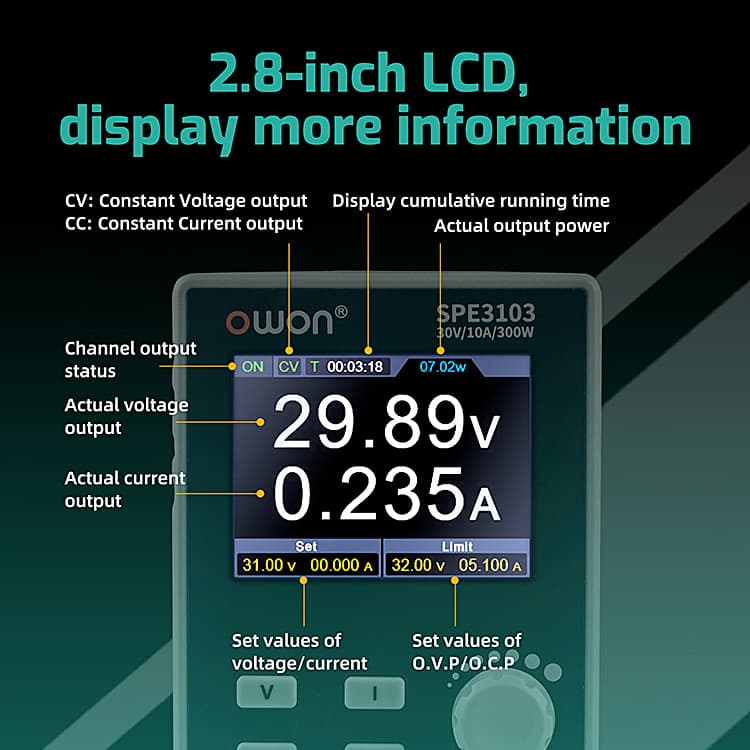

- 2.8-inch TFT LCD display
- USB communication interface, support SCPI
 |
 |
 |
 |
Technical Data:
|
Load Regulation |
Voltage |
≤30mV |
|
Current |
≤20mA |
|
|
Power Regulation |
Voltage |
≤30mV |
|
Current |
≤20mA |
|
|
Setting Resolution |
Voltage |
10mV |
|
Current |
1mA |
|
|
Readback Resolution |
Voltage |
10mV |
|
Current |
1mA |
|
|
Value Resolution (within 12 months) (25°C±5°C) |
Voltage |
≤0.1% ± 20mV |
|
Current |
≤0.05% ± 10mA |
|
|
Readback Value Resolution (25°C±5°C) |
Voltage |
≤0.1% ± 20mV |
|
Current |
≤0.1% ± 10mA |
|
|
Ripple/Noise (*) |
Voltage(Vp-p) |
≤30mVp-p |
|
Voltage (rms) |
≤3mVrms |
|
|
Current (rms) |
≤30mAp-p |
|
|
Output temperature coefficient (0°C-40°C) |
Voltage |
100ppm/°C |
|
Current |
200ppm/°C |
|
|
Readback temperature coefficient |
Voltage |
100ppm/°C |
|
Current |
200ppm/°C |
Package Content:
- Programmable DC Power Supply (SMPS)
- Power Cord
- Quick Guide
- Fuse
- USB Cable
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Type of Product | Programmable DC Power Supply |
|---|---|
| Output Voltage | 0 - 30V |
| Output Current | 0 - 10A |
| Channel | 1 |
| Output Power | 200W |
| Response Time (50%-100% Rated Load) | < 1.0ms |
| Storage | 4 Groups of Data |
| Working Temperature | 0 - 40°C |
| USB Output | 5V/1A (SPE Series) or suppout QC2.0, QC3.0, BC1.2, Apple, Huawei, Samsung fast charging protocols (optional) |
