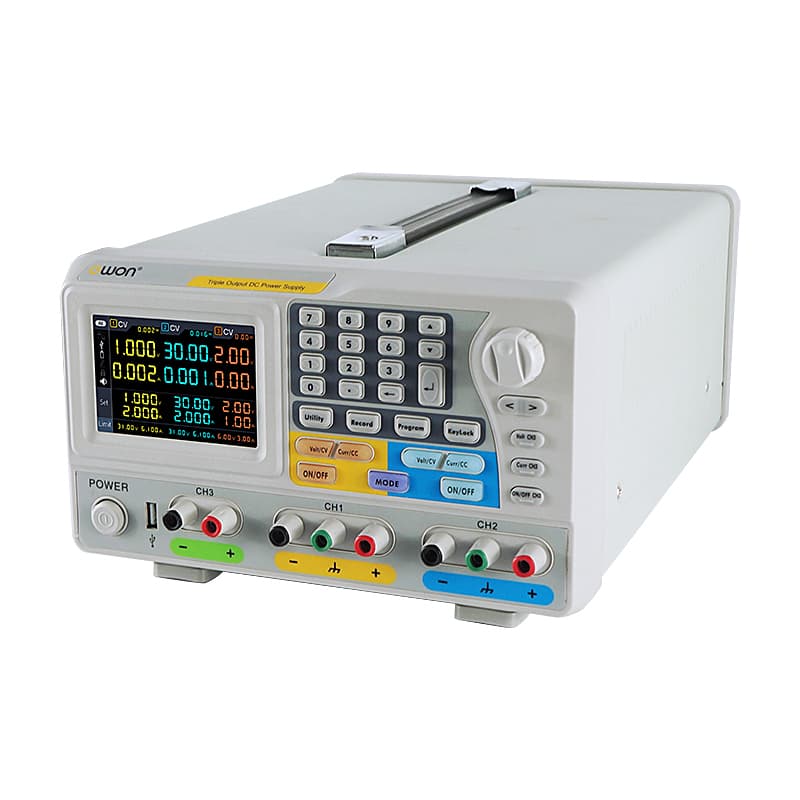

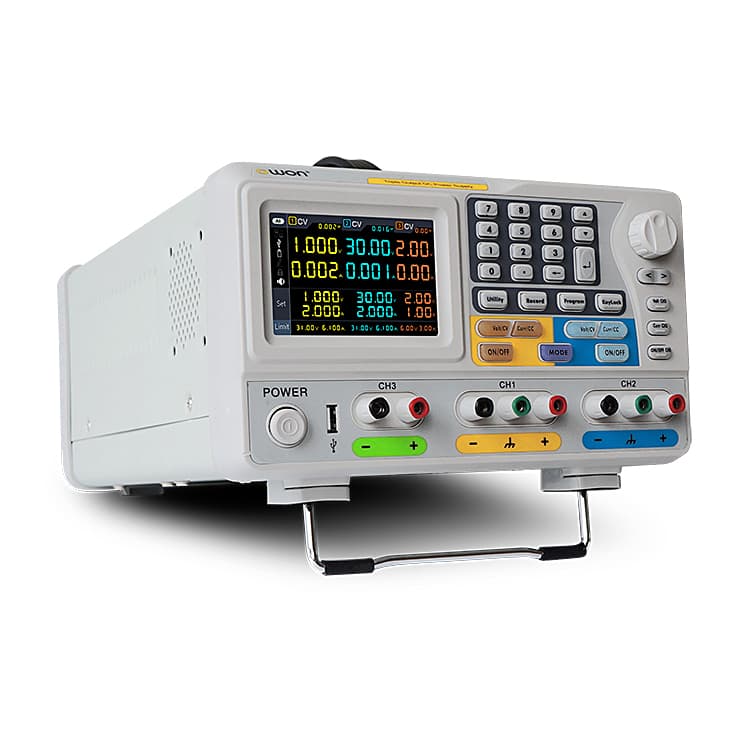

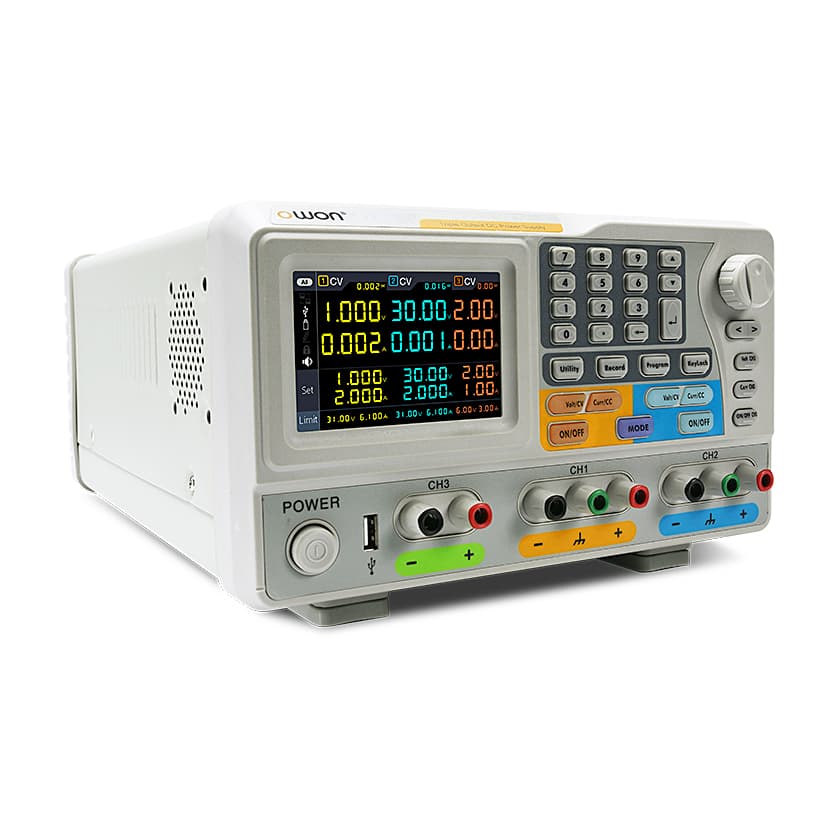

Owon 0 - 30V / 0 - 3A Programmable DC Power Supply, ODP 3033

Shop all OWON

SKU: ME.EL.PO.00100

Model: ODP3033

Roll over the image to zoom in

Visit OWON Store

Key Features

  • Product Type: Power Supply
  • Weight: 9.8 kg
  • Type of Product: Programmable DC Power Supply
  • Output Voltage: 0 - 30V
  • Output Current: 0 - 3A
  • Channel: 3 (Independent Controllable Channel)
See all product information

ToolBuy Benefits

₹38,123 (Incl. of all taxes)

₹32,308 + ₹5,815 GST (18%)

MRP was MRP ₹39,400

Save 18%

5 Business Days

1

85044090

Download Product LeafletNot available
Download OWON CatalogueNot available

Highlights

  • Three independent controllable channels
  • Low ripples / low noise
  • Up to 100 group timers
  • Multi-working mode: individual, parallel and series
  • Over-voltage / Over-current protection
  • Data-logging function: Could record the output voltage and current and display recorded data in chart
  • Auto-cooling system
  • 4 inch high resolution (480 × 320 pixels) LCD

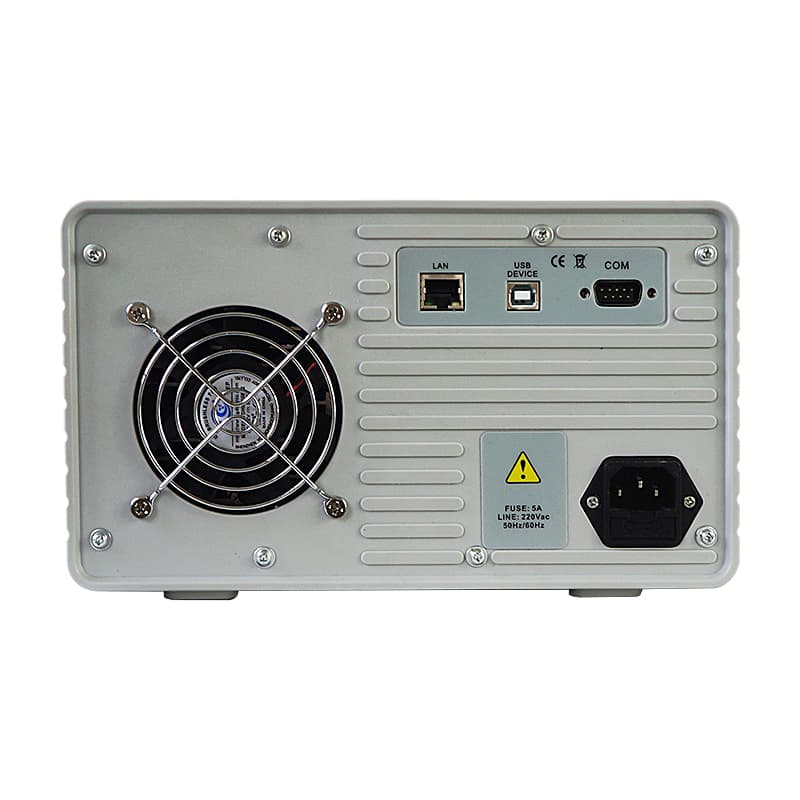

  • Multi-CI: USB, RS232 and LAN
  • SCPI and LabVIEW are supported

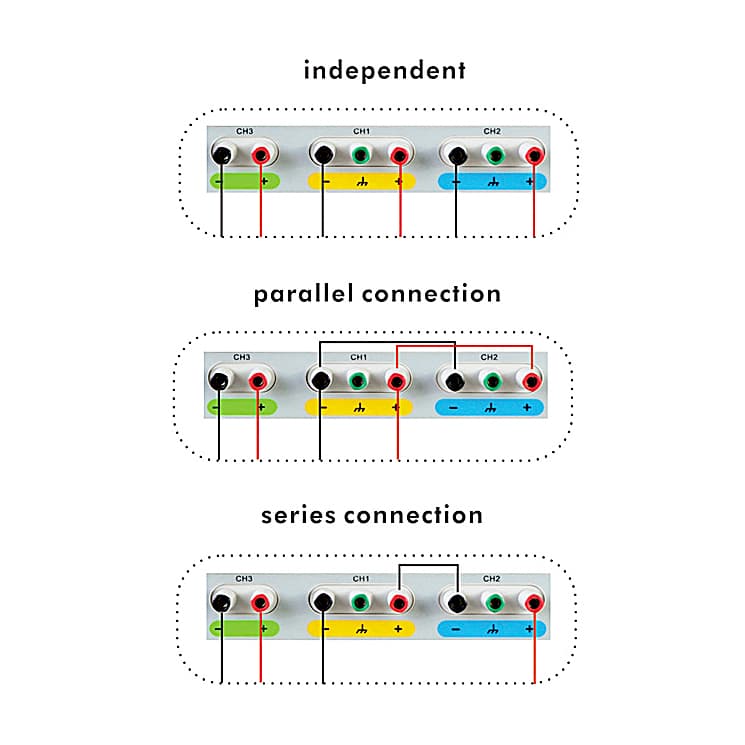

Triple Output: 3 independent channels
function as 3 power supply unit; via parallel / series connection, the power output range of 1 channel could be wider.

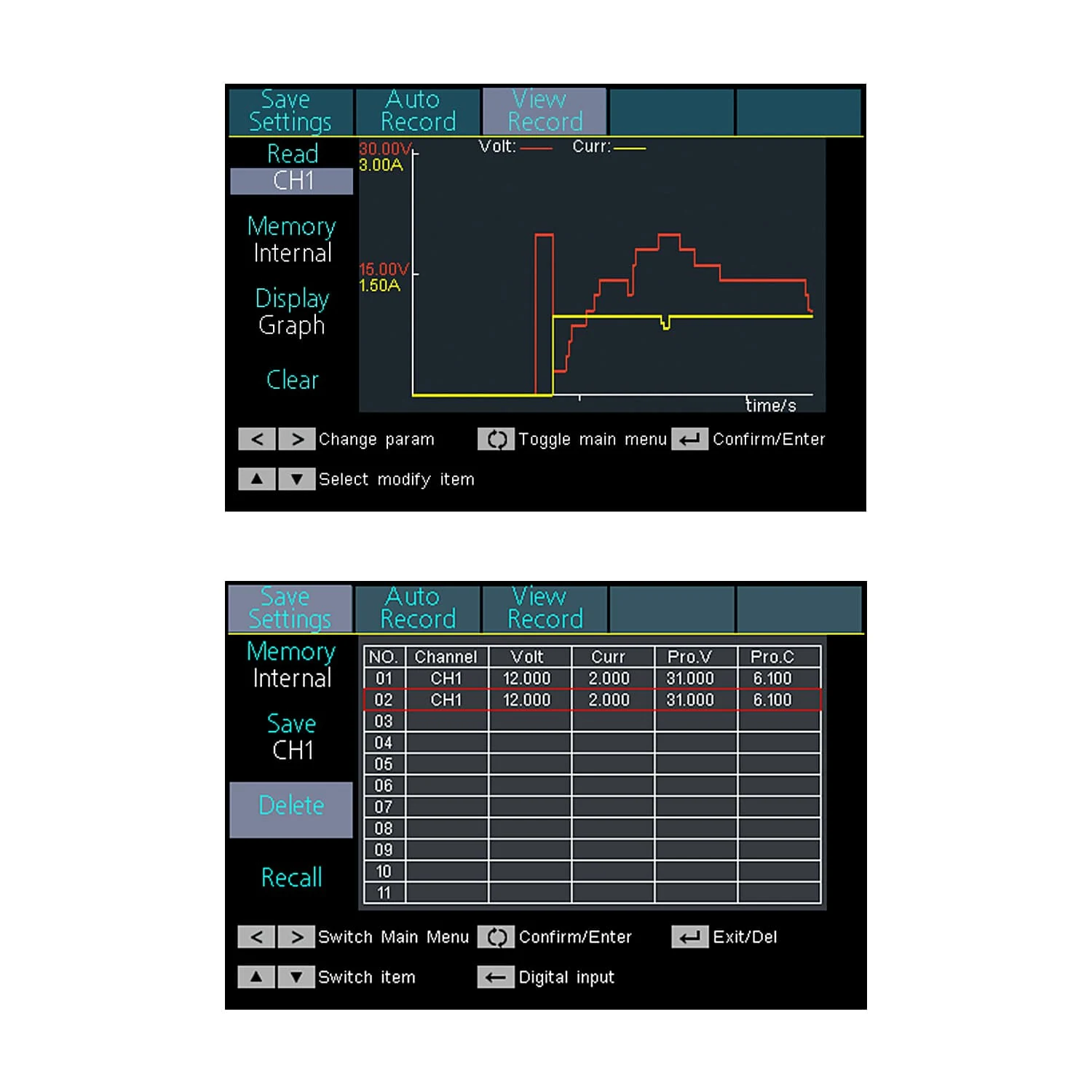

Creative Data Recording Function
to monitor the changing status of powering system, displaying recorded data in chart. E Low Ripples / Low Noise

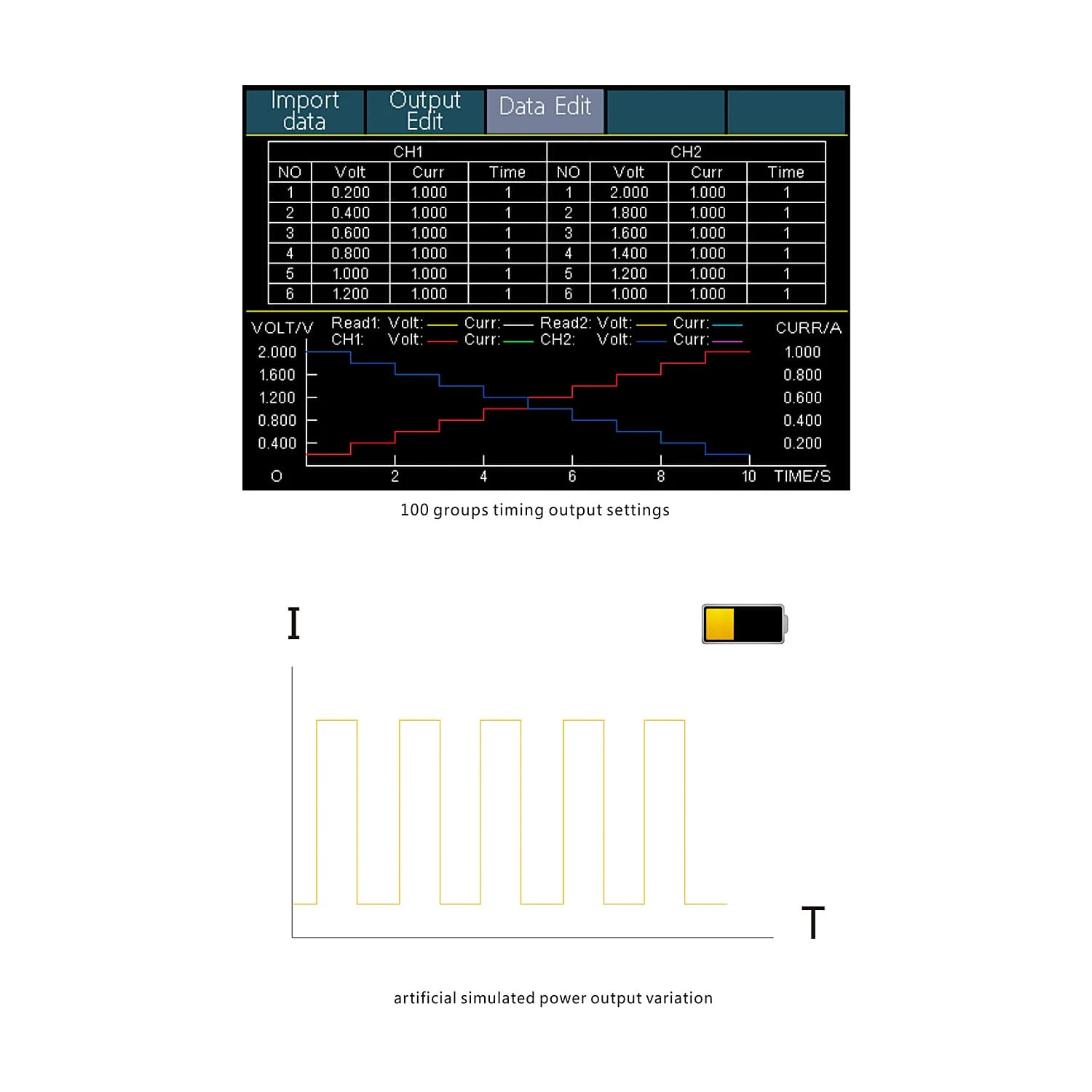

Timing Output
Support 100 groups timing output settings, the power output curve could be adjusted via PC, or device itself. And applicable to artificial simulated power output variation.
CV / CC Auto-switch
  • Along with load varies, the power output auto-switches between CV / CC.
  • Give an operation example, in the circumstance you set a voltage of 10V at a current of 1A,
  • when actual current not larger than 1A, the power supply unit works under CV status,
  • the power output alters with load accordingly; whereas when actual current larger than 1A,
  • the power supply unit will limit the current automatically, and switch into CC mode,
  • then the power output alters with load accordingly.
  • CV / CC auto-switch fulfills within power supply unit, no human intervention needed.

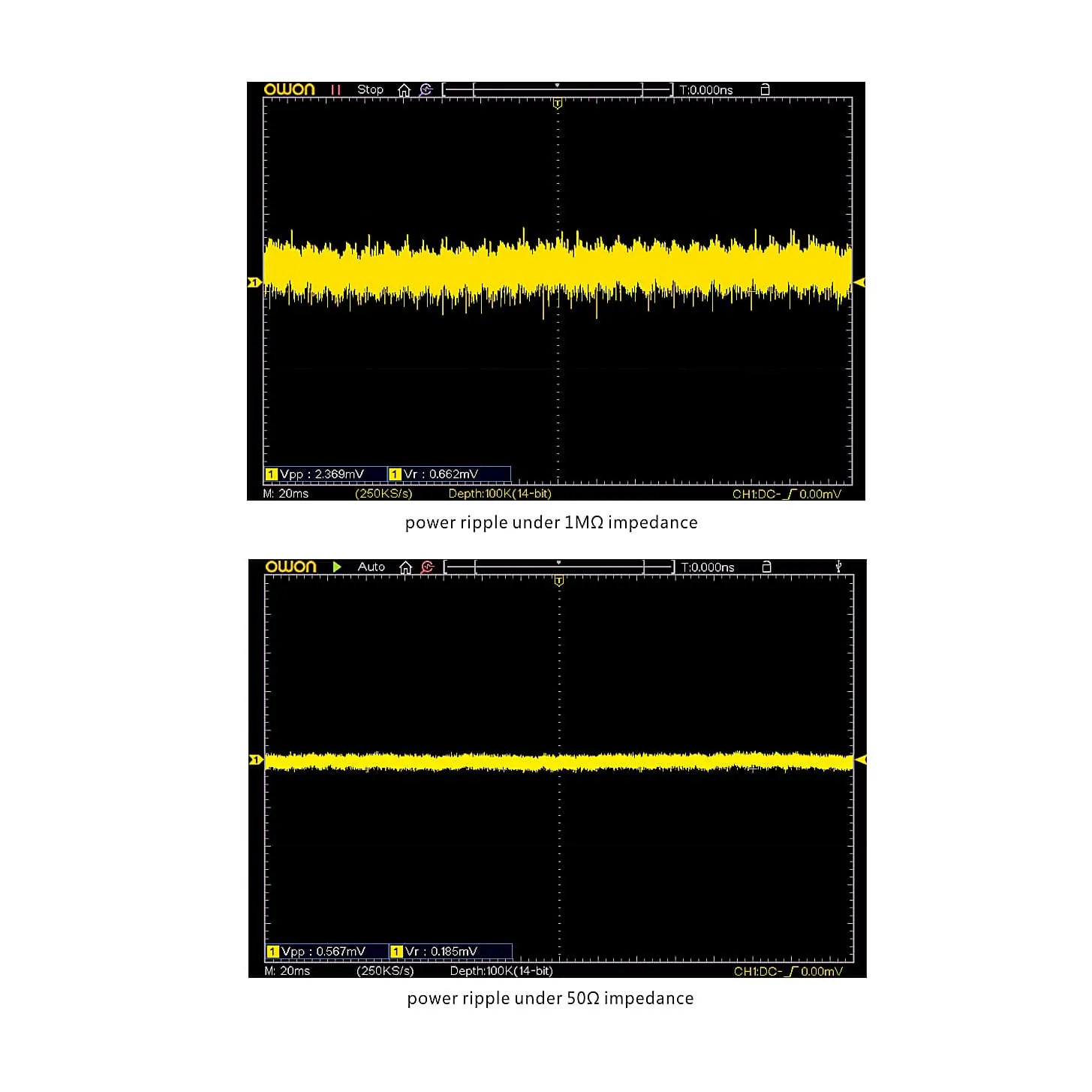

Low Ripples / Low Noise
OWON ODP features super- low ripples, and super- low noise, which causes almost no influences to circuit test.


Technical Data:

Load Regulation Voltage ≤0.01% + 3mV
Current ≤0.01% + 3mA
Line Regulation Voltage ≤0.01% + 3mV
Current ≤0.01% + 3mA
Settings Resolution Voltage 1mV
Current 1mA
Read Back Resolution Voltage 1mV
Current 1mA
Settings Accuracy (25°C ± 5°C) (within 12 months) Voltage ≤0.03% + 10mV
Current ≤0.1% + 8mA
Read Back Accuracy (25°C ± 5°C) Voltage ≤0.03% + 10mV
Current ≤0.1% + 8mA
Noise & Ripple (20Hz - 20MHz) Voltage (Vp-p) ≤4mVp-p
Voltage (rms) ≤1mVrms
Current (rms) ≤5mArms
Output Temperature Coefficient (0°C - 40°C) Voltage ≤0.03% + 10mV
Current ≤0.1% + 5mA
Read Back Temperature Coefficient Voltage ≤0.03% + 10mV
Current ≤0.1% + 5mA
Parallel Settings Accuracy Voltage ≤0.02% + 5mV
Current ≤0.1% + 30mA


Package Content:

  • Programmable DC Power Supply
  • Power Cord
  • CD Rom
  • Quick Guide
  • USB Cable
  • Fuse
  • Test Leads (Optional)

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Owon 0 - 30V / 0 - 3A Programmable DC Power Supply, ODP 3033
Type of ProductProgrammable DC Power Supply
Output Voltage0 - 30V
Output Current0 - 3A
Channel3 (Independent Controllable Channel)
Max. Output Power198W
Programmable Output100 Groups (Storage) / Second (Time Setting)
Data Recording10 K groups of voltage & current data recording capacity
Working Temperature0 - 40°C
LCD Type4 inch colored LCD
Display Resolution480 x 320 Pixels, 65536 Colors
Dimensions (W x H x D)250 x 158 x 358 mm
