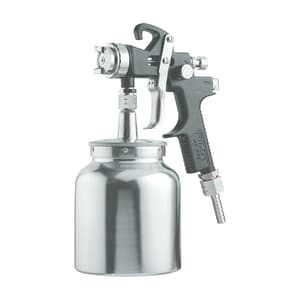

Pilot 1 Ltr High Performance Spray Gun with Bottom Feed Cup, HP-P70
Roll over the image to zoom in
Key Features
- Product Type: Spray Gun
- Weight: 983 g
- Application: High Performance
- Cup Capacity: 1 Ltr
- Required Pressure: 2.5-5 kgs/Sq.cm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,359 (Incl. of all taxes)
₹2,847 + ₹512 GST (18%)
MRP was MRP ₹3,650
Save 22%
Out of Stock
2 Business Days
1
84242000
Download Product LeafletNot available
Download Pilot CatalogueNot available
Download Pilot CatalogueNot available
Highlights
Evolution Series Spray Guns are intelligently designed to provide the user with their spray coating requirements. The HVLP Spray Guns are used for more efficient application resulting in higher transfer efficiency, reduced overspray, material consumption and pollution, while HP Spray Guns integrate the benefits of HVLP & Legacy Series ensuring high quality finishing and transfer efficiency.
- Large surface area coverage.
- Symmetric & durable suction feed cup.

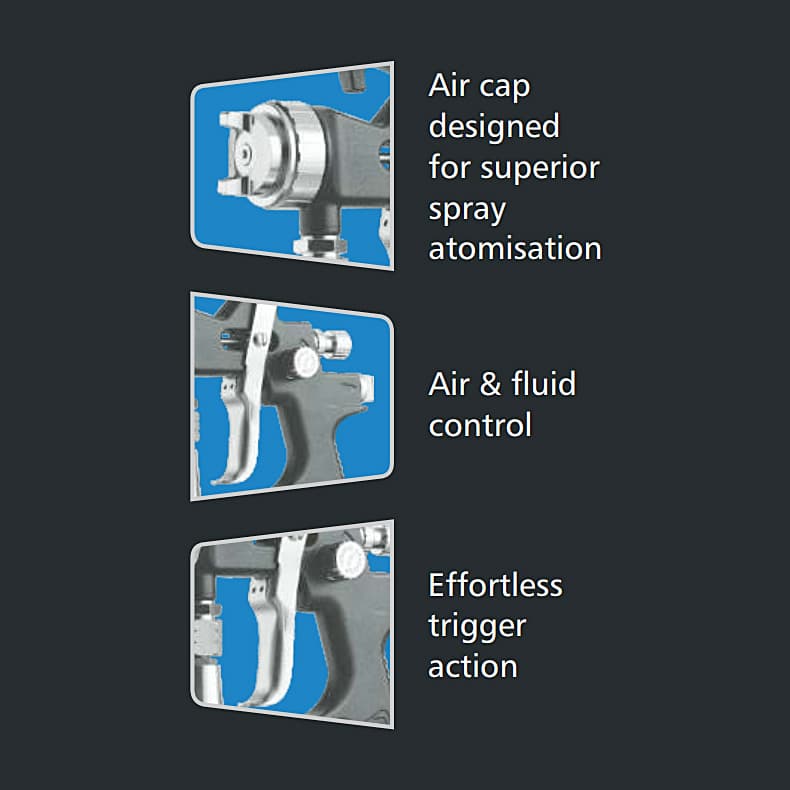

- Superior air cap performance.
- Built-in air & spreader control for finer adjustment.
- Optimum for high speed production.
- Compatibility with pressure feed tanks.
Areas of Application:
 |
Railways |
 |
Ship-Building |
 |
Automobiles |
 |
Industries |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Application | High Performance |
|---|---|
| Cup Capacity | 1 Ltr |
| Gun Distance From Workpiece | 228.6 mm / 9 inch |
| Fluid Nozzle Orifice Dia. | 1.7 mm |
| Required Pressure | 2.5-5 kgs/Sq.cm |
| Material Output | 200 cc/min |
| Max. Pattern Width | 360 mm |
| Min. Air-Compressor | 2 HP |
| Air Consumption of Rated Pressure | 200-283 lit/min (7-10 c.f.m) |
