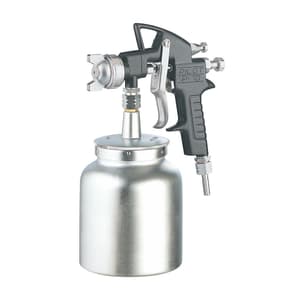

Pilot 1 Ltr High Pressure Conventional Spray Gun with Bottom Feed Cup, Type P-70
Roll over the image to zoom in
Key Features
- Product Type: Spray Gun
- Weight: 973 g
- Application: High Pressure
- Cup Capacity: 1 Ltr
- Required Pressure: 2.5-5 kgs/Sq.cm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,359 (Incl. of all taxes)
₹2,847 + ₹512 GST (18%)
MRP was MRP ₹3,650
Save 22%
2 Business Days
1
84242000
Download Product LeafletNot available
Download Pilot CatalogueNot available
Download Pilot CatalogueNot available
Highlights
The Legacy Series consists of PILOT’s Iconic range of Spray Guns which typically operate at higher air pressures and are used for coating any type of surface/object. High air pressure results in super fine atomization resulting in a smoother & high quality spray finish.
- Iconic design & performance.
- Large surface area coverage.
- Symmetric & durable suction feed cup.

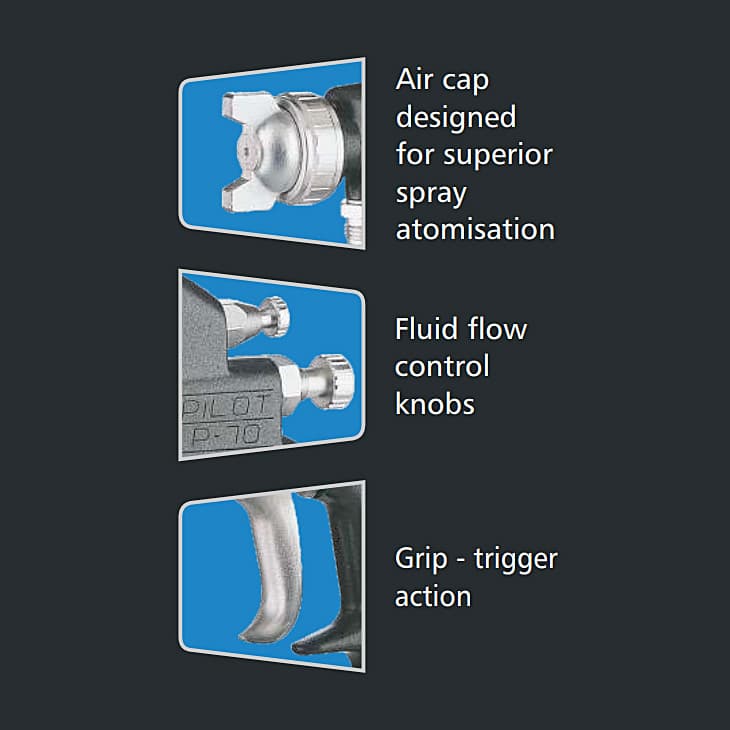

- Superior air cap performance.
- Built-in spreader control for round & fan flow patterns.
- Optimum for high speed production.
- Compatibility with pressure feed tanks.
Areas of Application:
 |
Automobiles |
 |
Industries |
 |
Railways |
 |
Ship-building |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Application | High Pressure |
|---|---|
| Cup Capacity | 1 Ltr |
| Gun Distance From Workpiece | 228.6 mm / 9 inch |
| Fluid Nozzle Orifice Dia. | 1.7 mm |
| Required Pressure | 2.5-5 kgs/Sq.cm |
| Material Output | 200 cc/min |
| Max. Pattern Width | 300 mm |
| Min. Air-Compressor | 2 HP |
| Air Consumption Of Rated Pressure | 200-283 lit/min (7-10 c.f.m) |
