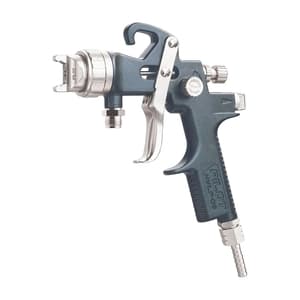

Pilot High Volume Low Pressure Spray Gun without Cup, HVLP-08
Roll over the image to zoom in
Key Features
- Product Type: Spray Gun
- Weight: 673 g
- Application: High Volume Low Pressure
- Required Pressure: 2-4 kgs/Sq.cm
- Max. Pattern Width: 430 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,125 (Incl. of all taxes)
₹2,648 + ₹477 GST (18%)
MRP was MRP ₹3,395
Save 22%
2 Business Days
1
84242000
Download Product LeafletNot available
Download Pilot CatalogueNot available
Download Pilot CatalogueNot available
Highlights
Evolution Series Spray Guns are intelligently designed to provide the user with their spray coating requirements. The HVLP Spray Guns are used for more efficient application resulting in higher transfer efficiency, reduced overspray, material consumption and pollution, while HP Spray Guns integrate the benefits of HVLP & Legacy Series ensuring high quality finishing and transfer efficiency.
- Large surface area coverage.

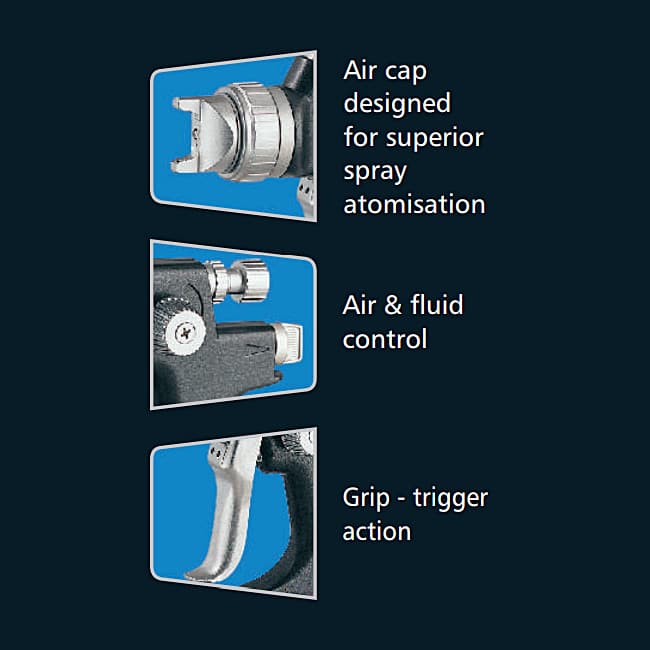

- Superior air cap performance.
- Built-in air & spreader control for finer adjustment.
- High transfer efficiency with minimum wastage.
- Compatibility with pressure feed tanks.
Areas of Application:
 |
Automobiles |
 |
Furniture |
 |
Industries |
 |
Sports |
 |
Textile |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Application | High Volume Low Pressure |
|---|---|
| Gun Distance From Workpiece | 200 mm / 8 inch |
| Fluid Nozzle Orifice Dia. | 1.3 mm |
| Required Pressure | 2-4 kgs/Sq.cm |
| Max. Pattern Width | 430 mm |
| Min. Air-Compressor | 2 HP |
| Air Consumption of Rated Pressure | 340-370 lit/min (12-13 c.f.m) |
