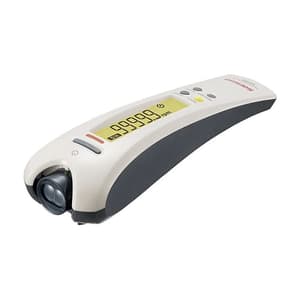

Sanwa 30.0 - 99999 RPM Non-contact Digital Rotational Tachometer, SE300
Roll over the image to zoom in
Key Features
- Product Type: Tachometer
- Weight: 218 g
- RPM Measurement Mode: 30.0 ~ 99999 RPM
- RPS Measurement Mode: 0.50~1600.0 RPS
- MS Measurement Mode: 0.600~1999.0
- Display: 99999 Count
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹19,010 (Incl. of all taxes)
₹16,110 + ₹2,900 GST (18%)
MRP was MRP ₹17,900
Save 10%
7 Business Days
1
–
Download Product LeafletNot available
Download Sanwa CatalogueNot available
Download Sanwa CatalogueNot available
Highlights
- Designed in pursuit of the ease of holding to enable stable measurement
- Long detection distance in non-contact measurement (max. approx.50 cm) enabling measurement from a distance from the rotating object
- Auto power OFF function (approx. 2 min., cancellation possible) and Bright backlight
- MAX/MIN display function
- Fixed installation possible using a commercially available camera tripod
 |
Max Min The maximum and minimum values are displayed and/or recorded |
 |
Auto Power Off Power is automatically turned off when a certain time has elapsed after power-up. Some models have a function to cancel this function. |
 |
Data Hold A value indicated on the display is fixed even after the test lead is removed, and can be used as a record for reference purposes. |
 |
Backlight Backlit Display allows indicator reading in a dark place. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| RPM Measurement Mode | 30.0 ~ 99999 RPM |
|---|---|
| RPS Measurement Mode | 0.50~1600.0 RPS |
| MS Measurement Mode | 0.600~1999.0 |
| Display | 99999 Count |
| Accuracy | ±(0.03%+1) |
| Sampling | Approx. 1 sec (rpm, rps, cycle, m/min, m/s) / Approx. 0.1 sec (Count) |
| Reflection Detection Distance | 50 to 500 mm |
| Power Supply | 2 x 1.5V (R6P/LR6) |
| Battery Life | Approx. 28 Hours |
| Dimensions (H x W x D) | 210 × 60 × 50 mm |
