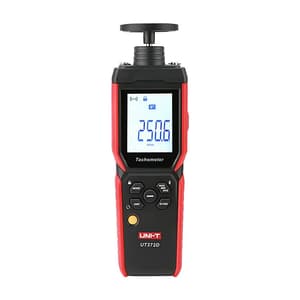

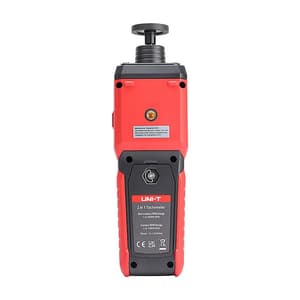

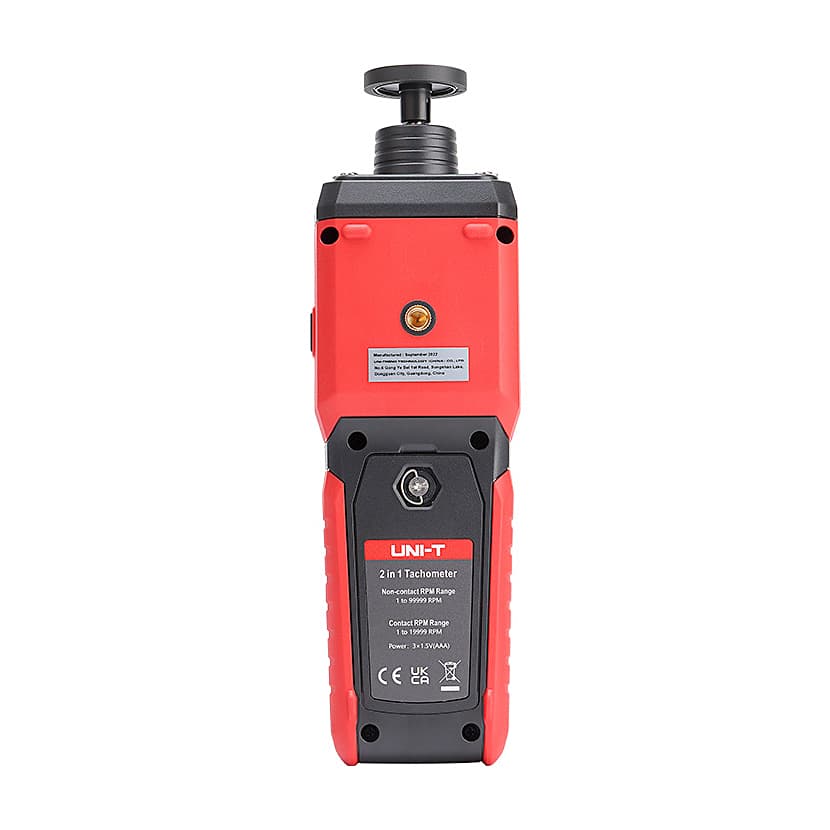

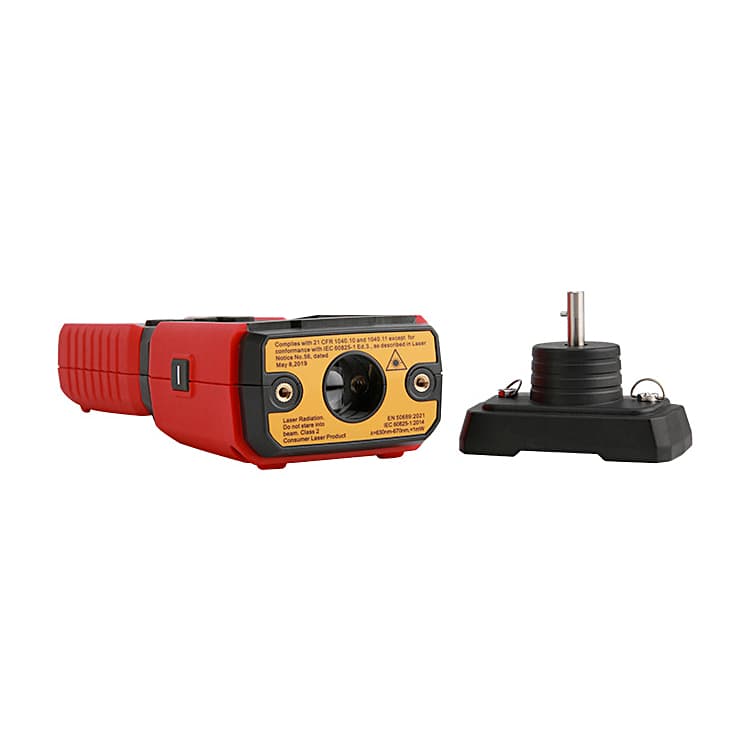

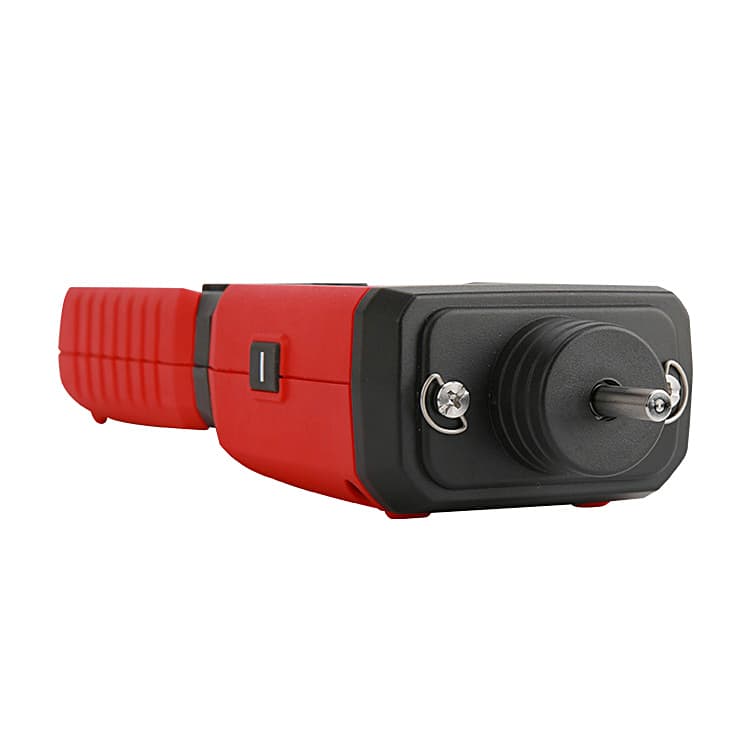

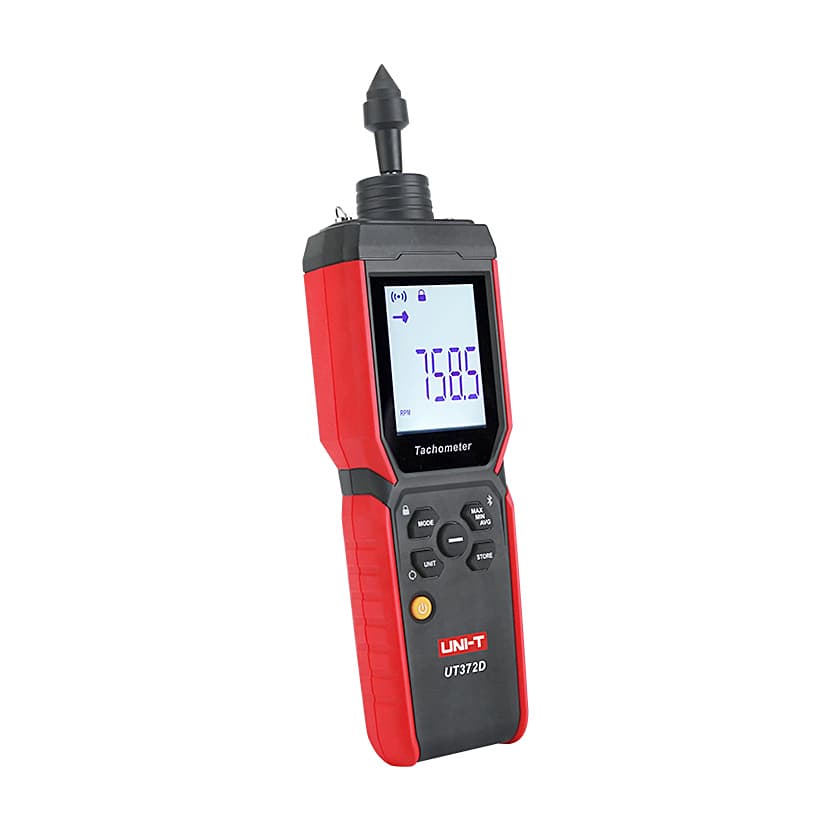

UNI-T 2 in 1 Digital Tachometer, UT372D
Roll over the image to zoom in
Key Features
- Product Type: Tachometer
- Weight: 181 g
- Rotational velocity Range (RPM): 1-99999 (Non-Contact) / 1-19999 (Contact)
- Frequency (HZ): 1-1666 Hz (Non-contact) / 1 - 333 Hz (Contact)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹8,726 (Incl. of all taxes)
₹7,395 + ₹1,331 GST (18%)
MRP was MRP ₹8,700
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
UT372D 2-in-1 Tachometer is a reliable and safe tachometer, which combines contact and non-contact measurement modes. It is mainly used to measure Revolutions Per Minute(RPM) , frequency, surface velocity and length in the fields of motors, fans, automobiles, papermaking, etc.
Features:
- Contact and non-contact measurements
- MAX/MIN/AVG/HOLD
- Rotatable LCD backlight screen
- Unit conversion
- Bluetooth APP
- Auto power off
- Data storage
- Two measurement buttons
- Measurement modes: Contact RPM / Non-contact RPM / counting / frequency / Surface velocity / length
- Contact measurement unit: m/min, ft/min, in/min,m,ft,in
Technical Data:
| Sepecification | Range | |
| Non-contact (optical) measurement | Rotational velocity (RPM) | 1 - 99999 |
| Frequency (HZ) | 1 - 1666 | |
| Count(REV) | 1 - 99999 | |
| Target distance | 50 ~ 500 mm | |
| Contact measurement | Rotational velocity (RPM) | 1 - 19999 |
| Frequency (HZ) | 1 - 333 | |
| Surface velocity | 0.1m wheel | |
| 0.1 - 1999 m/min | ||
| 0.4 - 6550 ft/min | ||
| 4 - 78700 in/min | ||
| 6-inch wheel | ||
| 0.15 - 1524m/min | ||
| 0.5 - 5000 ft/min | ||
| 6 - 60000 in/min | ||
| Length | 0 - 99999 (m/ft/in) |
Package Content:
- 1x 2 in 1 digital tachometer
- 3x 1.5V AAA Batteries
- User manual
- Quick Start Guide
- Safety instruction

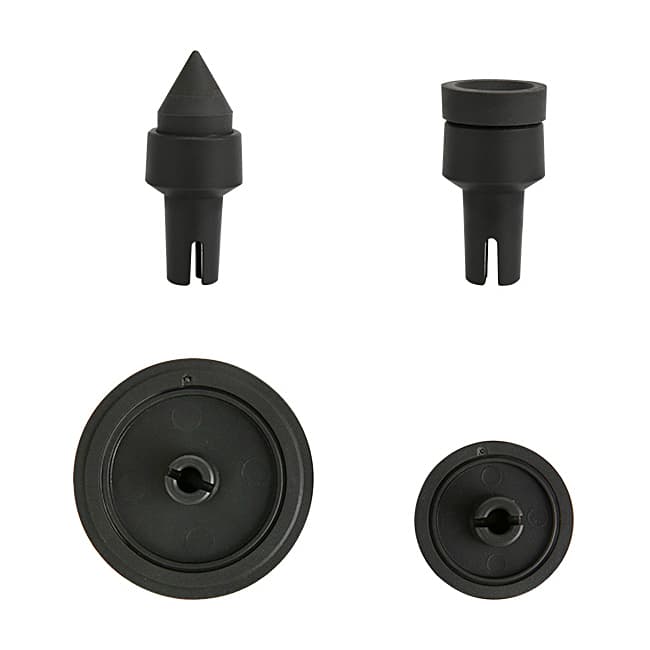

- Shaft contacts (cone/internal cone)
- Contact wheels (6in / 0.1m)
- Cloth bag
- Reflecting tape
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Rotational velocity Range (RPM) | 1-99999 (Non-Contact) / 1-19999 (Contact) |
|---|---|
| Frequency (HZ) | 1-1666 Hz (Non-contact) / 1 - 333 Hz (Contact) |
| Accuracy | ±0.02% ±1 Digit |
| Data Storage | 10 Groups |
| Bluetooth APP | iENV |
| Display | Rotatable LCD backlight screen |
| Operating Temperature / Humidity | 0°C ~ 50°C; <80%RH |
| Storage Temperature | -20°C ~ 60°C; <80%RH |
| Drop Test | 1 Meter |
| Auto Power Off | After about 15 minutes of inactivity |
| Certificates | CE, UKCA |
| Languages | EN, FR, DE, IT, ES, SV, PL, CZ |
| Power Supply | 3x 1.5V AAA Batteries |
| Dimensions (mm) | 176 × 63 x 38 mm |
