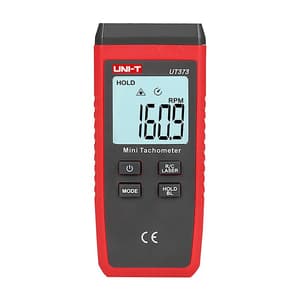

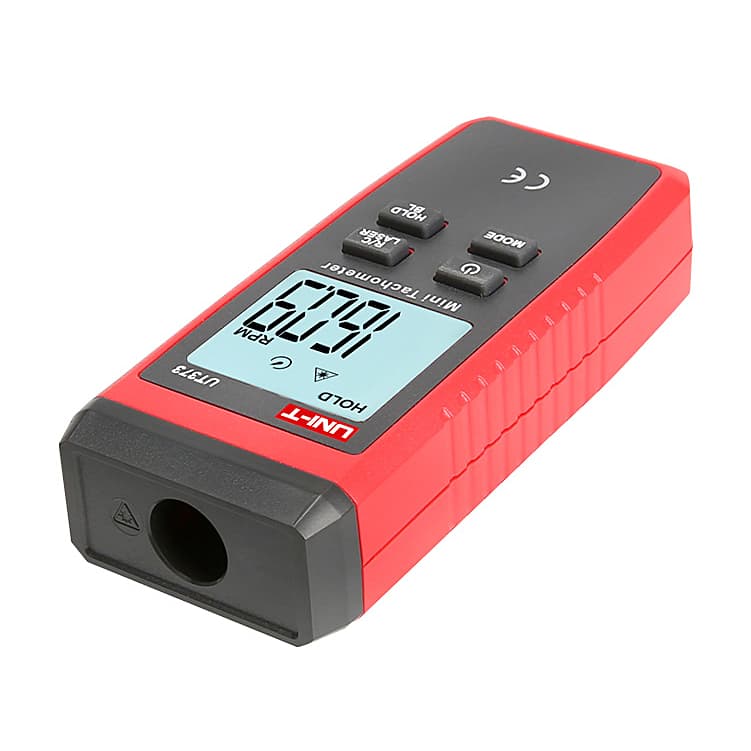

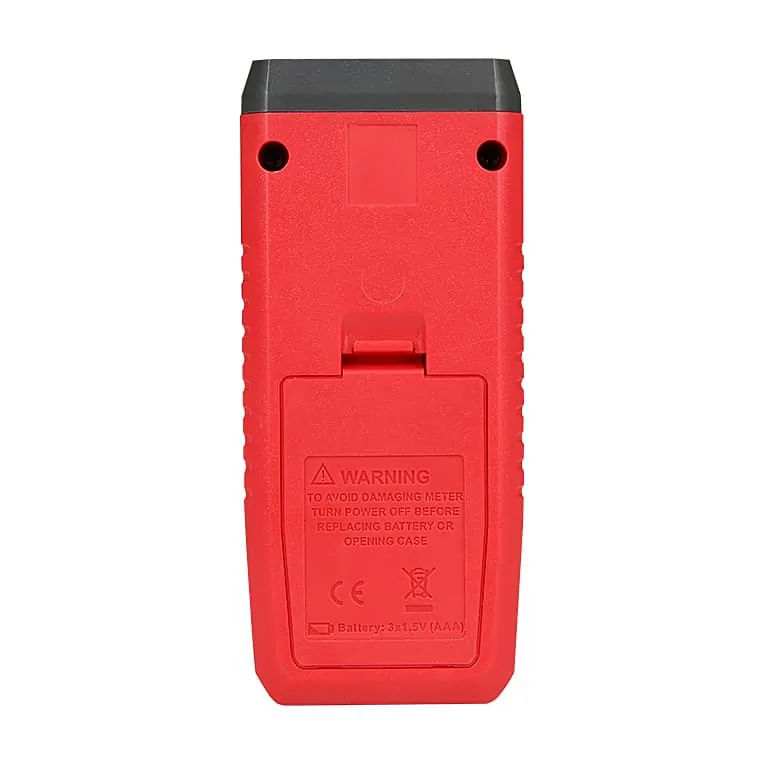

UNI-T 10 - 99999 RPM Non-Contact Digital Mini Tachometer, UT373
Roll over the image to zoom in
Key Features
- Product Type: Tachometer
- Weight: 85 g
- RPM measurement Range: 10.0 ~ 9999.9 RPM / 10000 ~ 99999 RPM
- RPM measurement Resolution: 0.1 / 1
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,856 (Incl. of all taxes)
₹1,573 + ₹283 GST (18%)
MRP was MRP ₹1,850
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
UT373 is a reliable digital non-contact tachometer used to measure rotation speed of motors and other machines. This device is able to display results in RPM or revolution count. UT373 is able to safely measure rotational objects through a non-intrusive method.
Features:
- Auto range
- Up to 99999 display; overload diaplay, “OL”
- RPM measurement and revolution count
- Max/Min, Data hold
- Singal trigger/laser-on indication
- Low battery/auto power off indication
- LCD backlight
- Auto power off
- Laser-on indication
- Rotating speed/count function switching
Package Content:
- 1x non-contact digital mini tachometer
- 3x 1.5V Battery (R03)
- Reflective tape
- Bubble bag,
- Gift box,
- English manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| RPM measurement Range | 10.0 ~ 9999.9 RPM / 10000 ~ 99999 RPM |
|---|---|
| RPM measurement Resolution | 0.1 / 1 |
| RPM measurement Accuracy | ±(0.04%+2) |
| Counting Measurement | 0 ~ 99999 Counts |
| Counting measurement (Resolution & Accuracy) | 1 (Resolution) / ±1 (Accuracy) |
| Refresh Rate | 1s to 7s (>120rpm for 1s) |
| Sensor Type | Photodiode & Laser Tube |
| Target Distance | 50 ~ 200 mm |
| Measuring Angle | ±30° from Perpendicular |
| Drop Test | 1 Meter |
| Power Supply | 3x 1.5V Battery (R03) |
| Display Digits | 5 Digit Segment Code |
| Display Count | 99999 Max Display |
| Product Color | Red & Grey |
| Dimensions (mm) | 183.8 x 56 x 34 mm |
| Certificates | CE, UKCA |
