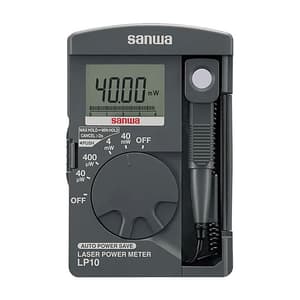

Sanwa 4039 Counts Laser Power Meter, LP10
Roll over the image to zoom in
Key Features
- Product Type: Power Meter
- Weight: 120 g
- Display: 4039 Counts (41-segment Bar Graph Display)
- Measuring Range: 0.1μW - 40mW
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹20,603 (Incl. of all taxes)
₹17,460 + ₹3,143 GST (18%)
MRP was MRP ₹19,400
Save 10%
7 Business Days
1
–
Download Product LeafletNot available
Download Sanwa CatalogueNot available
Download Sanwa CatalogueNot available
Highlights
The Sanwa LP10 is a Digital Laser Power Meter that features a 4039 count LCD display with an analog bar graph. This is used in checking and maintenance of the optical power levels of equipment using laser light. Using 633 nm of a He-Ne laser as the reference wavelength, this instrument enables direct reading of the optical power of visible-range laser light from a visible laser source - pointer, DVD player’s optical pickup, etc.

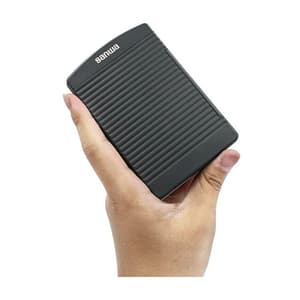

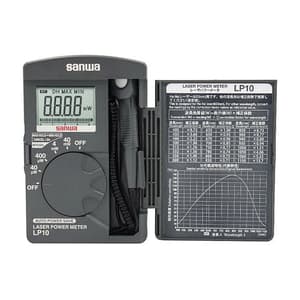

The power of other wavelengths can also be measured by converting the reading according to the spectral sensitivity characteristic table (typical values). The light sensor in this device is a silicon photodiode (light sensor surface diameter 9 mm) with a diffusion sheet. It can measure wavelengths within the 400 nm to 1100 nm range. The cleverly designed cover folds flat in back of the unit when in use, and protects the unit when closed.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
The power of other wavelengths can also be measured by converting the reading according to the spectral sensitivity characteristic table (typical values). The light sensor in this device is a silicon photodiode (light sensor surface diameter 9 mm) with a diffusion sheet. It can measure wavelengths within the 400 nm to 1100 nm range. The cleverly designed cover folds flat in back of the unit when in use, and protects the unit when closed.
Features:

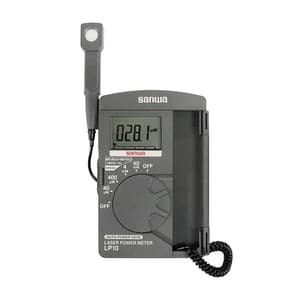

- Small stick shape sensor probe
- 4039 counts with analog bar graph
- Silicon photodiode
- Max/Min hold
- Auto power save
- Measured object: CW laser, the modulated laser connot be measured accurately.
Technical Data:
| Ranges | 40 μW range: 0.01 μW to 40.39 μW |
| 400 μW range: 0.1 μW to 403.9 μW | |
| 4 mW range: 0.001 mW to 4.039 mW | |
| 40 mW range: 0.01 mW to 40.39 mW |
Package Content:
- Laser Power Meter
- stick sensor
- instruction manual
 |
Max Min The maximum and minimum values are displayed and/or recorded. |
 |
Auto Power Save The display disappears to bring the device into the power-save state when a certain time has passed after power-up. Some models have a function to cancel this function. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | 4039 Counts (41-segment Bar Graph Display) |
|---|---|
| Measuring Range | 0.1μW - 40mW |
| Measurable Wavelength Range | 400 nm to 1100 nm |
| Directly-readable Wavelength | 633 nm (He-Ne laser) (Other Wavelengths Should Be Converted Using Typical Correction Factor) |
| Sampling Rate | Approx. 3 times/sec. (Digital Display) / Approx. 30 times/sec. (Bar Graph Display) |
| Cord Length (mm) | 500 mm |
| Power Supply | 2x 1.5V LR44 |
| Dimensions (H x W x D) | 117 × 76 × 18 mm (Meter) / 84 × 16 × 10 mm (Light Sensor Probe) |
