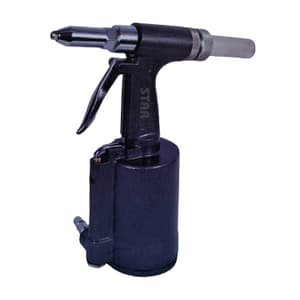

Star 3/16 inch Air Hydraulic Riveter, SHTM-004
Roll over the image to zoom in
Key Features
- Product Type: Air Hydraulic Riveter
- Blind Rivet Setting Capacity (Max.): 3/16 inch (4.8 mm)
- Tracking Power: 1586 lbs (720 kgs.)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹6,195 (Incl. of all taxes)
₹5,250 + ₹945 GST (18%)
7 Business Days
1
–
Download Product LeafletNot available
Download Star CatalogueNot available
Download Star CatalogueNot available

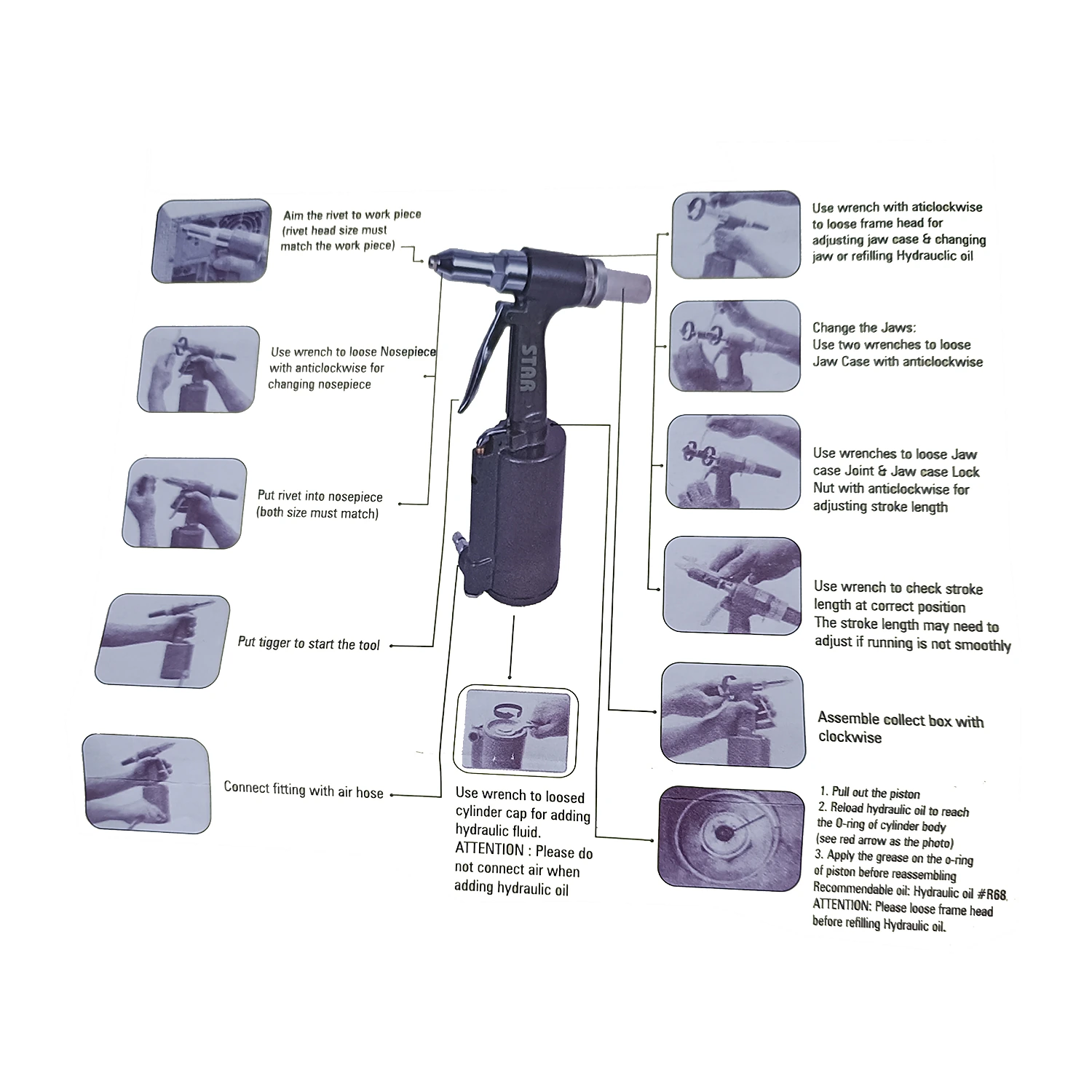

Highlights
| Problem | Cause | Remedy |
| Rivets jammed | Wrong size rivet. | The different rivets need to be changed on the compared nosepiece, Jaw & Jaw Point |
| Had some filings jam in the jaw case |
|
|
| Had some filings stick on the nosepiece |
|
|
| Air Leaking | Damage O-rings | O-rings need to be replaced |
| Loose screws | Screws need to be tightened | |
| Stroke length is not correct | Frame O-ring is damaged or deformed | Freme O-ring has to be replaced |
| Tools runs slow or has loss of power | Air feeding tube loose. | Re-install and tighten the tube |
| Operating pressure is to low. | Increase the operating pressure to 85-95 psi. | |
| Hyraulic oil is not enough | Rivet can't pull or no power | Open the cylinder cap and reload Hydraulic oil into the tools |
Blind Rivet Setting Capacity:
- 3/32" (2.4 mm)
- 1/8" (3.2 mm)
- 5/32" (4.0 mm)
- 3/16" (4.8 mm)
Applications:
- It injects high efficiency into manual chipping, riveting, breaking of concrete and asphalt etc.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Blind Rivet Setting Capacity (Max.) | 3/16 inch (4.8 mm) |
|---|---|
| Tracking Power | 1586 lbs (720 kgs.) |
| Stroke Length | 9/16 inch (14 mm) |
| Air Inlet | 1/4 inch |
| Air Hose | 3/8 inch |
| Jaws | 2 pcs |
| Overall Height | 10-3/4 inch (273 mm) |
