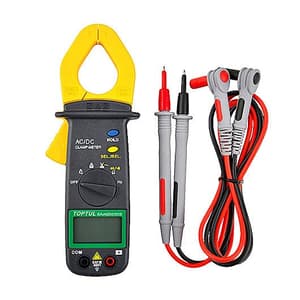

Toptul Digital Clamp Meter, EAAC0260E
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Power Supply: 1.5 V AAA
- Diameter: 30 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹14,377 (Incl. of all taxes)
₹12,184 + ₹2,193 GST (18%)
MRP was MRP ₹13,846
Save 12%
3 Business Days
1
9030
Download Product LeafletNot available
Download Toptul CatalogueNot available
Download Toptul CatalogueNot available
Highlights
Digital Clamp Meter is made from premium material for optimum application to achieve the best fit and specifications for reliability. TOPTUL The Mark of Professional Tools is a well-reputed organization dealing with the manufacturing and supplying of Digital Clamp Meter and other relative products. We have established strong customer relationships by providing innovative, user-friendly and high-quality products that are manufactured in our sound infrastructure.
Features & Benefits:
- Digital Clamp Meter with basic measuring functions
- Test lead set with test tip (red/black)
- Central dial switch
- Large LCD with 3-1/2 digit display 4000 counts
- Max. diameter for clamp jaw: Ø30mm
- Low battery indicator and auto shut off (after 30 minutes)
- Additional Features: Data hold, auto range, auto power off selection, auto power off cancelation
- AC and DC voltage measurement
- AC and DC current measurement
- Resistance measurement
- Diode test
- Continuity test with buzzer
- Frequency measurement
Specifications:
| AC Voltage | 4V / 40V / 400V / 600V |
| DC Voltage | 400mV / 4V / 40V / 400V / 600V |
| Resistance | 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ |
| AC Current | 400A / 600A |
| DC Current | 400A / 600A |
| Diode | 1V |
| Continuity Check | 400Ω |
| Hz Frequency | 5Hz / 50Hz / 500Hz / 5kHz / 50kHz /100kHz |
| Operating Environment | 0 ~ 50°C (32 ~ 122°F) at < 80% R.H. (non-condensing) |
| Storage Environment | -10 ~ 60°C (14 ~ 140°F) at < 70% R.H. (non-condensing) |
| Operating Altitude | Altitude up to 2000m |
| Power Supply | Battery 1.5V AAA x 2 pcs (included) |
| Testing Standard | IEC 61010-1 / IEC 61010-2-032 / IEC 61010-2-033 |
| Measurement Category | CAT ? 600V |
| Pollution Degree | 2 |
| Dimension | 190mm (L) x 71mm (W) x 37mm (H) |
| Weight | Approx. 200g |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Power Supply | 1.5 V AAA |
|---|---|
| Diameter | 30 mm |
| AC Voltage (V) | 4V / 40V / 400V / 600V |
| DC Voltage (V) | 400mV / 4V / 40V / 400V / 600V |
| AC Current (A) | 400A / 600A |
| DC Current (A) | 400A / 600A |
| Testing Standard | IEC 61010-1 / IEC 61010-2-030 / IEC 61010-2-033 |
