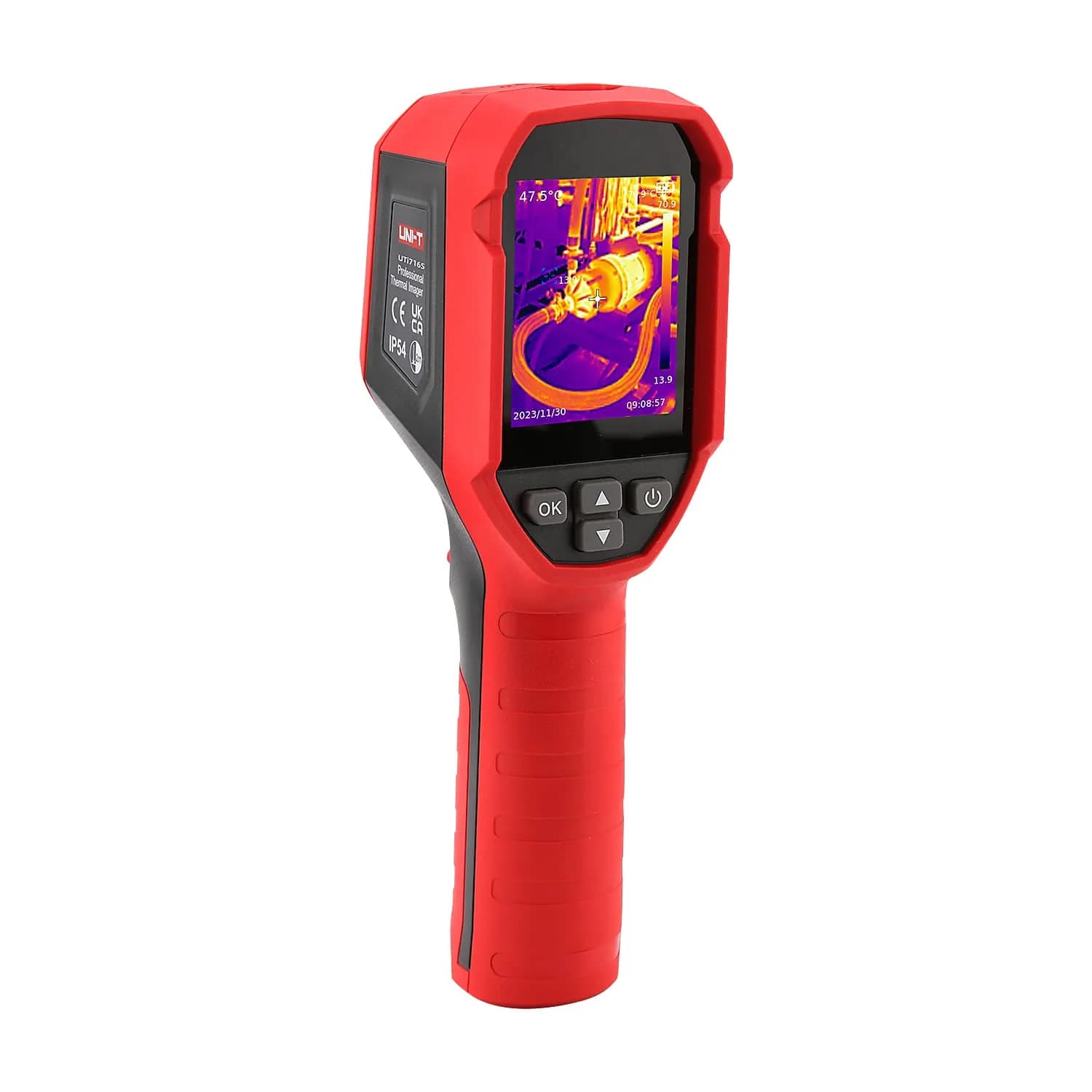

UNI-T -20 to 400°C / -4°F to 752°F Thermal Imaging Camera, UTi712S
Roll over the image to zoom in
Key Features
- Product Type: Thermal Imaging Camera
- Weight: 310 g
- Temperature Measurement Range: -20°C to 400°C / -4°F to 752°F
- IR Resolution: 120×90 Pixels
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹17,853 (Incl. of all taxes)
₹15,130 + ₹2,723 GST (18%)
MRP was MRP ₹17,800
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
UTi712S is a cost-effective and highly recommendable thermal camera with a quality build. Some special features include: temperature compensation (allows more accurate readings under different temperature environment), laser pointer, longer battery operation time (more than 8 hours). This rugged thermal camera has IP54 protection and can withstand 2 meters drop. UTi712S also supports 5 languages: English, German, French, Russian, and Spanish.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- Image capture
- Color palettes: 6 (White hot, Black hot, Ironbow, Rainbow HC, Rainbow, Lava)
- Buzzer alarm
- Laser pointer
- LED flashlight
- PC software analysis
- Rechargeable Li-ion battery
- 1/4 inch tripod mounting hole
Application:
- Electricity Inspection
- Motor Inspection
- HVAC Inspection
- Window sealing Inspection
Package Content:
- 1x Thermal Imaging Camera
- 1x 3.7V 2600mAh Fixed Li-ion battery
- Hand strap
- Micro SD card
- Type-C USB cable
- English manual
- Download the operation guide card
- Gift box
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Temperature Measurement Range | -20°C to 400°C / -4°F to 752°F |
|---|---|
| IR Resolution | 120×90 Pixels |
| Display | 2.4 inch TFT LCD (320×240) |
| Field of view (FOV) | 50° × 38° |
| Thermal Sensitivity (NETD) | < 60mK |
| Spatial Resolution (IFOV) | 7.3 mrad |
| Frame Rate | < 25Hz |
| Spectral Range | 8 ~ 14μm |
| Focus | Focus Free |
| Accuracy | ±2°C or ±2% Whichever is Greater |
| Emissivity | 0.01 ~ 1.00 Adjustable (0.95 Default) |
| Color Palettes | 6 (White hot, Black hot, Ironbow, Rainbow HC , Rainbow & Lava) |
| Image Modes | Thermal |
| Hi/Lo Temperature Alarm | Icon, LED Flashlight, Buzzer |
| Power Supply | 1x 3.7V 2600mAh Fixed Li-ion Battery |
| Battery Operation Time | > 8 Hours |
| USB | Type-C |
| IP Rating | IP54 |
| Drop Proof | 2 Meter |
| Storage | 16GB Micro SD card |
| Image/Video Storage Format | BMP |
| Certificates | CE, UKCA, FCC, RoHS |
| Dimensions (mm) | 197 ×72 × 60 mm |
