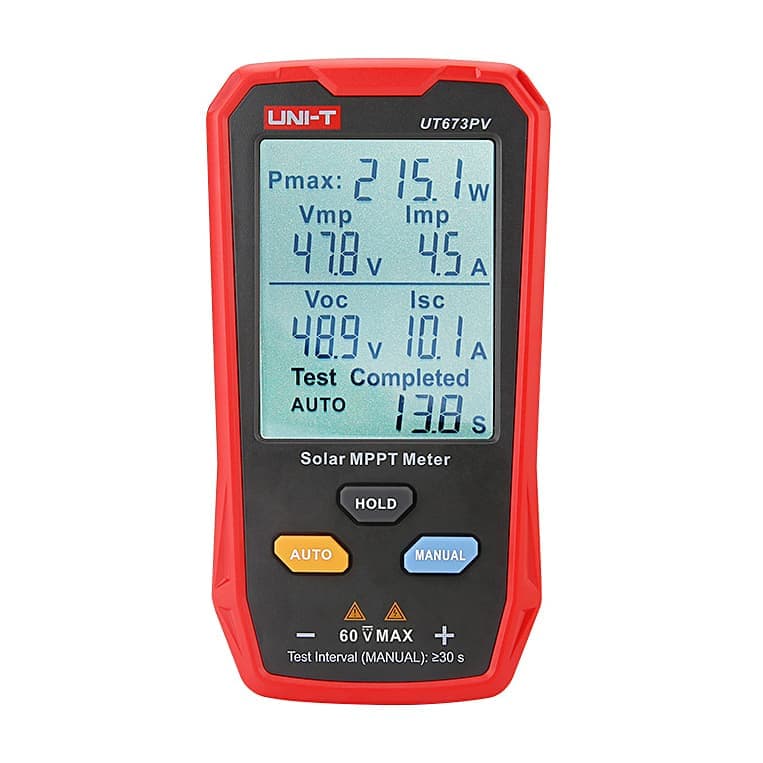

UNI-T 5 ~ 2200W Solar MPPT Meter, UT673PV+
Roll over the image to zoom in
Key Features
- Product Type: Power Meter
- Maximum Power Test (Pmax): 5 ~ 2200W
- Peak Power Voltage (Vmp): 10~150V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹7,723 (Incl. of all taxes)
₹6,545 + ₹1,178 GST (18%)
MRP was MRP ₹7,700
Save 15%
5 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
The UT673PV series solar MPPT meters test solar panels for maximum power, voltage, current to find the abnormalities. With a large screen, automatic measurement, and portable design, it enhances efficiency for photovoltaic industry professionals and users.
Features:
- Large screen and multiple result display
- Bluetooth App
- Equipped with an MC4 test lead
- Portable and convenient
- CAT 0 150V
- Reverse polarity connect protection
- Overvoltage protection
- Overcurrent protection
- Over temp. protection
- Overpower protection
- Manual MPPT test
- Bluetooth app
- Data hold
- Data storage
Technical Data:
| Range | Accuracy | |
| Maximum power test (Pmax) | 5~2200W | ±(1.0% + 10) |
| Peak power current (Imp) | 0~20A | ±(1.5%+5) |
| Peak power voltage (Vmp) | 10~150V. | ±(1.5%+5) |
| Open circuit voltage (Voc) | 10~150V. | ±(1.5%+5) |
| Short circuit current (Isc) | 0~20A | ±(1.5%+5) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Maximum Power Test (Pmax) | 5 ~ 2200W |
|---|---|
| Peak Power Voltage (Vmp) | 10~150V |
| Peak Power Current (Imp) | 0~20A |
| Open Circuit Voltage (Voc) | 10~150V |
| Short Circuit Current (Isc) | 0~20A |
| Large LCD Display Size | 52 x 66 mm |
| Ovecategory | CAT 0 150V |
| Certificate | CE, cETLus, RoHS |
| Power Supply | 3x 1.5V AAA Batteries |
