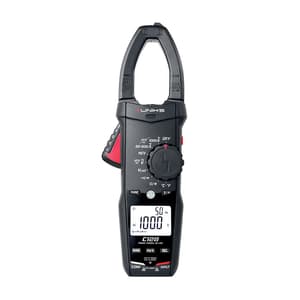

Uniks 6000 Count / 1000A Digital TRMS AC/DC Clamp Meter, C-128
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 350 g
- AC Current: 60A/600A/1000A
- Dc Current: 60A/600A/1000A
- AC Voltage: 6A/60A/600A/1000A
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹11,916 (Incl. of all taxes)
₹10,098 + ₹1,818 GST (18%)
MRP was MRP ₹14,850
Save 32%
5 Business Days
1
90303100
Download Uniks CatalogueNot available
Highlights

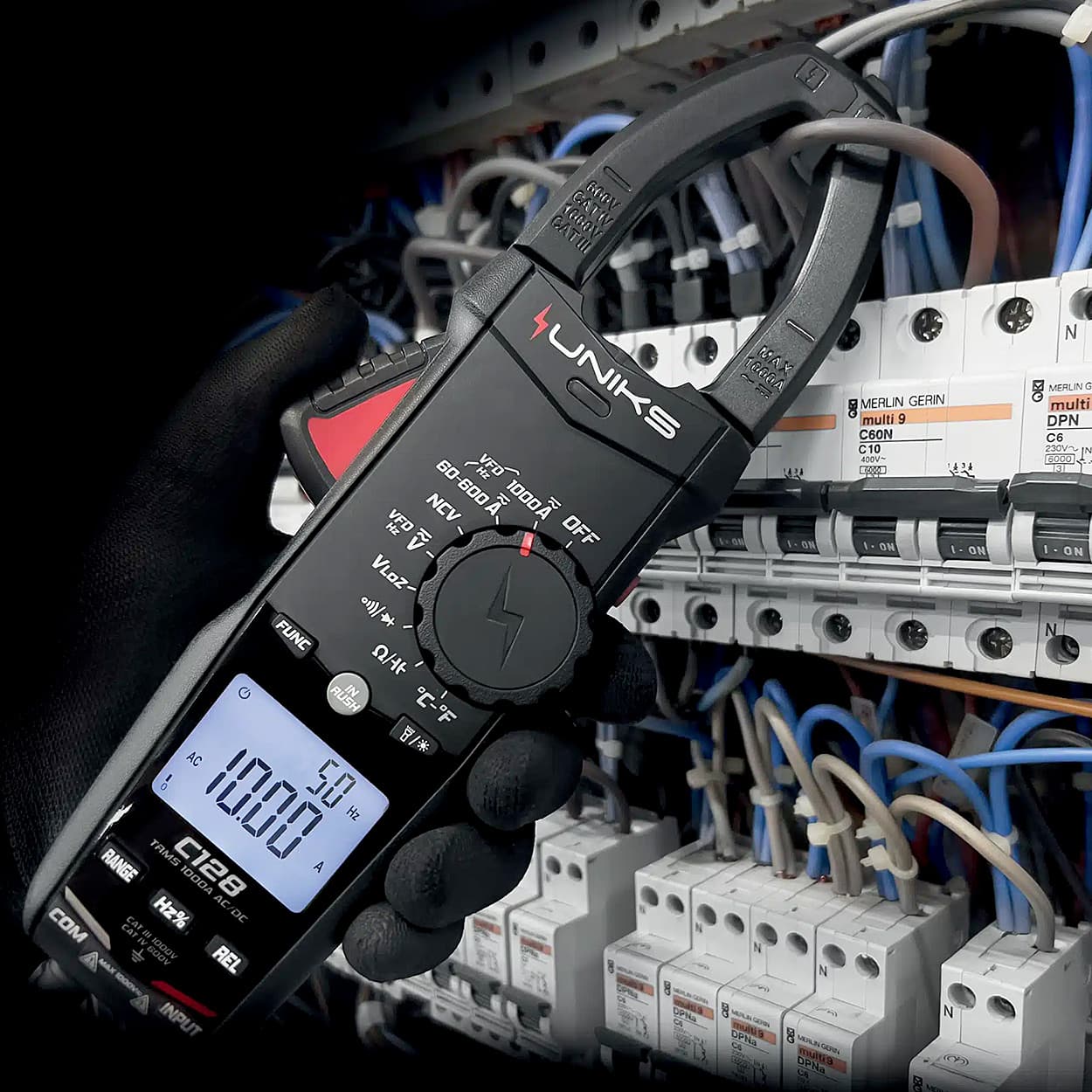

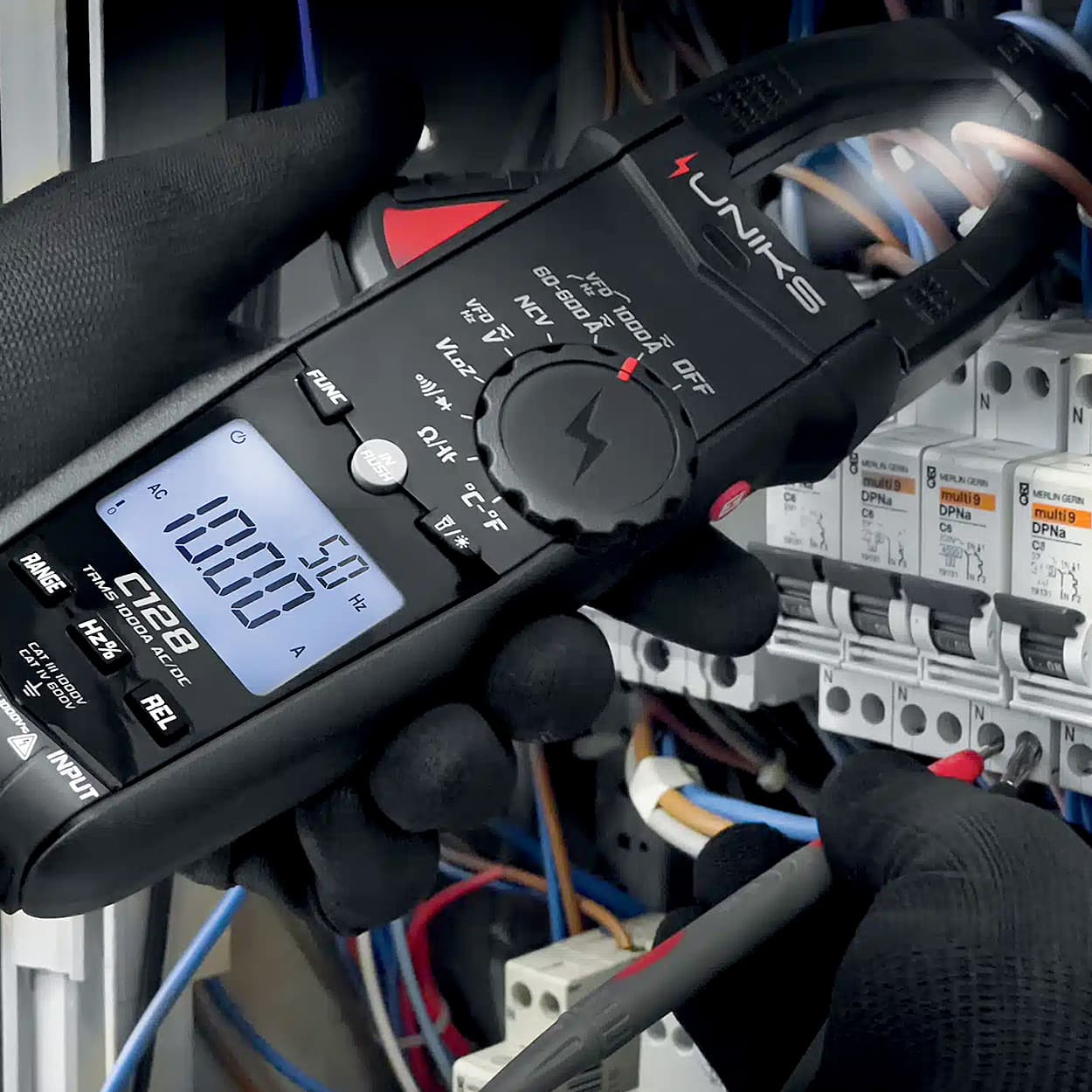

The Metravi Uniks C-128 Digital TRMS AC/DC Clamp Meter is designed for use in both industrial and civil sectors It carries out TRMS measurements of voltage up to 1000V AC/DC* and current from 0.1A up to 1000A AC/DC.

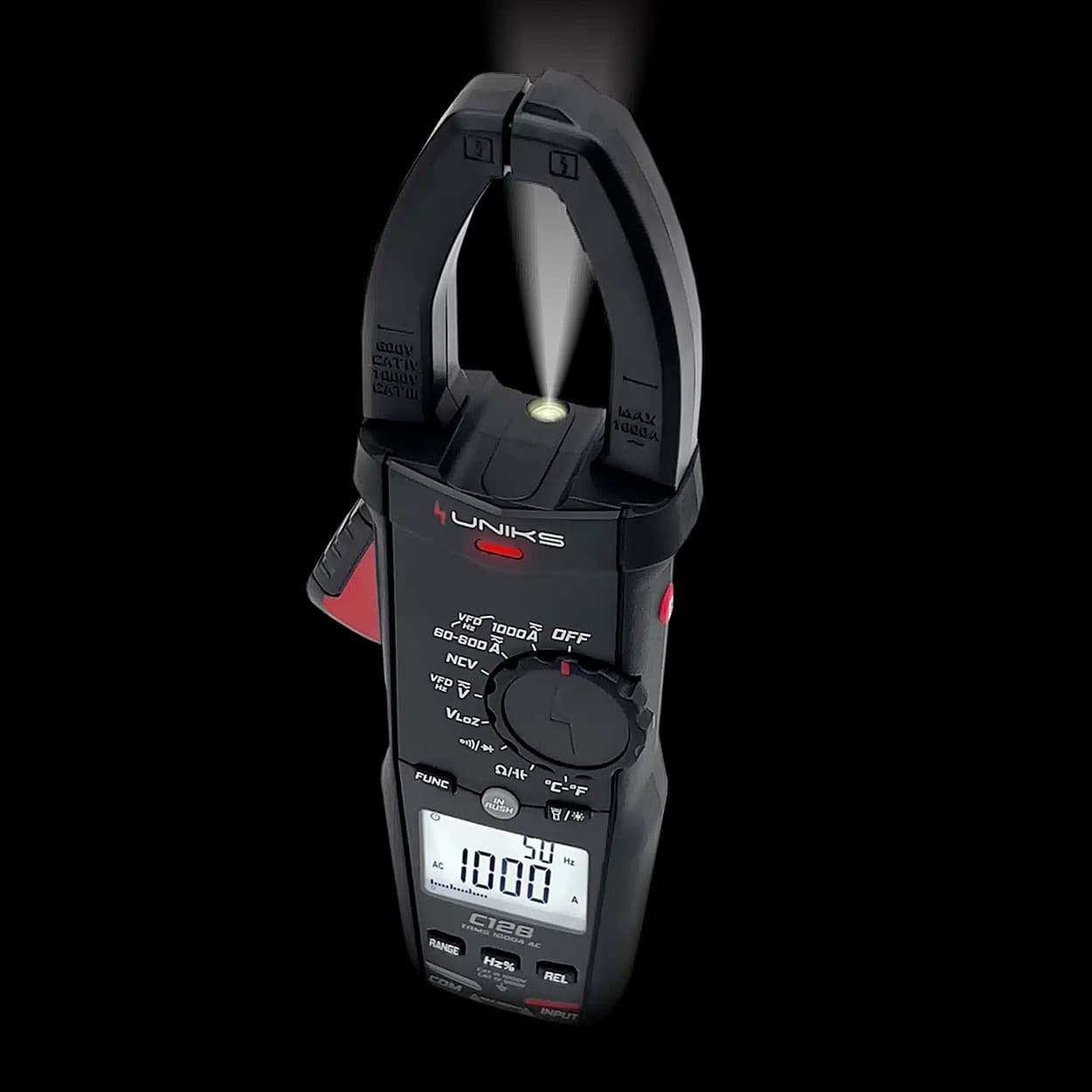

The modern design, the fluid mechanics and the 2″ Dual display function facilitates work in the field, making it the most complete instrument in the range. It is equipped with a built-in voltage detector that turns on if placed near live conductors and an integrated torch that allows you to work even in very dark places. Made in Europe. Used in India.
Features:
- DC/AC TRMS voltage up to 1000V
- DC/AC TRMS current up to 1000A
- Minimum current value 0.1A
- InRush Current
- Polarity Test
- REL function
- Data Hold
- Auto Power-off
- Built-in LED Flashlight
- Over Range indication
- Overload Protection
- Auto and Manual Range
- Bandwidth for TRMS measurements of 1KHz
- Relative measurements
- Non-contact Voltage detection
- Voltage measurement with low impedance VLoz
- Voltage and Current VFD Filter
- Resistance and Continuity test with buzzer
- Capacity and Frequency
- Duty cycle
- Test Diodes
- Temperature
Package Content:
- UNI97 : 2 Probes R and N 4mm CAT III 1000V/10A
- UNI300 : Wire probe
- UNIAD2 : Adapter for K probe
- UNI3300 : Canvas bag for transport
- User manual
- 3x 1.5V AAA batteries
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Display | 2 inch Backlit LCD, 6000 Counts, Dual Display with analog bargraph |
|---|---|
| AC Current | 60A/600A/1000A |
| AC Current Resolution | 0.01A/0.1A/1A |
| AC Current Accuracy | ±2.5% |
| Dc Current | 60A/600A/1000A |
| DC Current Resolution | 0.01A/0.1A/1A |
| DC Current Accuracy | ±3% |
| AC Voltage | 6A/60A/600A/1000A |
| AC Voltage Resolution | 0.001V/0.01V/0.1V/1V |
| AC Voltage Accuracy | ±0.8% |
| DC Voltage | 6A/60A/600A/1000A |
| DC Voltage Resolution | 0.001V/0.01V/0.1V/1V |
| DC Voltage Accuracy | ±0.5% |
| Current Frequency | 100Hz/1000 Hz/ 10Kz |
| Current Frequency Resolution | 0.01Hz/ 0.1Hz / 0.001kHz |
| Current Frequency Accuracy | ±1% |
| Duty Cycle Range | 1% to 99% |
| Duty Cycle Resolution | 0.1% |
| Duty Cycle Accuracy | ±3% |
| Voltage Frequency | 100Hz/1000Hz /10kHz |
| Voltage Frequency Resolution | 0.01Hz/ 0.1Hz / 0.001kHz |
| Voltage Frequency Accuracy | ±1% |
| Diode Range | 2.000V |
| Diode Resolution | 0.001V |
| Resistance Range | 600/6k/60k/600k/6M/60M Ohms |
| Resistance Resolution | 0.1/0.001k/0.01k/0.1k/0.001M/0.01M Ohms |
| Resistance Accuracy | ±1.0% |
| Capacitance Range | 60.00nF/600.0nF/6.000uF /60.00uF /600.0uF /6.000mF/60.00mF |
| Capacitance Resolution | 0.01nF/0.1nF/1nF /10nF /100nF/1uF /10uF |
| Capacitance Accuracy | ±4.0% |
| Temperature Range | -20~1000°C, (-4~1832°F) |
| Temperature Resolution | 1°C/2°F |
| Temperature Accuracy | ±2% |
| Sampling Time | 3 times/sec |
| Encloser | Double Insulation |
| Pollution Level | Level II |
| Overvoltage Category | CATIII 1000V, CATIV 600V |
| Power Supply | 1.5V, 3 x AA alkaline batteries |
| Safety Certifications | CE, EN-61010-1, EN-61010-2-030, EN-61010-2-032 |
