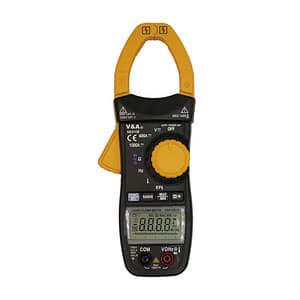

V&A Instrument 3999 Counts / 1000 Amps AC/DC Clamp Meter With Temperature Measurement, VA311B

The meter is an autorange 1000 Amps AC/DC clamp meter with temperature measurement and 3999 counts. The autorange 1000 Amps AC/DC clamp meter with temperature measurement is for measuring DC and AC voltage, DC and AC current, Resistance, Capacitance, Temperature, Frequency, Duty Cycle, Diode and Continuity Test with battery operated.

Features:

• Ranging method: Auto range mode
• Polarity indication: “-” display for negative polarity
• Overrange indication: LCD will display “OL”
• Low battery: “ ” will appears on LCD
• Continuity test, Auto range, Data hold, True RMS Measurement, Relative Measurement
• Max/Min Value Measurement, Back light, Auto power off, Low Power Indication, Diode test
• Maximum voltage - 1000V DC or 700V AC RMS
• Display - LCD 3999 counts Updates 2-3/sec
• Jaw capability: 40mm, Max conductor size

Application:

• With Functions of Voltage measurement, Current measurement, Resistance measurement, Diode test, Continuity test, Capacitance measurement, Frequency measurement, Temperature measurement and duty cycle test
• This digital clamp meter is ideal for use in the fields, workshop, school, hobby and home applications.

Maintenance:

• Before opening the meter, always disconnect test leads from all sources of electric current.
• If any faults or abnormalities are observed, the meter can not be used any more and it has to be checked out.
• Never use the meter unless the back cover and the battery cover are in place and fastened fully.
• Do not use abrasives or solvents on the meter, use a damp cloth and mild detergent only.

Package Content:

• 1x Clamp Meter
• 1x Operator’s instruction manual
• 1x Set of test leads
• 3x 1.5V AAA Battery
• 1x “K” type thermocouple

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
