Amprobe 0 - 5000V Industrial High-Voltage Insulation Tester, AMB-50
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Current display range: 0 mA - 1.2 mA
- Polarization index (PI): 0 - 9.99
- Memory size: 18 Measurements
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹60,076 (Incl. of all taxes)
₹50,912 + ₹9,164 GST (18%)
MRP was MRP ₹74,871
Save 32%
3 Business Days
1
9030
Download Product LeafletNot available
Download Amprobe CatalogueNot available
Download Amprobe CatalogueNot available
Highlights
The Amprobe AMB-50 High-Voltage Insulation Tester has the necessary features for professional insulation diagnostics. It features the calculation of PI and DAR parameters. The pass/fail comparison function helps to improve testing productivity.

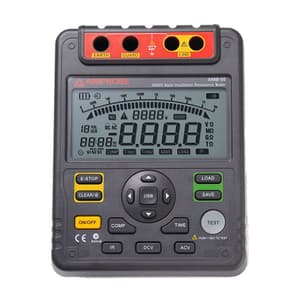

Readings are clearly displayed on a large backlit LCD display. Windows compatible PC Software and USB communications port serve for connecting the instrument to the PC and management of the recorded test data.
Features:
- Test insulation of wires, cables, transformers, motors, surge arrestors, and generators
- Selectable testing voltages – one testing instrument for low and high voltage systems from 500/1000/2500 and 5000 V
- Insulation resistance measurement up to 1T Ω
- User-selectable programmable timer (10s to 30 min)
- Automatic discharge of test object after completion of measurement
- Diagnostic tools
- Polarization index (PI)
- Dielectric absorption ratio (DAR)
- Comparison feature to set pass/fail thresholds for quick measurement and verification
- Dual power source – receptacle or batteries
- Built-in internal memory storing 18 measurements.

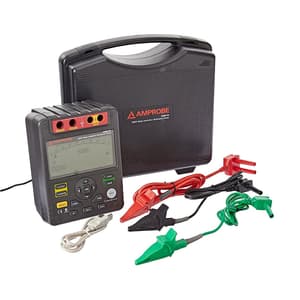

What’s Included In This Package:
- AMB-50
- Test leads & large jaw alligator clips
- Hard carrying case
- Software & USB interface cable
- Power adapter
- Batteries
Specifications:
| Display (LCD): | 1999 counts. Analog bar graph. |
| Operating temperature: | -10°C~40°C (14°F ~104°F ) |
| Storage temperature: | -20°C ~60°C (-4 °F~152°F ) |
| Relative humidity: | < 85% @ -10°C ~40°C below; < 90% @ 0°C ~40°C : |
| Battery type: | 8pcs X 1.5V (LR14) batteries or power adaptor (input voltage 230V, 50/60Hz, 75mA, input DC14V, 1.0A). Power adaptor is not included. |
| Storage environment: | -20°C to 60°C, 0 to 70% R.H. with the battery removed from the meter. |
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Insulation resistance | 0.5 MO - 20 GO, 2 MO - 40 GO, 5 MO - 100 MO, 100 MO - 1000 GO |
|---|---|
| Test voltage and step voltage display range | 0 V - 5000 V |
| Current display range | 0 mA - 1.2 mA |
| Dielectric absorption ratio (DAR) | 0 - 9.99 |
| Polarization index (PI) | 0 - 9.99 |
| Dielectric discharge test (DD) | 0 - 9.99 |
| Leakage current display range | 1 mA - 1.2 mA |
| External voltage measurement | 30 V - 600 V |
| Download PC interface | Yes |
| Memory size | 18 Measurements |
