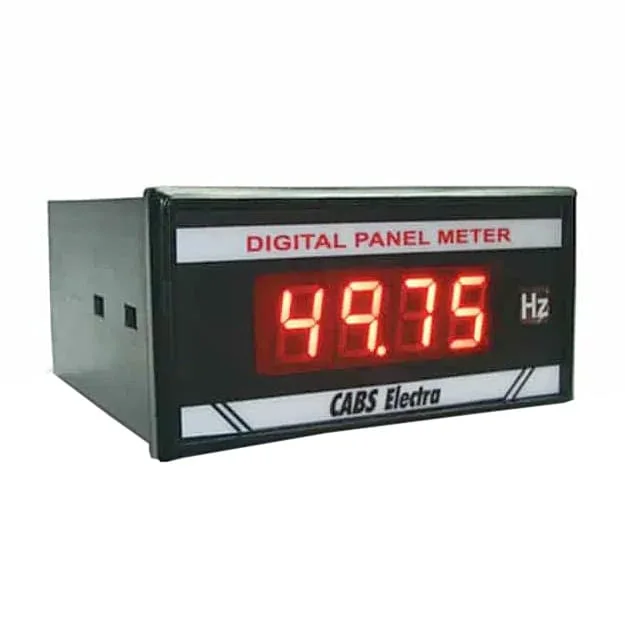

Cabs Electra 20 - 99.99Hz / 96 x 48 mm Panel Flush Mounting Frequency Meter, CE-500F 99.99Hz
Roll over the image to zoom in
Key Features
- Product Type: Digital Panel Meters
- Measuring Range: 20 to 99.99Hz
- Accuracy: ±0.02%
- Input Voltage: 10V to 500V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,430 (Incl. of all taxes)
₹1,212 + ₹218 GST (18%)
MRP was MRP ₹1,782
Save 32%
5 Business Days
1
90303100
Download Product LeafletNot available
Download Cabs Electra CatalogueNot available
Download Cabs Electra CatalogueNot available
Highlights
4 Digits, Panel Flush Mounting, 96 X 48 mm sq, Input 10 - 500V, Measuring range 20 - 99.99 Hz
Features:
- Microprocessor based 4 digit display.
- Available for ranges: 99.99Hz, 999.9 Hz, 10KHz and 100KHz ranges.
- Available in 96 * 96 and 96*48 mm Bezel sizes.
- Auxiliary Power Supply: 230V AC 50Hz / 110V AC 50Hz / DC Auxiliary inputs also available
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Type of Product | Frequency Meter |
|---|---|
| Measuring Range | 20 to 99.99Hz |
| Display | 4 digit LED |
| Power Source | 230V AC 50Hz / 110V AC 50Hz / DC Auxiliary inputs also available |
| Accuracy | ±0.02% |
| Input Voltage | 10V to 500V |
| Mounting Type | Flush Panel Mounting |
| Dielectric Strength | AC 2KV/1min input to power terminals, AC 3KV/min all terminals to case |
