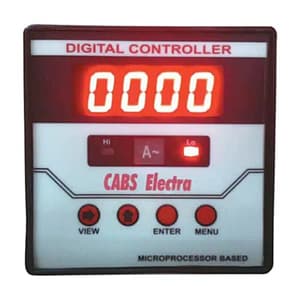

Cabs Electra 3-1/2 Digits / 96 x 96 mm Two Set Point Digital Ammeter Controller, CE-0102AC 2SP
Roll over the image to zoom in
Key Features
- Product Type: Digital Panel Meters
- Size: 96 x 96 mm
- Display: 3-1/2 Digits
- Current Input: 7A Max
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,875 (Incl. of all taxes)
₹4,131 + ₹744 GST (18%)
MRP was MRP ₹6,075
Save 32%
5 Business Days
1
90303100
Download Product LeafletNot available
Download Cabs Electra CatalogueNot available
Download Cabs Electra CatalogueNot available
Highlights
Digital Ammeter with Two Set Point to control the current below a given pair of set points. Size – 96 x 96 mm sq. With 2NO + 2NC Contact. Auxiliary Power Supply 230V AC / 110V AC 50Hz. (Any One)
Features:
- Would measure AC Current.
- Range: Any Single Range up to 2000A for direct inputto the meter via a CT ‘or’ KA rating through a CT input can bemade available.
- Can set single set point to activate a relay.
- Potential free 1 NO+ 1NC Contact
- Auxiliary Power Supply : 230V AC 50Hz / 110V AC 50Hz/ DC Auxiliary inputs also available (any one)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Type of Product | Ammeter Controller |
|---|---|
| Size | 96 x 96 mm |
| Display | 3-1/2 Digits |
| Current Input | 7A Max |
| CT Secondary | 5 Amp or 1Amp |
| Storage Temperature Range | -20°C – 85°C |
| Dielectric Strength | 2 KV to 1 minute |
| Relative Humidity | 95% |
| Relay Contacts | 150 mA, Max 6 Volts DC |
| Input Impedance | 0.002 ohm for current circuit |
| Power | 230V AC, 3 VA, 50/60Hz, Mains Voltage |
