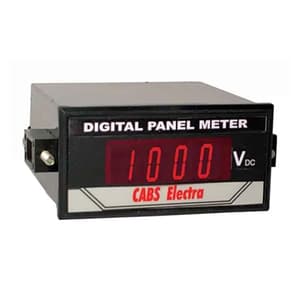

Cabs Electra 3-1/2 Digits / 96 x 48 mm Panel Flush Mounting DC Voltmeter (Single Phase), CE-0102V
Roll over the image to zoom in
Key Features
- Product Type: Digital Panel Meters
- Size: 96 x 48 mm sq
- Accuracy: DCV 0.1% Rdg +/- 2 Dig.
- Sampling Time: Abt. 0.4 Sec typically
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,516 (Incl. of all taxes)
₹1,285 + ₹231 GST (18%)
MRP was MRP ₹1,890
Save 32%
5 Business Days
1
90303100
Download Product LeafletNot available
Download Cabs Electra CatalogueNot available
Download Cabs Electra CatalogueNot available
Highlights
3-1/2 Digits Red LED Display, panel flush mounting DC Voltmeter, for measuring DC Voltage, Size – 96 x 48 mm, range 0 – 20mV / 200mV / 2V / 200V / 1000V (Any One Range)
Features:
- Voltmeters for measuring DC voltages.
- Range: Any Single Range up to 1000V for direct input to the meter ‘or’ KV rating through a PT input can be made available.
- Auxiliary Power Supply: 230V DC 50Hz / 110V AC 50Hz / AC Auxiliary inputs also available
- At the time of placing the order, please inform the Voltage range, PTR value (if the input is through a PT), auxiliary power supply, size, 3-1/2 digits display needs to be mentioned.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Type of Product | Voltmeter |
|---|---|
| Size | 96 x 48 mm sq |
| Display | 3-1/2 Digits LED Display (14/12 mm) |
| Accuracy | DCV 0.1% Rdg +/- 2 Dig. |
| Sampling Time | Abt. 0.4 Sec typically |
| Over Range Indication | ''1'' |
| Power Consumption | AC 5VA |
| Operating Temperature Range | 0°C to 50°C |
| Storage Temperature Range | 10 ~ 70oC |
| Max Relative Humidity | 95% |
| Dielectric Strength | AC 2KV/1Min |
| Aux Supply Source | 230V/110V/50/60Hz 'OR' 24 – 110V DC (Any One) |
