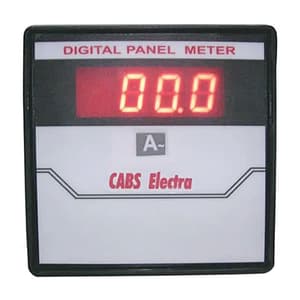

Cabs Electra 3-1/2 Digits Panel Flush Mounting AC Ammeter (For CT Operated -/5A or -/1A), CE-0102A
Roll over the image to zoom in
Key Features
- Product Type: Digital Panel Meters
- Display: 3-1/2 Digits LED Display (14/12 mm)
- Range: Any Single Range up to 2000A for 3-1/2 Digit
- Accuracy: ACA 0.5% Rdg +/- 3 Dgts
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,516 (Incl. of all taxes)
₹1,285 + ₹231 GST (18%)
MRP was MRP ₹1,890
Save 32%
5 Business Days
1
90303100
Download Product LeafletNot available
Download Cabs Electra CatalogueNot available
Download Cabs Electra CatalogueNot available
Highlights
3-1/2 Digits Panel Flush Mounting AC Ammeter, Size – 96 x 48 mm or 96 x 96 mm, For CT Operated -/5A or -/1A or for Direct Operated up to 20A AC. For CT Operated the maximum current shall be 1999 A
Features:
- Ammeters for measuring DC currents are also available
- For currents above 20A either a CT for AC Current measurements or Shunt for AC Current measurements is to be used
- At the time of placing the order, please inform the current range, Shunt or CT value, auxiliary power supply, size, 3-1/2 digits display needs to be mentioned.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Type of Product | Ammeter |
|---|---|
| Display | 3-1/2 Digits LED Display (14/12 mm) |
| Range | Any Single Range up to 2000A for 3-1/2 Digit |
| Auxiliary Power Supply | 230V AC 50Hz / 110V |
| Accuracy | ACA 0.5% Rdg +/- 3 Dgts |
| Over Range Indication | 1 |
| Power Consumption | AC 5VA |
| Operating Temperature Range | 0 ~ 50oC |
| Storage Temperature Range | 10 ~ 70oC |
| Max Relative Humidity | 95% |
| Dielectric Strength | AC 2KV/1Min |
| Sampling Time | Abt. 0.4 Sec Typically |
| Frequency Range | 45 - 400 Hz for AC range |
