Fluke 106 6000 Counts / 600V Palm-Sized Digital Multimeter

Shop all Fluke

SKU: HA.AU.MU.00003

Model: Fluke106

Roll over the image to zoom in

Visit Fluke Store

Key Features

  • Product Type: Multimeter
  • Weight: 200 g
  • Display (LCD): 6000 counts, updates 3/sec
  • Operating: 2000 Mtr
  • Storage: 12000 Mtr
See all product information

ToolBuy Benefits

₹5,965 (Incl. of all taxes)

₹5,055 + ₹910 GST (18%)

MRP was MRP ₹7,434

Save 32%

3 Business Days

1

90303100

Download Product LeafletNot available
Download Fluke CatalogueNot available

Highlights

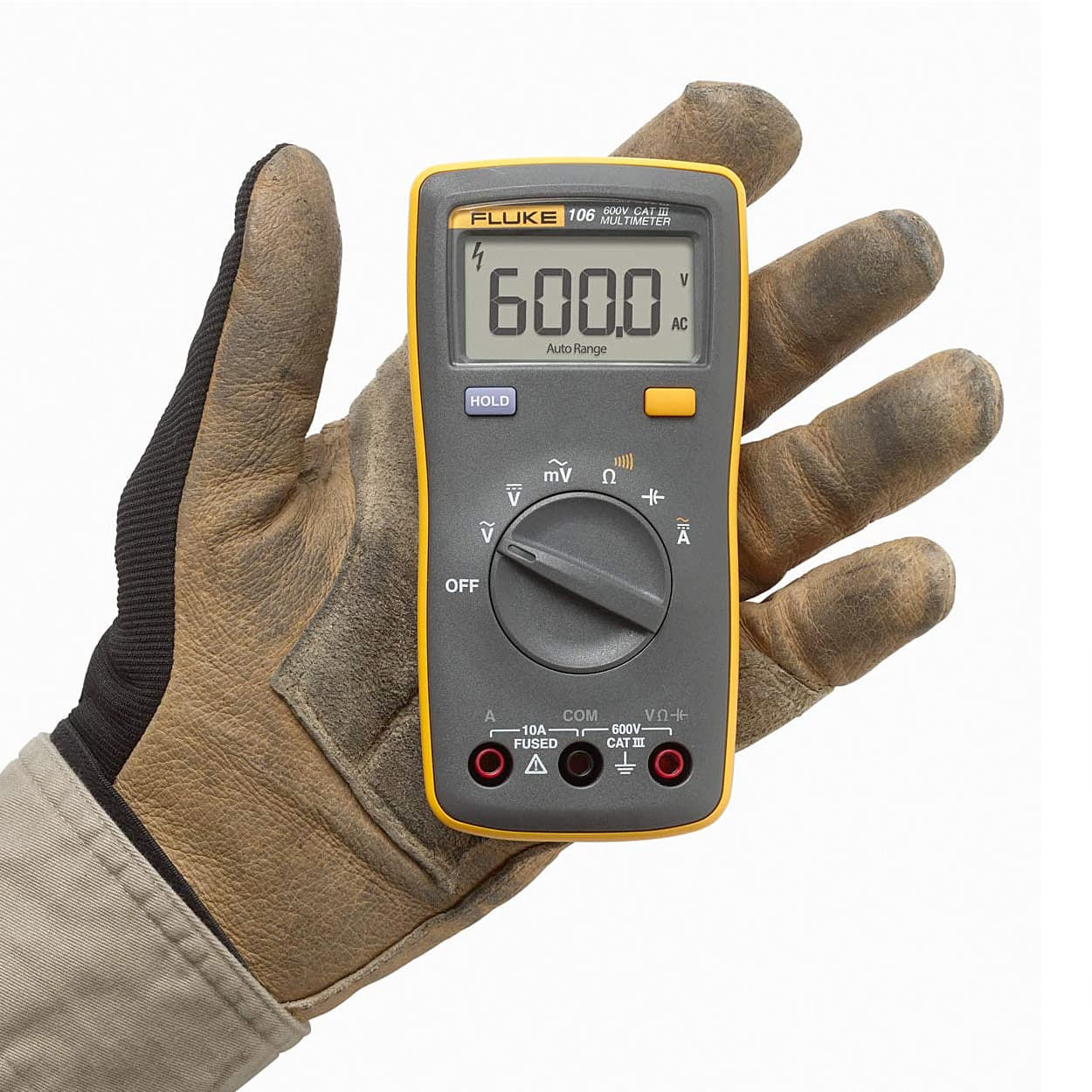

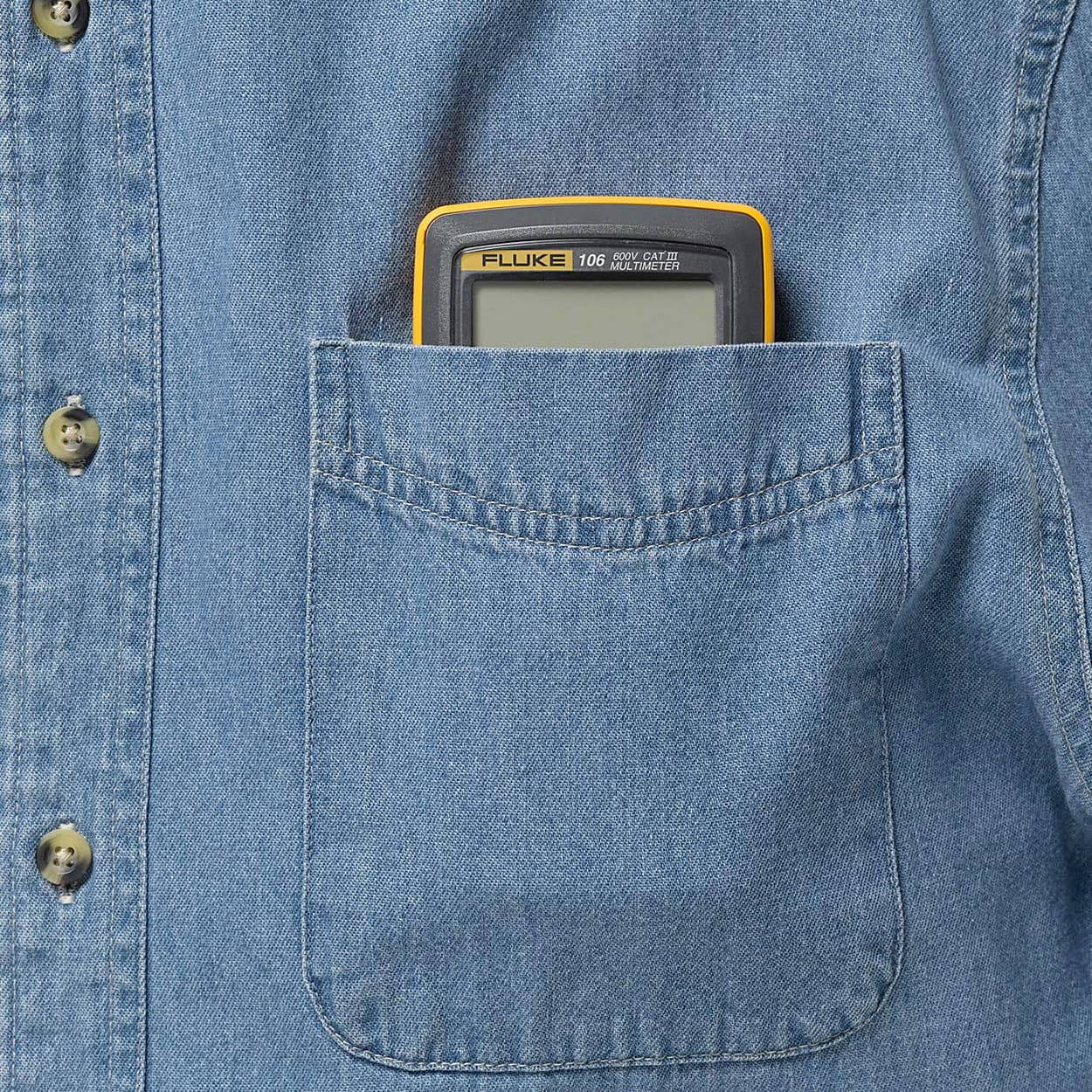

The Fluke 106 digital multimeter is made to fit the way you work! It is designed to fit in the palm of your hand and go with you no matter where your job takes you.

Features:

  • Voltage, resistance, continuity, capacitance
  • Input terminal for ac and dc current measurements to 10 A and current
  • Data hold.

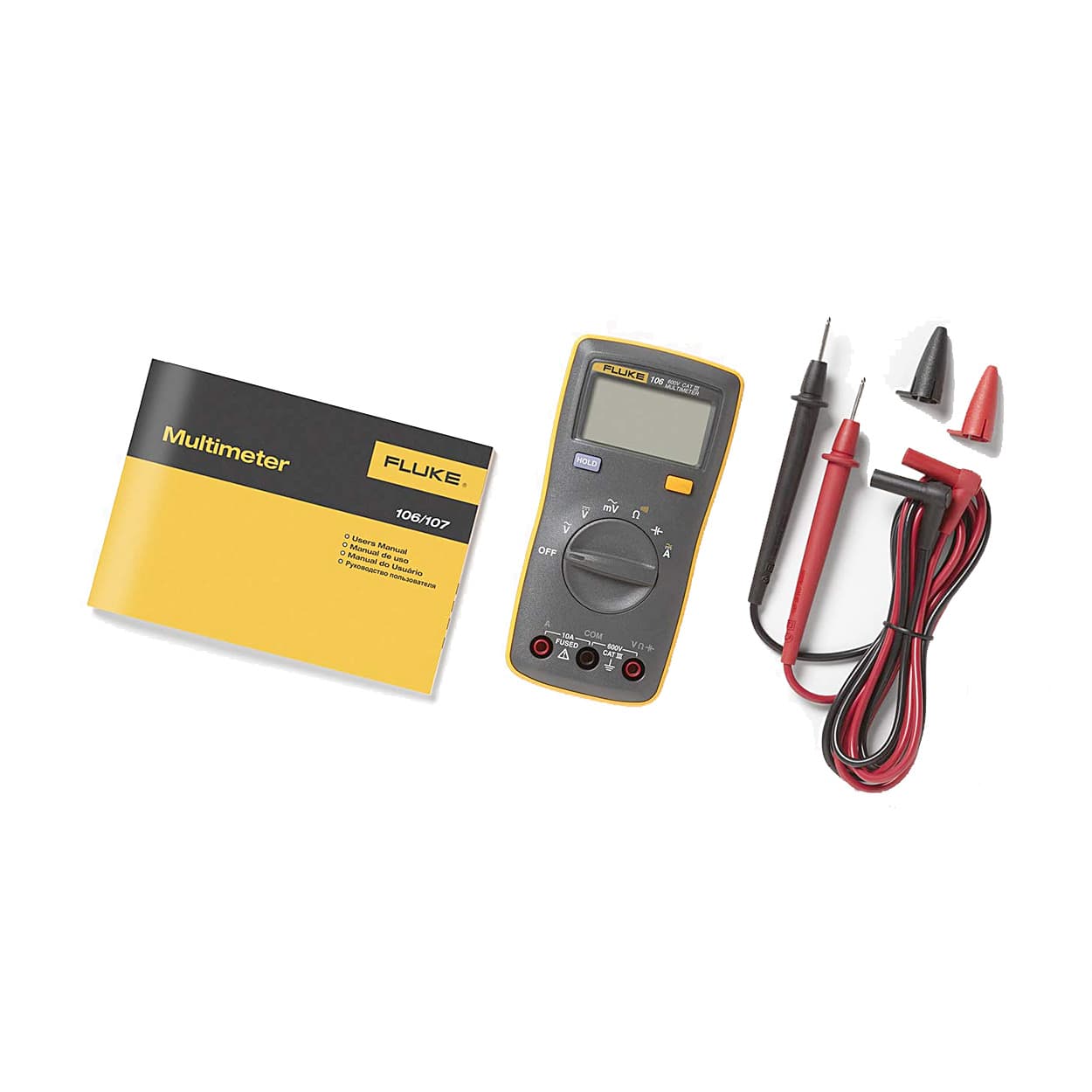

What's Included In This Package:

  • Fluke 106 Palm-sized Digital Multimeter
  • Tl75 Hard Point Test Lead Set
  • 2 AAA Batteries (Installed)
  • User’s Manual


Accuracy Specifications:

 Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of ±([% of Reading] + [Number of Least Significant Digits]

Function Range Resolution Accuracy
AC Volts
(40 Hz to 500Hz)1		 6.000 V
60.00 V
600.0 V		 0.001 V
0.01 V
0.1 V		 1.0 % + 3
DC Volts 6.000 V
60.00 V
600.0 V		 0.001 V
0.01 V
0.1 V		 0.5 % + 3
AC Millivolts 600.0 mV 0.1 mV 3.0 % + 3
Diode Test2 2.000 V 0.001 V 10 %
Resistance
(Ohms)		 400.0 Ω
4.000 kΩ
40.00 kΩ
400.0 kΩ
4.000 MΩ
40.00 MΩ		 0.1 Ω
0.001 kΩ
0.01 kΩ
0.1 kΩ
0.001 MΩ
0.01 MΩ		 0.5 % + 3
0.5 % + 2
0.5 % + 2
0.5 % + 2
0.5 % + 2
1.5% + 3
Capacitance3 50.00 nF
500.0 nF
5.000 μF
50.00 μF
500.0 μF
1000 μF		 0.01 nF
0.1 nF
0.001 μF
0.01 μF
0.1 μF
1 μF		 2 % + 5
2 % + 5
5 % + 5
5 % + 5
5 % + 5
5 % + 5
Frequency4 Hz
(10 Hz – 100 kHz)		 50.00 Hz
500.0 Hz
5.000 kHz
50.00 kHz
100.0 kHz		 0.01 Hz
0.1 Hz
0.001 kHz
0.01 kHz
0.1 kHz		 NA
Duty Cycle4 1 % to 99 % 0.1 % NA
AC Current
(40 Hz to 200 Hz)		 4.000 A
10.00 A		 0.001 A
0.01 A		 1.5 % + 3
DC Current 4.000 A
10.00 A		 0.001 A
0.01 A		 1.5 % + 3
  • All AC, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified.
  • Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 mA.
  • Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 50 nF range).
  • All AC, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified.
Function Overload Protection Input Impedance (Nominal) Common Mode Rejection Ratio Normal Mode Rejection Ratio
AC Volts 600 V 1 >10 MΩ <100 pF 2 >60 dB at dc,
50 Hz or 60 Hz		 −
\AC Millivolts 600 mV >1M, <100 pF >80 dB at 50 Hz or 60 Hz −
DC Volts 600 V 1 >10 MΩ <100 pF >100 dB at dc,
50 Hz or 60 Hz		 >60 dB at 50 Hz or 60 Hz
  1. 6 x 105 V Hz Max
  2. For mV (AC), input impedance is approximately 1 MΩ.
Relative Humidity
Operating Humidity Non-condensing when <10°C
≤90 % at 10 °C to 30 °C; ≤75 % at 30 °C to 40 °C
Operating Humidity, 40 MΩ Range ≤80 % at 10 °C to 30 °C; ≤70 % at 30 °C to 40 °C
Altitude
Temperature Coefficient 0.1 X (specified accuracy) /°C (<18 °C or >28 °C)
Size (HxWxL) 142 mm x 69 mm x 28mm
IP Rating IEC 60529: IP 40
Safety IEC 61010-1: 600 V CAT III, Pollution Degree 2
Electromagnetic Environment IEC 61326-1: Portable
Electromagnetic Compatibility Applies to use the Korea only.  Class A Equipment (Industrial Broadcasting and Communication Equipment)1
This product meets requirements for industrial (Class A) electromagnetic wave equipment and seller or user should take notice of it. This equipment is intended for use in business environments and is not to be used in homes.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Fluke 106 6000 Counts / 600V Palm-Sized Digital Multimeter
Maximum Voltage Between any Terminal and Earth Ground600 V
Display (LCD)6000 counts, updates 3/sec
Battery Type2 AAA, NEDA 24A, IEC LR03
Battery Life200 hours minimum
Temperature Operating0 °C to 40 °C
Temperature Storage-30 °C to 60 °C
Operating2000 Mtr
Storage12000 Mtr
Fuse Protection for Current Inputs11A, 1000V Fast Fuse Fluke specified part only
