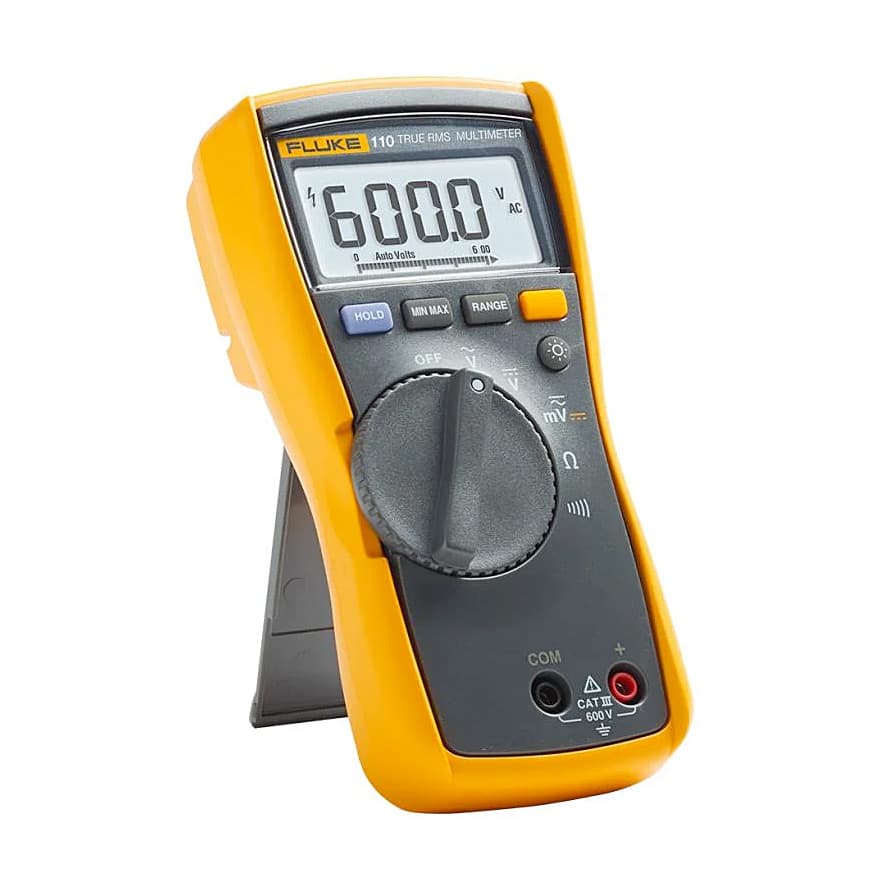

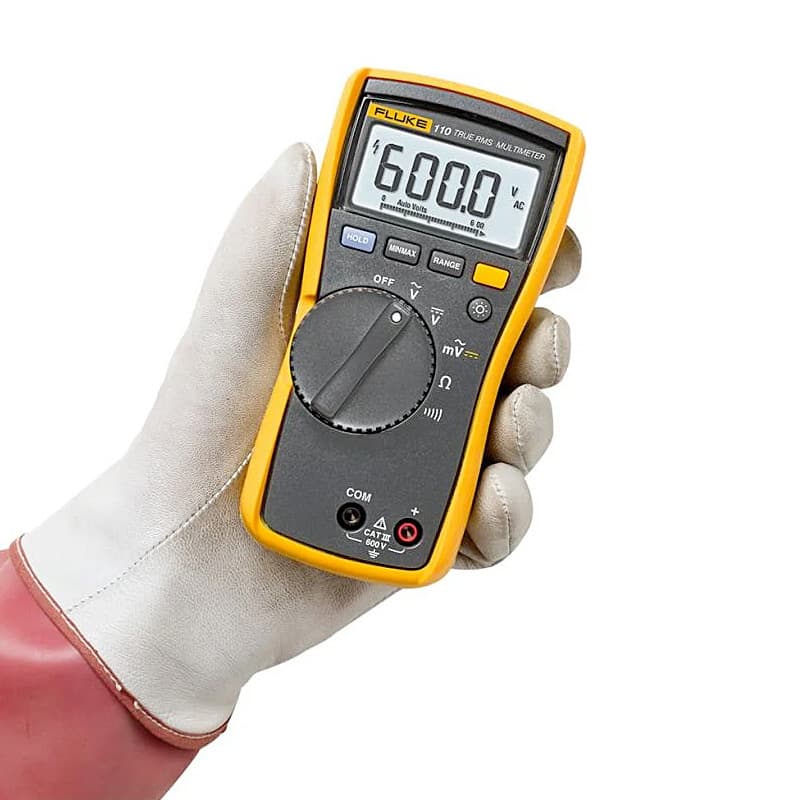

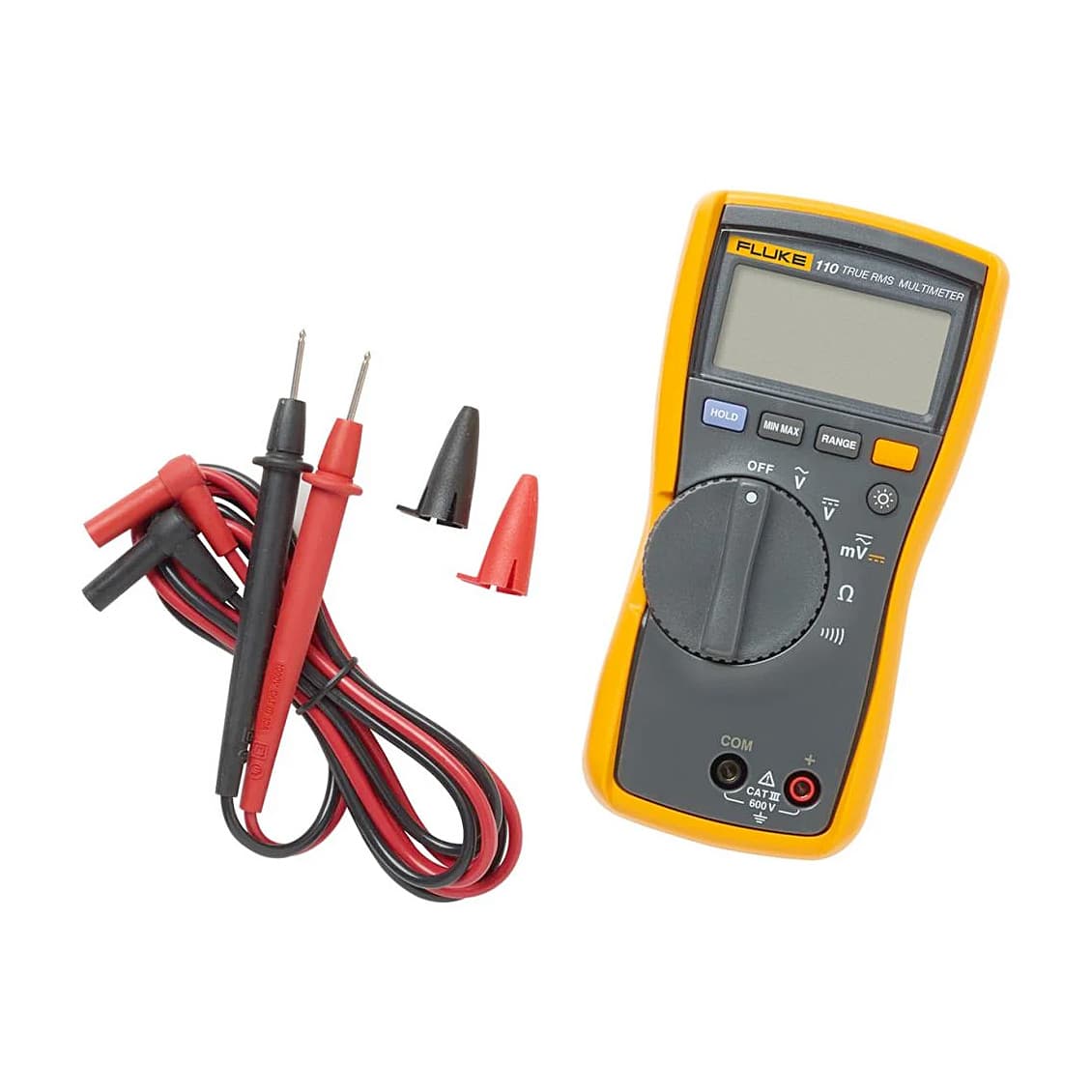

Fluke 110 6000 Counts / 600V True-RMS Digital Multimeter
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Operating: -10 °C to + 50 °C
- Storage: -40 °C to + 60 °C
- Battery: 9 Volt Alkaline, IEC 6LR61
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹9,610 (Incl. of all taxes)
₹8,144 + ₹1,466 GST (18%)
MRP was MRP ₹11,977
Save 32%
3 Business Days
1
90303100
Download Product LeafletNot available
Download Fluke CatalogueNot available
Download Fluke CatalogueNot available
Highlights

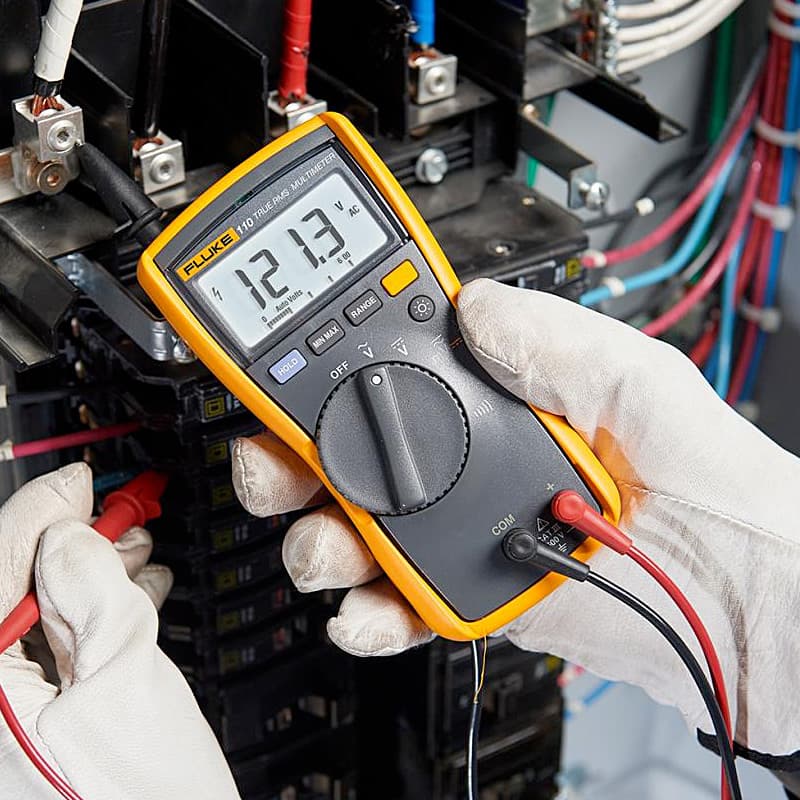

Compact true-rms meter for accurate electrical installation and troubleshooting. The Fluke 110 is a versatile multimeter for electrical measurements and troubleshooting. Trusted by residential and commercial electricians for troubleshooting and maintenance. The 110 is for professional use, where true-rms accuracy is needed.
Features:
- True-RMS ac voltage for accurate measurements on non-linear signals
- Resistance and continuity
- Large white LED backlight to work in poorly lit areas
- Min/Max/Average to record signal fluctuations
- CAT III 600 V safety rated.
Accuracy Specifications:
Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 90 %. The accuracy specifications take the form of: ± ( [ % of Reading ] + [ Counts ] )
| Safety | IEC 61010-1, Pollution degree 2 IEC 61010-2-033, CAT III 600 V |
||
| Accuracy | |||
| Measurement | Range | Resolution | Accuracy ± ([% of reading] + [counts]) |
| DC millivolts | 600.0 mV | 0.1 mV | 0.5 % + 2 |
| DC volts | 6.000 V 60.00 V 600.0 V |
0.001 V 0.01 V 0.1 V |
0.5 % + 2 |
| Accuracy | |||
| Measurement | Range | Resolution | Accuracy ± ([% of reading] + [counts]) |
| AC millivolts1 true-rms | 600.0 mV | 0.1 mV | 1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz) |
| AC volts1 true-rms | 6.000 V 60.00 V 600.0 V |
0.001 V 0.01 V 0.1 V |
1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz) |
| Continuity | 600 Ω | 1 Ω | Beeper on < 20 Ω, off> 250 Ω; detects opens or shorts of 500 μs or longer. |
| Ohms | 600.0 Ω | 0.1 Ω | 0.9 % + 2 |
| 6.000 kΩ 60.00 kΩ 600.0 kΩ 6.000 MΩ |
0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ |
0.9 % + 1 | |
| 40.00 MΩ | 0.01 MΩ | 5 % + 2 |
All ac voltage ranges are specified from 1 % to 100% of range. Because inputs below 1 % of range are not specified, it is normal for this and other true-rms meters to display non-zero readings when the test leads are disconnected from a circuit or are shorted together. For volts, crest factor of ≤ 3 at 4000 counts, decreasing linearly to 1.5 at full scale. AC volts is ac-coupled.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Maximum voltage (between any terminal and earth ground) | 600 V |
|---|---|
| Display | Digital: 6000 counts updates 4/sec |
| Bar graph | 33 segments, updates 32/sec |
| Operating | -10 °C to + 50 °C |
| Storage | -40 °C to + 60 °C |
| Battery | 9 Volt Alkaline, IEC 6LR61 |
| Battery life | 400 hours typical, without backlight |
