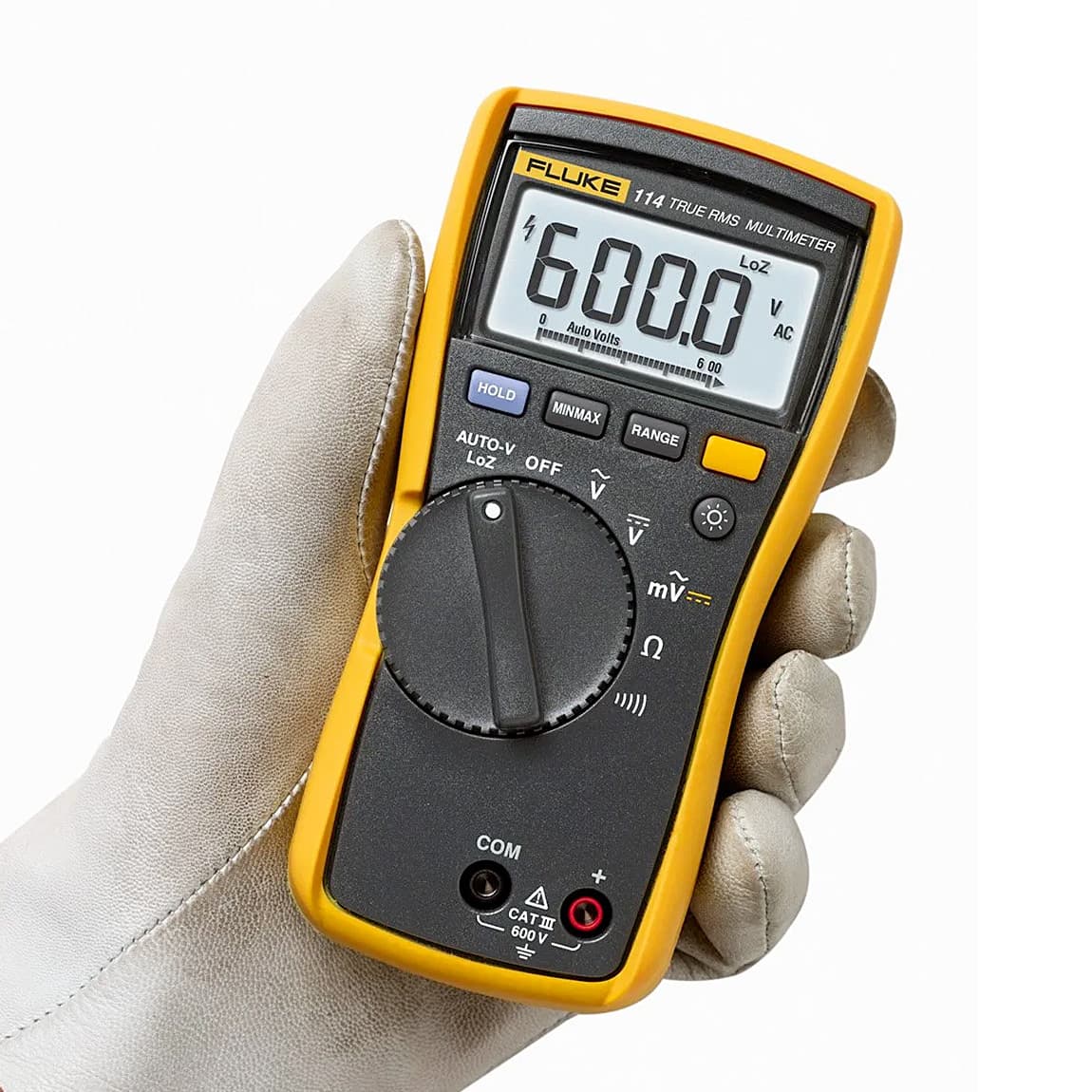

Fluke 114 6000 Counts / 600V True-RMS Electrical Digital Multimeter
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Operating temperature: -10°C to + 50°C
- Storage temperature: -40°C to + 60°C
- Battery type: 9 volt Alkaline, IEC 6LR61
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹24,428 (Incl. of all taxes)
₹20,702 + ₹3,726 GST (18%)
MRP was MRP ₹30,444
Save 32%
3 Business Days
1
90303100
Download Fluke CatalogueNot available
Highlights
Fluke 114 Digital Multimeter Is The Ideal Choice For Go/No-Go Testing
Designed for easy one-handed operation, the compact Fluke 114 True RMS digital multimeter is the perfect troubleshooting tool for go/no go testing. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. And you can use the LoZ function to identify so-called ghost voltage and prevent false readings.
The Fluke 114 displays True-RMS voltage and current readings with 6000 count resolution and tests frequency, continuity, and resistance. A large white LED backlight aids to work in poorly lit areas. And its easy-open battery access door makes battery changes easy. A great choice for everyday troubleshooting, the Fluke 114 Electrical Multimeter is CAT III 600 V safety rated and is a compact True-RMS meter. Fluke 114 multimeters are independently tested for safe use in CAT III 600V environments
Other Useful Features:
- Features a compact ergonomic design for one-handed operation
- Comes with a holster with probe holders for easy storage
- Features manual and automatic ranging
- Safety rated CAT III 600 V
- Fits into optional ToolPak™ magnetic hanger for hands-free operation.
Key Features:
- Ideal Digital Multimeter for “go/no-go” testing
- Features AutoVolt automatic AC/DC voltage selection
- Includes low input impedance to help prevent false readings due to ghost voltage
- Presents a large white LED backlight for working in poorly lit areas
- Measures resistance, continuity, frequency, and capacitance
- Provides Min/Max/Average with elapsed time to record signal fluctuations.

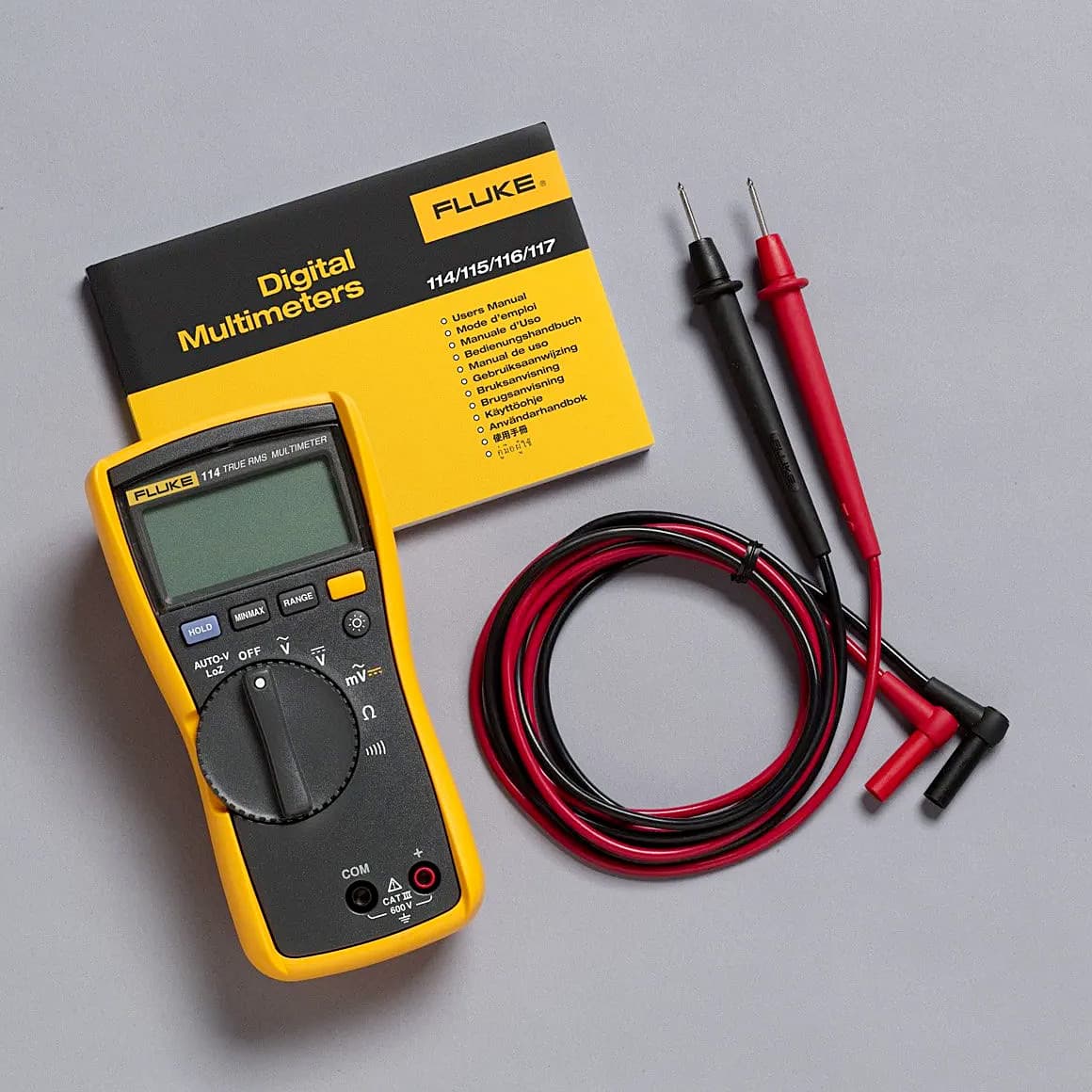

What's Included In This Package:
- Fluke 114 Digital Multimeter
- (1 pair) Test leads
- Holster
- Installed 9 V battery
- Quick reference guide
Specifications:
| Accuracy specifications | ||
| DC millivolts | Range/resolution | 600.0 mV / 0.1 mV |
| Accuracy | ± ([% of reading] + [counts]): 0.5% + 2 | |
| DC volts | Range/resolution | 6.000 V / 0.001 V60.00 V / 0.01 V600.00 V / 0.1 V |
| Accuracy | ± ([% of reading] + [counts]): 0.5% + 2 | |
| Auto volts | Range/resolution | 600.0 V / 0.1 V |
| Accuracy | 2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz) |
|
| AC millivolts1 True RMS | Range/resolution | 600.0 mV / 0.1 mV |
| Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz) |
|
| AC volts1 True RMS | Range/resolution | 6.000 V / 0.001 V60.00 V / 0.01 V600.0 V / 0.1 V |
| Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz) |
|
| Continuity | Range/resolution | 600 Ω / 1 Ω |
| Accuracy | Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer. |
|
| Ohms | Range/resolution | 600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ |
| Accuracy | 0.9% + 1 | |
| Range/resolution | 40.00 MΩ / 0.01 MΩ | |
| Accuracy | 5% + 2 | |
|
||
| Mechanical & General Specifications | ||
| Size | 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in) | |
| Warranty | 3 years |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Maximum voltage between any terminal and earth ground | 600 V |
|---|---|
| Display | Digital: 6,000 counts, updates 4 per second |
| Bar graph | 33 segments, updates 32 per second |
| Operating temperature | -10°C to + 50°C |
| Storage temperature | -40°C to + 60°C |
| Battery type | 9 volt Alkaline, IEC 6LR61 |
| Battery life | 400 hours typical, without backlight |
| Safety | IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: CAT III 600V |
