Fluke 115 6000 Counts / 600V True-RMS Field Technicians Digital Multimeter

Shop all Fluke

SKU: HA.AU.MU.00008

Model: Fluke115

Roll over the image to zoom in

Visit Fluke Store

Key Features

  • Product Type: Multimeter
  • Weight: 550 g
  • Operating temperature: -10°C to + 50°C
  • Storage temperature: -40°C to + 60°C
  • Battery life: 400 hours typical, without backlight
See all product information

ToolBuy Benefits

₹14,297 (Incl. of all taxes)

₹12,116 + ₹2,181 GST (18%)

MRP was MRP ₹17,818

Save 32%

3 Business Days

1

90303100

Download Product LeafletNot available
Download Fluke CatalogueNot available

Highlights

Compact True-RMS Meter For Field Service Technicians

The Fluke 115 field technician’s digital multimeter measures True-RMS voltage and current with plus resistance, continuity, frequency, and capacitance to meet the needs of a wide variety of field service technicians.

The 115 digital multimeter offers the users one-handed operation and a backlit display. The large, easy-to-read digits offer a 6000-count resolution. The 115 provides Min/Max/Average with elapsed time to record signal fluctuations. It also measures:

  • AC and DC voltage to 600V,
  • AC and DC current to 10 A (20 A overload for 30-seconds max).


Features:

  • Compact True-RMS digital multimeter for field service
  • Easy one-handed operation of the meter
  • Min/Max/Average to record signal fluctuations.

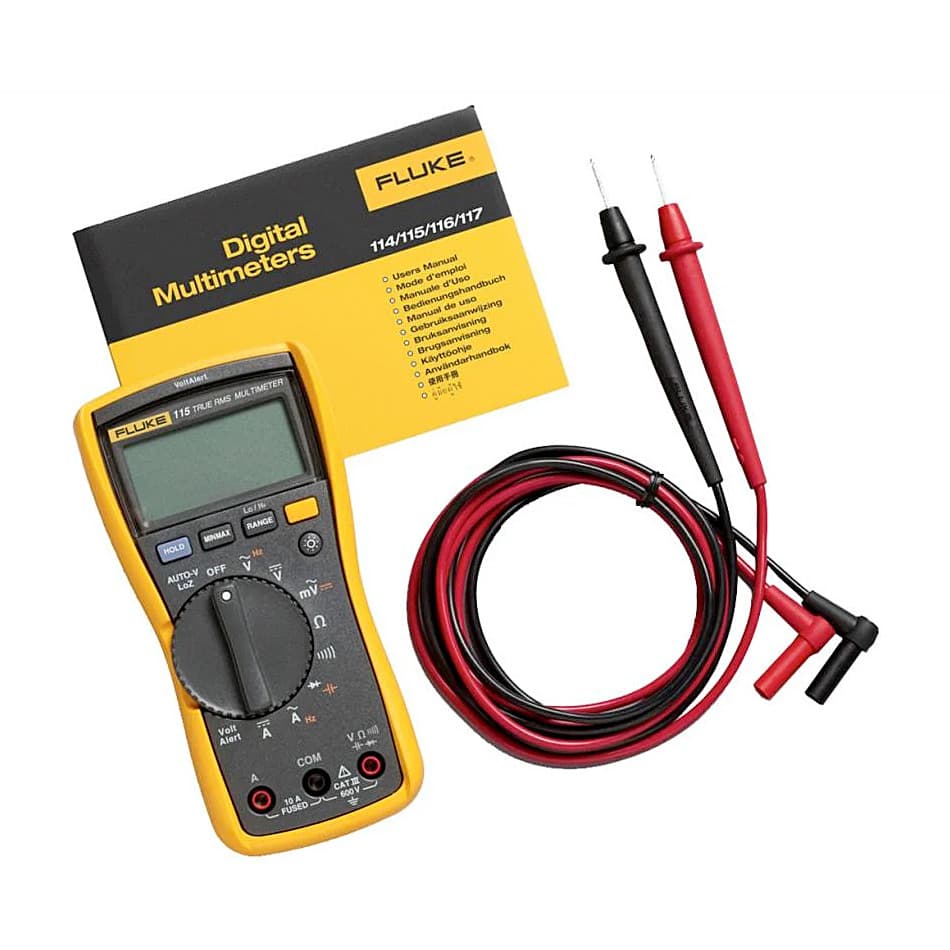

What's Included In This Package:

  • Digital multimeter
  • Holster
  • Installed 9V battery
  • 4 mm PVC-Insulated test lead
  • Quick Reference Guide


Accuracy Specifications:

DC millivolts Range/resolution 600.0 mV / 0.1 mV
Accuracy ± ([% of reading] + [counts]): 0.5% + 2
DC volts Range/resolution 6.000 V / 0.001 V
60.00 V / 0.01 V
600.00 V / 0.1 V
Accuracy ± ([% of reading] + [counts]): 0.5% + 2
AC millivolts1 True RMS Range/resolution 600.0 mV / 0.1 mV
Accuracy 1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz)
AC volts1 True RMS Range/resolution 6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V
Accuracy 1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz)
Continuity Range/resolution 600 Ω / 1 Ω
Accuracy Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of
500 μs or longer.
Ohms Range/resolution 600.0 Ω / 0.1 Ω
6.000 kΩ / 0.001 kΩ
60.00 kΩ / 0.01 kΩ
600.0 kΩ / 0.1 kΩ
6.000 MΩ / 0.001 MΩ
Accuracy 0.9% + 1
Range/resolution 40.00 MΩ / 0.01 MΩ
Accuracy 5% + 2
Diode test Range/resolution 2.00 V / 0.001 V
Accuracy 0.9% + 2
Capacitance Range/resolution 1000 nF / 1 nF
10.00 μF / 0.01 μF
100.0 μF / 0.1 μF
9999 μF / 1 μF
100 μF to 1000 μF
Accuracy 1.9% + 2
Range/resolution > 1000 μF
Accuracy 5% + 20%
Lo-Z capacitance Range 1 nF to 500 μF
Accuracy 10% + 2 typical
AC amps True RMS
(45 Hz to 500Hz)		 Range/resolution 6.000 A / 0.001 A
10.00 A / 0.01 A
Accuracy 1.5% + 3
20 A overload for 30-seconds max
DC amps Range/resolution 6.000 A / 0.001 A
10.00 A / 0.01 A
Accuracy 1.0% + 3
20 A overload for 30-seconds max
Hz (V or A input)2 Range/resolution 99.99 Hz / 0.01 Hz
999.9 Hz / 0.01 Hz
9.999 kHz / 0.001 kHz
50.00 kHz / 0.01 kHz
Accuracy 0.1% + 2
  • All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V.
  • Frequency is AC coupled, 5Hz to 30 kHz for AC voltage.
  • Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.
  • Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current.
  • Temperature Range/Resolution: -40? to 752? / 0.2?.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Fluke 115 6000 Counts / 600V True-RMS Field Technicians Digital Multimeter
Maximum voltage between any terminal and earth ground600 V
DisplayDigital: 6,000 counts, updates 4 per second
Bar graph33 segments, updates 32 per second
Operating temperature-10°C to + 50°C
Storage temperature-40°C to + 60°C
Battery type9 volt Alkaline, IEC 6LR61
Battery life400 hours typical, without backlight
Size167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Warranty3 years
