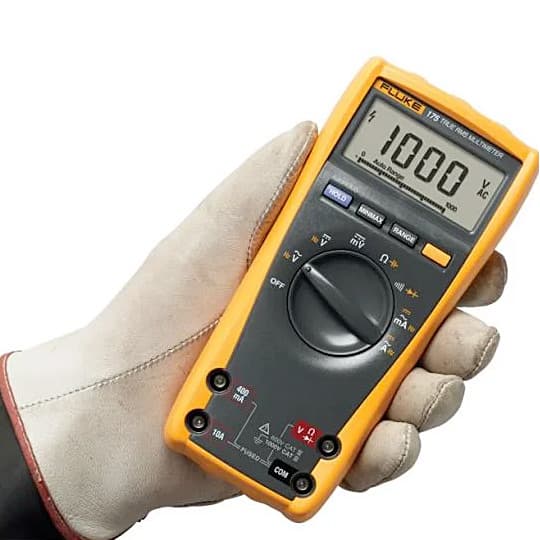

Fluke 175 1000V True-RMS Digital Multimeter

Shop all Fluke

SKU: HA.AU.MU.00013

Model: Fluke175

Roll over the image to zoom in


Key Features

  • Product Type: Multimeter
  • Weight: 420 g
  • Operating temperature: -10°C to +50°C
  • Storage temperature: -30°C to +60°C
  • Warranty: Lifetime
See all product information

ToolBuy Benefits

₹54,348 (Incl. of all taxes)

₹46,058 + ₹8,290 GST (18%)

MRP was MRP ₹67,732

Save 32%



3 Business Days

1

90303100

Download Product LeafletNot available
Download Fluke CatalogueNot available

Highlights

  • Safety rated CAT III 1000 V, CAT IV 600 V
  • Comes with a lifetime warranty
  • Allows closed-case calibration through front panel
  • Includes ergonomic case with integrated protective holster


Key Features:

  • Provides the baseline multimeter features you need for troubleshooting and repairing electrical and electronic systems
  • Delivers accurate true-RMS AC current and voltage plus frequency, capacitance, resistance, continuity, and diode measurements
  • Increases productivity with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-average recording.
  • Fluke 175 is the baseline for industrial measurements: The Fluke 175 True RMS Digital Multimeter delivers the baseline general-purpose features required by professional technicians around the world. You can find problems fast with all the basic troubleshooting measurements such as frequency, capacitance, resistance, continuity, and diode. And Display Hold and Auto Hold will help you capture significant events.
  • Safety rated for industrial use: All inputs on the 175 are protected to IEN61010-1 CAT IV 600 V/CAT III 1000 V. UL, CSA, TÜV listed, and VDE Pending. You can rely on the Fluke 175 for accurate, true-RMS readings through years of reliable service.
  • Need More Accuracy or Temperature Measurements: If you need a higher degree of accuracy or contact temperature measurements click here to see Fluke 177 and Fluke 179 True RMS Digital Multimeters.

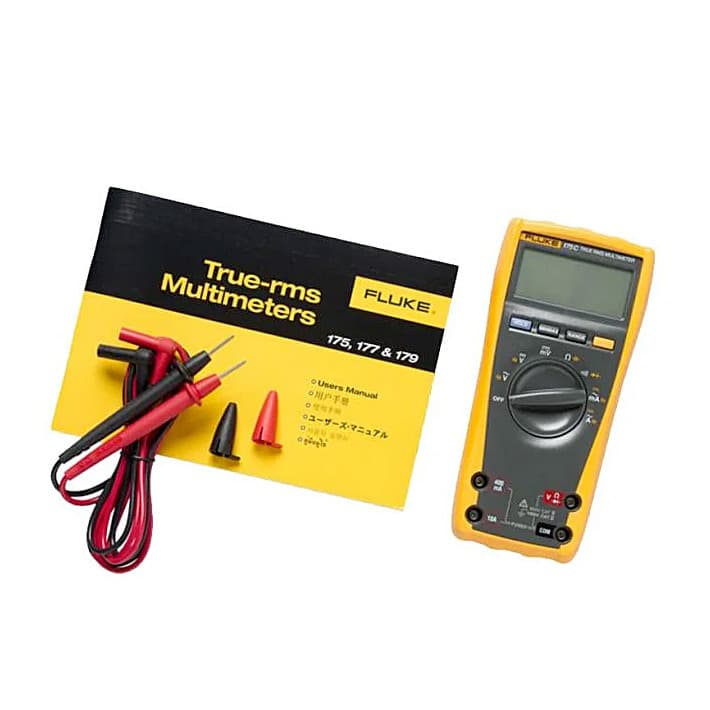

What's Included In This Package:

  • Installed 9V battery
  • Test leads
  • Users manual


Specifications:

Voltage DC Accuracy1 ±(0.15% + 2)
Max. resolution 0.1 mV
Maximum 1000 V
Voltage AC Accuracy1 ±(1.0% + 3)
Max. resolution 0.1 mV
Maximum 1000 V
Current DC Accuracy1 ±(1.0% + 3)
Max. resolution 0.01 mA
Maximum 10 A
Current AC Accuracy1 ±(1.5% + 3)
Max. resolution 0.01 mA
Maximum 10 A
Resistance Accuracy1 ±(0.9% + 1)
Max. resolution 0.1 Ω
Maximum 50 MΩ
Capacitance Accuracy1 ±(1.2% + 2)
Max. resolution 1 nF
Maximum 10,000 µF
Frequency Accuracy1 ±(0.1% + 1)
Max. resolution 0.01 Hz
Maximum 100 kHz
1 Accuracies are best accuracies for each function

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Fluke 175 1000V True-RMS Digital Multimeter
Operating temperature-10°C to +50°C
Storage temperature-30°C to +60°C
Humidity (without condensation)0% – 90% (0°C – 35°C) / 0% – 70% (35°C – 50°C)
Overvoltage categoryEN 61010–1 to 1000 V CAT III EN 61010–1 to 600 V CAT IV
Agency approvalsUL, CSA, TÜV listed and VDE Pending
Size43 x 90 x 185 mm
WarrantyLifetime
Battery lifeAlkaline ~200 hours typical, without backlight
