Fluke 177 1000V True-RMS Digital Multimeter

Shop all Fluke

SKU: HA.AU.MU.00014

Model: Fluke177

Roll over the image to zoom in


Key Features

  • Product Type: Multimeter
  • Weight: 420 g
  • Operating temperature: -10°C to +50°C
  • Storage temperature: -30°C to +60°C
  • Warranty: Lifetime
See all product information

ToolBuy Benefits

₹57,567 (Incl. of all taxes)

₹48,786 + ₹8,781 GST (18%)

MRP was MRP ₹71,744

Save 32%



3 Business Days

1

90303100

Download Product LeafletNot available
Download Fluke CatalogueNot available

Highlights

Fluke 177 True-RMS Digital Multimeter Delivers The Right Features For Electrical Maintenance Experts

With its precision, reliability, and ease of use, the Fluke 177 Digital Multimeter is the preferred solution for professional technicians worldwide. Independently tested for safe use in CAT IV 600 V/CAT III 1000 V environments, the Fluke 177 Includes all the features you need to troubleshoot and repair many problems in electrical and electronic systems.

With the Fluke 177 Digital Multimeter, you get True-RMS voltage and current measurements, 6000-count resolution, manual and automatic ranging, and frequency, capacitance, resistance, continuity, and diode measurements. In addition, the Fluke 177 provides 0.09% basic accuracy, a digital display with an analog bar graph, and a backlight. Plus a limited lifetime warranty.


Key Features:

  • True-RMS digital multimeter with the features professional technicians prefer
  • Increases productivity with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-average recording
  • Measures AC and DC voltage to 1000 V
  • Delivers accurate True-RMS AC current and voltage plus frequency, capacitance, resistance, continuity and diode measurements
  • Safety rated CAT III 1000 V, CAT IV 600 V.


Other Useful Features:

  • Features digital display with backlight for working in dim lighting
  • Allows closed case calibration through the front panel
  • Features an ergonomic case with integrated protective holster
  • Comes with a limited lifetime warranty.

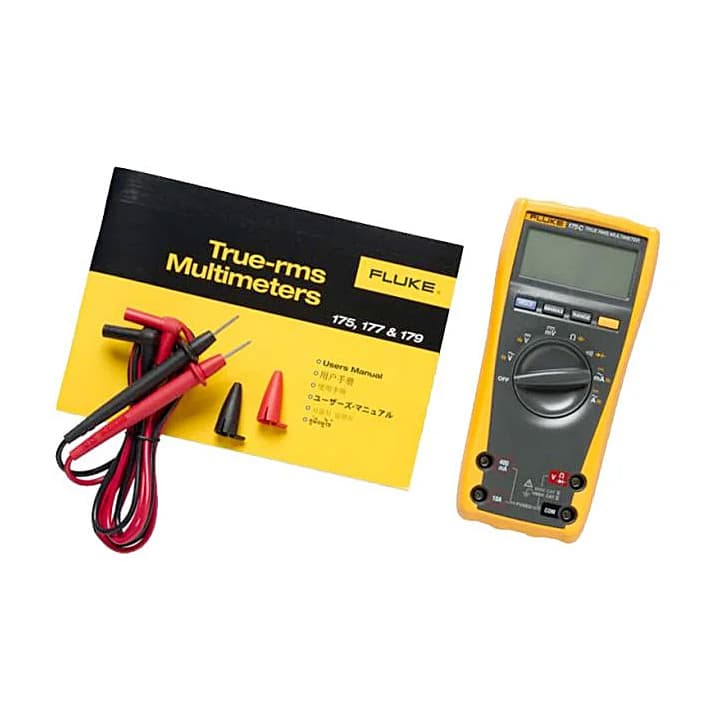

What's Included In This Package:

  • Installed 9V battery
  • Test leads
  • Users manual


Specifications:

Voltage DC Accuracy1 ±(0.09% + 2)
Max. resolution 0.1 mV
Maximum 1000 V
Voltage AC Accuracy1 ±(1.0% + 3)
Max. resolution 0.1 mV
Maximum 1000 V
Current DC Accuracy1 ±(1.0% + 3)
Max. resolution 0.01 mA
Maximum 10 A
Current AC Accuracy1 ±(1.5% + 3)
Max. resolution 0.01 mA
Maximum 10 A
Resistance Accuracy1 ±(0.9% + 1)
Max. resolution 0.1 Ω
Maximum 50 MΩ
Capacitance Accuracy1 ±(1.2% + 2)
Max. resolution 1 nF
Maximum 10,000 µF
Frequency Accuracy1 ±(0.1% + 1)
Max. resolution 0.01 Hz
Maximum 100 kHz

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Fluke 177 1000V True-RMS Digital Multimeter
Operating temperature-10°C to +50°C
Storage temperature-30°C to +60°C
Humidity (without condensation)0% – 90% (0°C – 35°C) / 0% – 70% (35°C – 50°C)
Overvoltage categoryEN 61010–1 to 1000 V CAT III / EN 61010–1 to 600 V CAT IV
Agency approvalsUL, CSA, TÜV listed and VDE Pending
Size43 x 90 x 185 mm
WarrantyLifetime
Battery lifeAlkaline ~200 hours typical, without backlight
