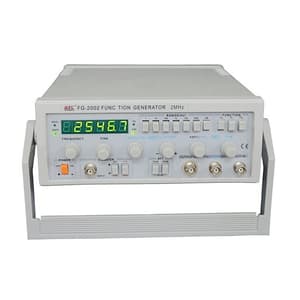

HTC 0.1Hz - 2MHz Function Generator, FG-2002
Roll over the image to zoom in
Key Features
- Product Type: Function Generators
- Package Contents: Power Cord, BNC Line Cable, Manual
- Dimension: 310 (H) x 230 (W) x 90 (D) mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹10,162 (Incl. of all taxes)
₹8,612 + ₹1,550 GST (18%)
MRP was MRP ₹10,765
Save 20%
5 Business Days
1
90303350
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
| Frequency Range | Output : Impedance : 50Ω±10% |
| 0.1Hz-2MHz (FG-2002) | Amplitude : no less than 20vp-p (Empty Load) |

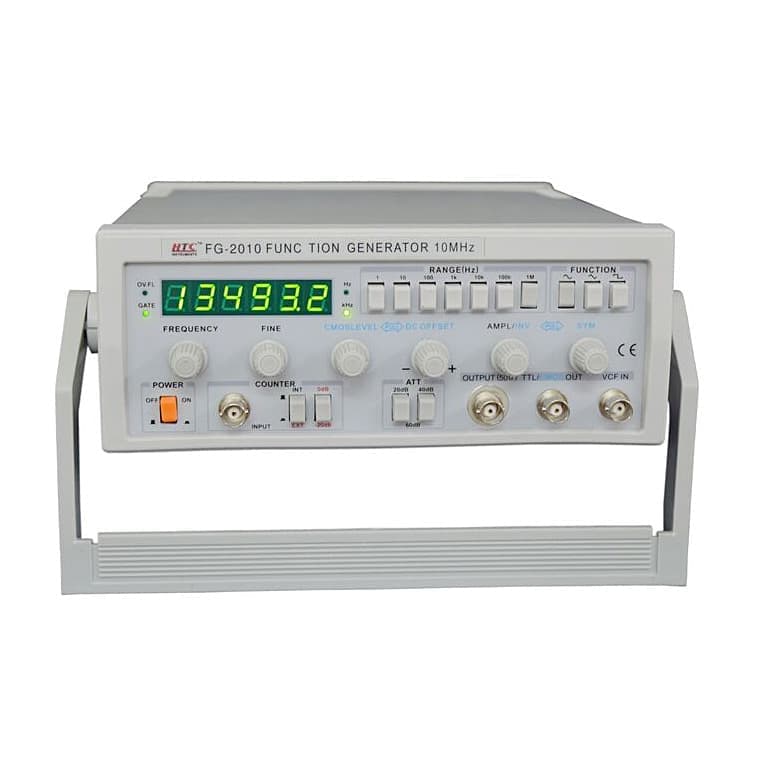

| 0.1Hz-10MHz (FG-2010) | Attenuation : 20dB 40dB |
| Waveforms | DC bias 0-±10V (Continuously adjustable) |
| Sine wave, Square wave, Triangle wave, Positive & Negative Sawtooth and Positive & Negative Pulse | Adjustment range of symmetry |
| 90:10-10:90 | |
| Square-wave front | VCF input |
| 0.1Hz-2MHz<100ns | Input Voltage : 5V-0V±10% |
| 0.1Hz-10MHz<35ns | The maximum Voltage ratio : 1000:1 |
| Sine wave Distortion | Input Signa 1: DC-1KHz |
| <1% (10HZ-100KHz) | Frequency meter |
| Frequency response | Measuring Range : 1Hz-20MHz |
| 0.1Hz-100KHz≤±0.5dB | Input impedance : no less than 1MΩ/20pF |
| 100KHz-5MHz≤±1dB | Sensitivity : 100m Vrms |
| 100KHZ-2MHz≤±1dB | The maximum input : 150V (AC+DC) with attenuator |
| TTL/CMOS output | |
| Level : TTL pulse low level is no more than | Input attenuation : 20dB |
| 0.4V, high level is no less than 3.5V | Measurement error : ≤0.003%±1 digit |
| Rissing Time : no more than 100ns | Voltage : 220V±10% (110V±10%) |
| Frequency : 50Hz±2Hz (220V±10%) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Package Contents | Power Cord, BNC Line Cable, Manual |
|---|---|
| Dimension | 310 (H) x 230 (W) x 90 (D) mm |
