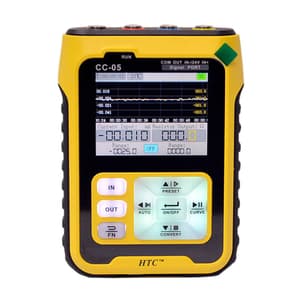

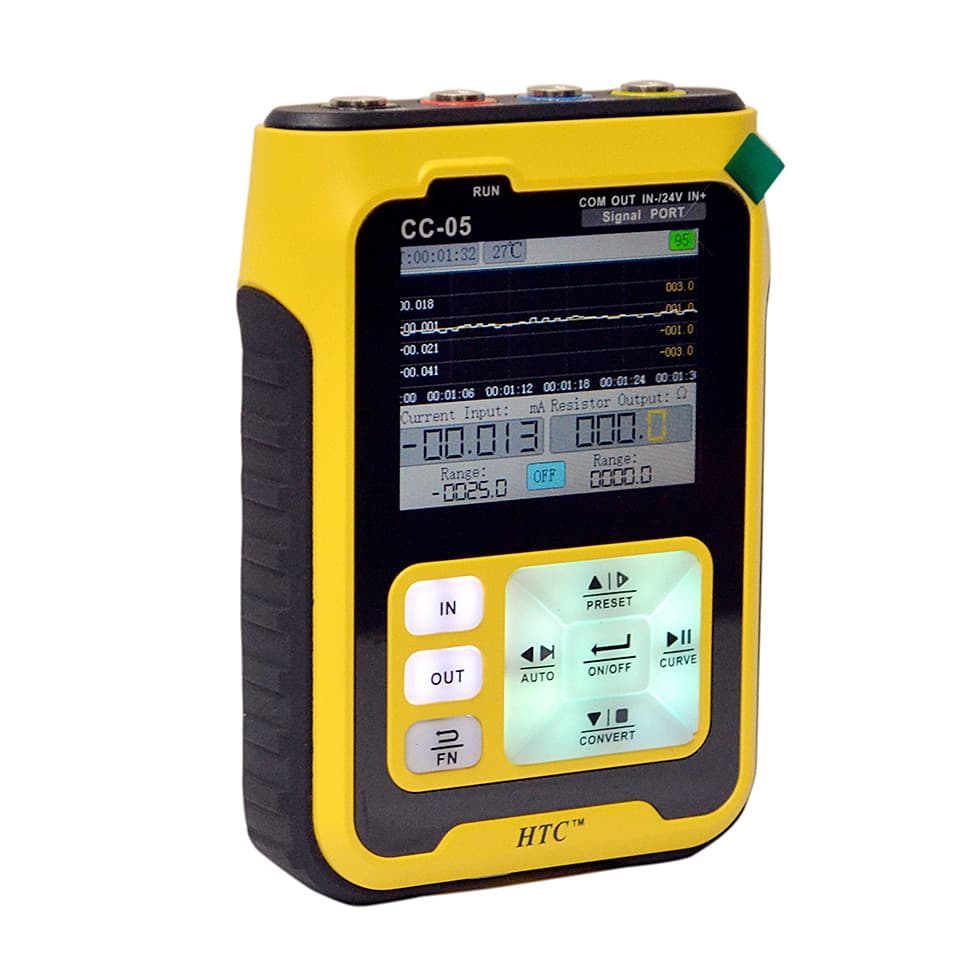

HTC 0 - 24V Voltage Multifunction Calibrator, CC-05

Shop all HTC

SKU: ME.EL.PR.00078

Model: CC05

Roll over the image to zoom in

Visit HTC Store

Key Features

ToolBuy Benefits

₹14,674 (Incl. of all taxes)

₹12,436 + ₹2,238 GST (18%)

MRP was MRP ₹15,545

Save 20%

5 Business Days

1

90303390

Download Product LeafletNot available
Download HTC CatalogueNot available

Highlights

  • Accuracy ± 0.02%
  • Power : 3.7V Rechargeable Battery

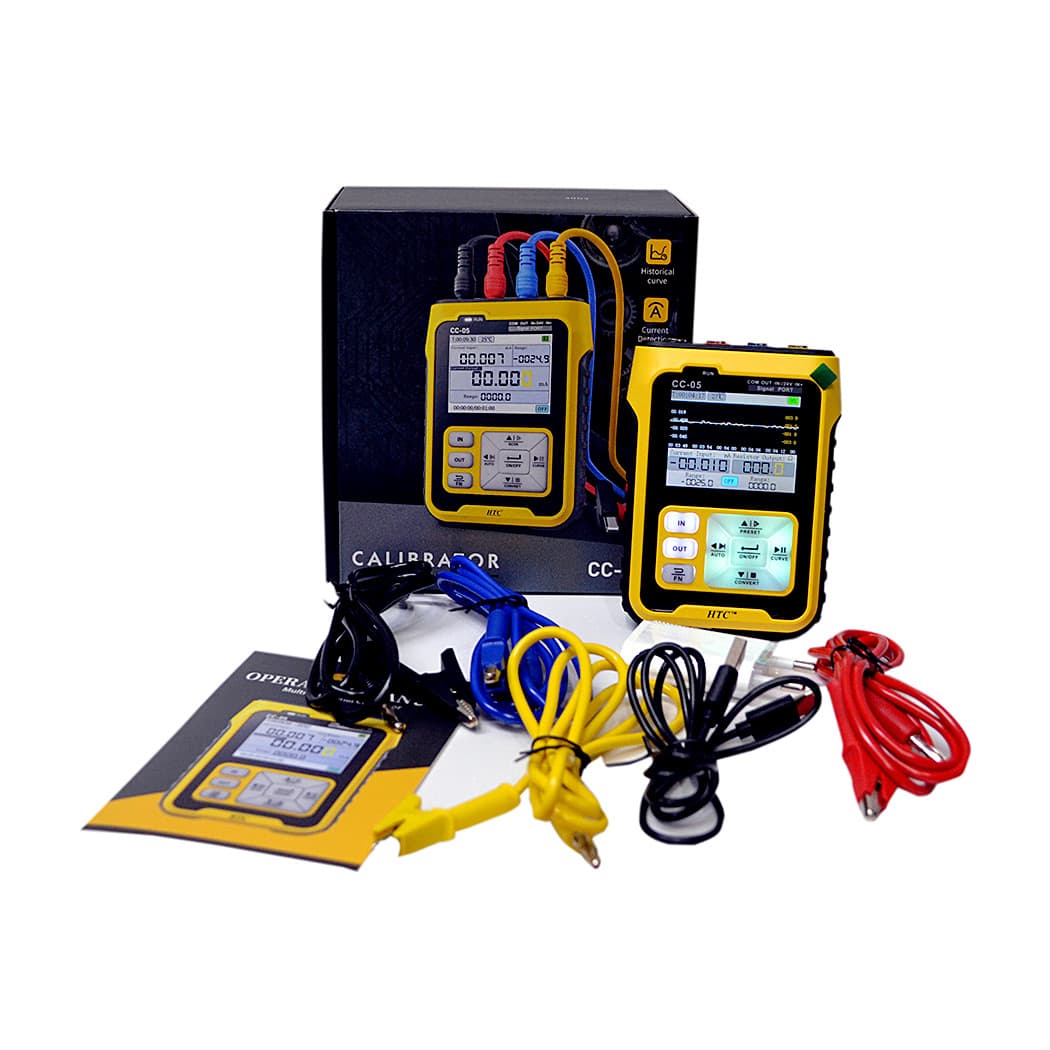

Package Contents:

  • CC-05 Multi-Functional Calibrator,
  • Instruction Manual,
  • Charger with cable,
  • Test leads x 4 (Black, Red, Blue, Yellow).


Technical Data:

Signal Range Precision Resolution Impedance
Current (mA) 0~24mA ± (0.02%+0.003) 0.001mA 100Ω
Voltage (V) 0~24V ± (0.02%+0.003) 0.001V 500K
Passive (XMT) 0~24mA ± (0.02%+0.003) 0.001mA 100Ω
24V loop 0~24mA ± (0.1%+0.005) 0.00mA 100Ω
FRQ (Hz) 0~9999Hz ± 2% 5digit 1MK
mV -10~100mV ± (0.03%+0.003) 0.01mV 2K
TC (TC-S) 0~1760ºC ± (0.2%+1) 1ºC 2K
TC (TC-B) 0~1810ºC ± (0.5%+1) 1ºC 2K
TC (TC-E) 0~990ºC ± (0.2%+1) 1ºC 2K
TC (TC-K) 0~1320ºC ± (0.2%+1) 1ºC 2K
TC (TC-R) 0~1760ºC ± (0.3%+1) 1ºC 2K
TC (TC-J) 0~1190ºC ± (0.3%+1) 1ºC 2K
TC (TC-T) 0~390ºC ± (0.2%+1) 1ºC 2K
TC (TC-N) 0~1290ºC ± (0.2%+1) 1ºC 2K
TC (WRe3/25) 0~2320ºC ± (0.2%+1) 1ºC 2K
TC (WRe3/26) 0~2320ºC ± (0.2%+1) 1ºC 2K
RES (ohm) 0~390Ω ± (0.2%+1) 0.1Ω /
Pt100 -200~650ºC ± (0.5%+1) 0.1ºC /
Cu50 -20~150ºC ± (0.5%+1) 0.1ºC /

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for HTC 0 - 24V Voltage Multifunction Calibrator, CC-05
Accuracy± 0.02%
Power3.7V Rechargeable Battery
