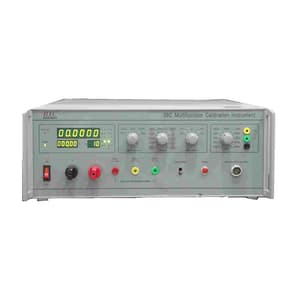

HTC 250 - 1000V Multifunction Calibrator, CC-09
Roll over the image to zoom in
Key Features
- Product Type: Process Calibrators
- Stability (DC): <0.01% FS / 3min
- Stability (AC): <0.02% FS / 3min
- Ripple: <0.2%
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,49,664 (Incl. of all taxes)
₹4,65,817 + ₹83,847 GST (18%)
MRP was MRP ₹6,85,025
Save 32%
5 Business Days
1
90303390
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- 5½ Digit LED.
- Calibration of DC Volt, Amp Meters.
- Calibration of AC Volt, Amp Frequency Meters.
- Calibration of Resistance Meters, Clamp & Multi Meters.
Package Contents:
- Key Adjuster,
- Power Cod,
- Pair of Output Leads 50A,
- Briefcase.
| Turns Ratio | 100 / 1 | 100 / 1 |
| Input Max. | 5A | 10A |
| Current | 500A | 1000A |
| Clamp Jaw | > 20mm | > 28mm |
| DC Impedance | 0.7Ω | 0.9Ω |
| DC Burden | 5A / 3.5V | 10A / 2.5V |
| AC Burden | 5A / 6V | 10A / 5V |
| Frequencies | DC to 60Hz | DC to 60Hz |
| Accuracy | ±0.3% rdg | ±0.3% rdg |
Technical Data:
| Output | Range | Accuracy |
| Voltage | 250mV, 1V, 2.5V, 5V, 10V, 25V, 50V, 100V, 250V, 500V, 1000V | DCV: ±(0.02% of reading +0.01% FS) ACV: ±(0.05% of reading +0.02% FS) |
| Current | 100μA, 500μA, 2.5mA, 10mA, 25mA, 100mA, 250mA, 1A, 2.5A, 10A, 50A | DCI: ±(0.03% of reading +0.02% FS) ACI: ±(0.05% of reading +0.03% FS) |
| Frequency | 50Hz, 60Hz, 400Hz, 1kHz | <0.1% |
| Resistance | 10, 24, 50, 100, 240, 500(Ω) 1, 2, 4, 5, 10, 25 (kΩ) 10x1k, 24x1k, 50x1k 100x1k, 240x1k, 500x1k, 1kx1k, 2.4kx1k, 5kx1k 10kx1k, 24kx1k |
±(0.2% of reading +20mΩ) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Dimension | 190 (L) x 480 (W) x 545 (H) mm |
|---|---|
| Stability (DC) | <0.01% FS / 3min |
| Stability (AC) | <0.02% FS / 3min |
| Ripple | <0.2% |
| Power Supply | 230V AC, 50 (60) Hz |
| Distortion | <0.5% |
