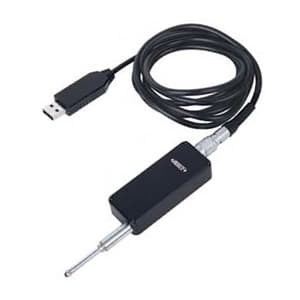

Insize 0 - 12.5 mm High Precision Digital Linear Gauge, 7130-10L
Roll over the image to zoom in
Key Features
- Product Type: Linear Gauge
- Range (mm): 0 - 12.5 mm
- Repeatability: 0.5μm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹15,467 (Incl. of all taxes)
₹13,108 + ₹2,359 GST (18%)
MRP was MRP ₹31,209
Save 58%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Scale type: optical grating
- Absolute encoder, the original data remains after power off
- Digital signal output, amplifier is not required
- Measuring force: ≤1.5N
- Dust/waterproof: IP43/IP66
- Baud rate: 9600 (can be customized)
- Cable length: 3m (can be customized)
- Optional accessory: software of linear gauge (code: 7130-SOFTWARE, 8 probes can be connected at the same time, need to purchase
the corresponding hubs)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0 - 12.5 mm |
|---|---|
| Repeatability | 0.5μm |
| Accuracy | 1μm |
| Resolution | 0.1μm |
| Outgoing Cable Direction | Vertical |
| Output Signal | RS232, TTL Level |
