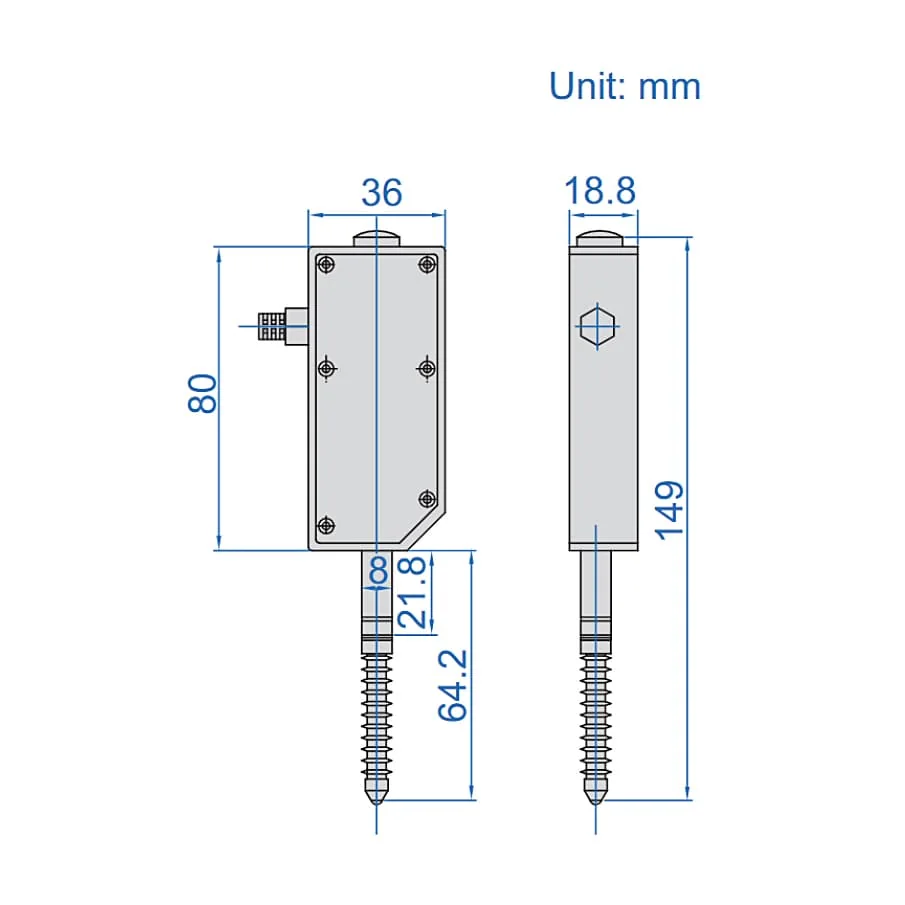

Insize 12 mm / 0.47 inch Capacitance Linear Gage, 7107-11
Roll over the image to zoom in
Key Features
- Product Type: Linear Gauge
- Measuring Range: 12 mm / 0.47"
- Resolution: 0.01 mm / 0.0004"
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹14,122 (Incl. of all taxes)
₹11,968 + ₹2,154 GST (18%)
MRP was MRP ₹17,097
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Capacitance type linear encoder
- Shock-proof, water proof, dust proof, suitable for high speed movement, long working life
- Optional: display unit 7106-1A, multichannel interface box 7107-1 or 7107-2
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Measuring Range | 12 mm / 0.47" |
|---|---|
| Resolution | 0.01 mm / 0.0004" |
| Accuracy | 20μm |
| Hysteresis | 10μm |
| Driving Type | Spring |
| Measuring Force | 1.5N |
| Measuring Principle | Capacitance Type Linear Encoder |
| Voltage | 5V |
| Sampling Frequency | 100 Times / Sec |
| Working Life | 10 Million Times |
| Dust/Waterproof | IP65 |
| Cable Length | 2m |
| Data Output | RS232 |
