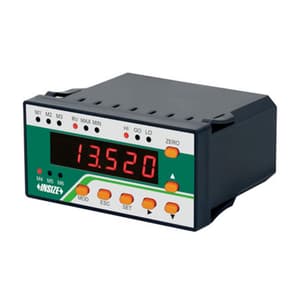

Insize 6 Digits Display Unit For Capacitance Linear Gages, 7106-1A
Roll over the image to zoom in
Key Features
- Product Type: Linear Gauge
- Display: 6 Digits
- Power Supply: 9~24V DC
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹15,800 (Incl. of all taxes)
₹13,390 + ₹2,410 GST (18%)
MRP was MRP ₹19,129
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights

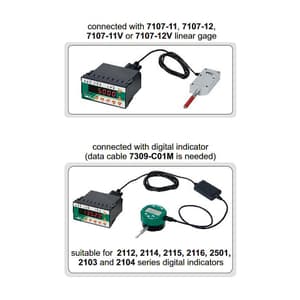

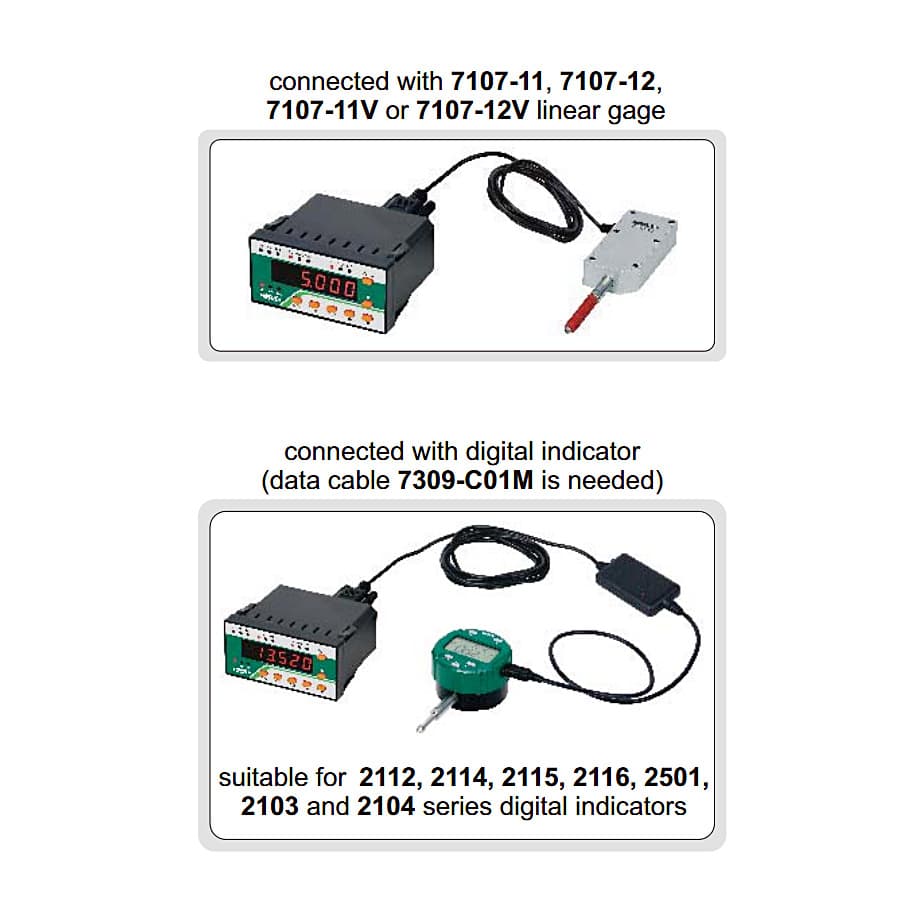

- Can be connected with 7107-11, 7107-12, 7107-11V or 7107-12V linear gage, can also be connected with digital indicator (data cable 7309-C01M is needed)

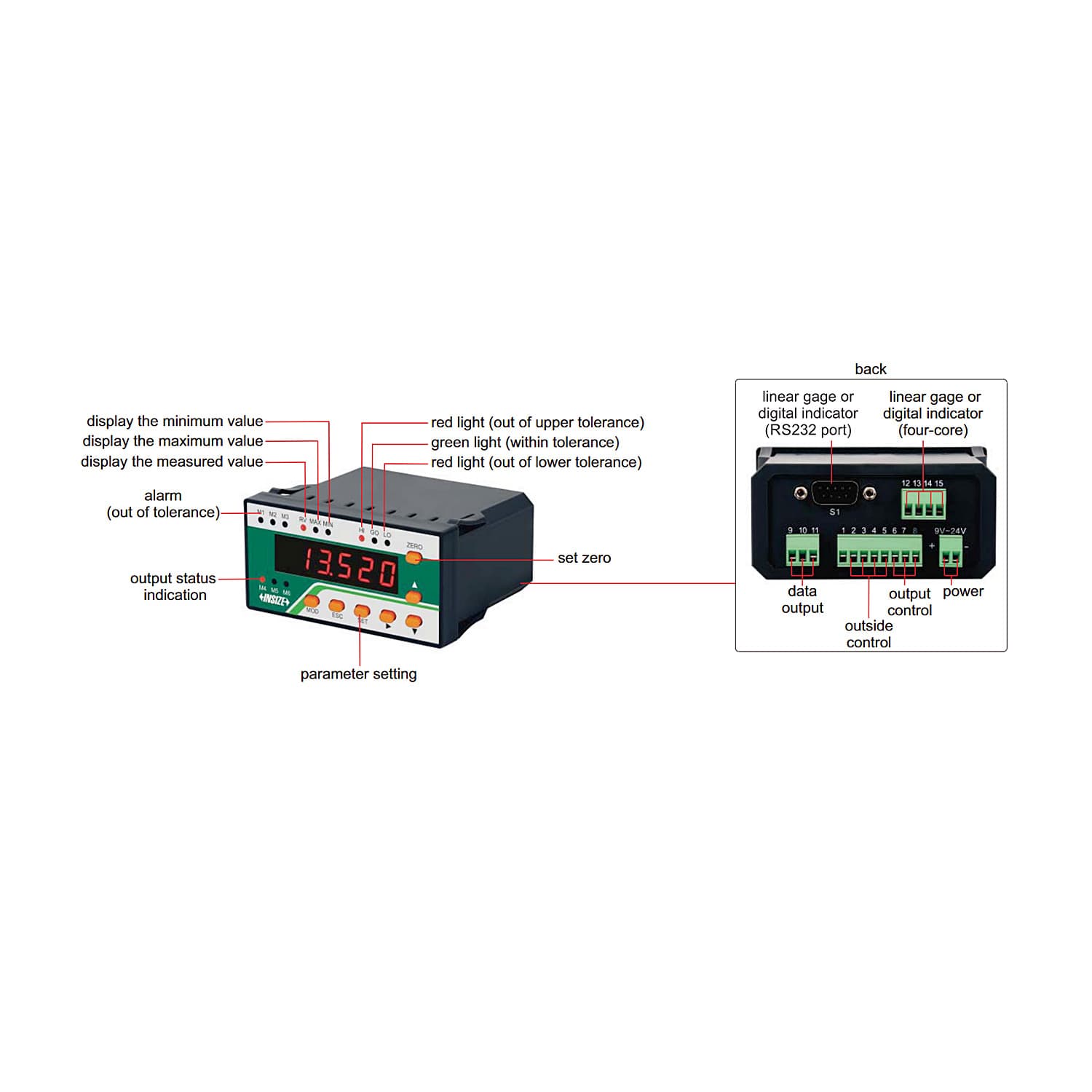

- Set tolerance and make judgment (out of upper tolerance, within tolerance, out of lower tolerance), output the judgment to control outside devices, control from outside (set zero, hold reading and collect data)

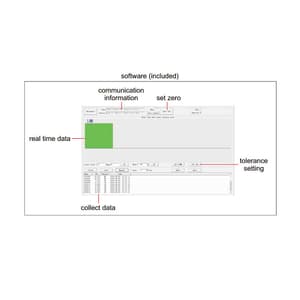

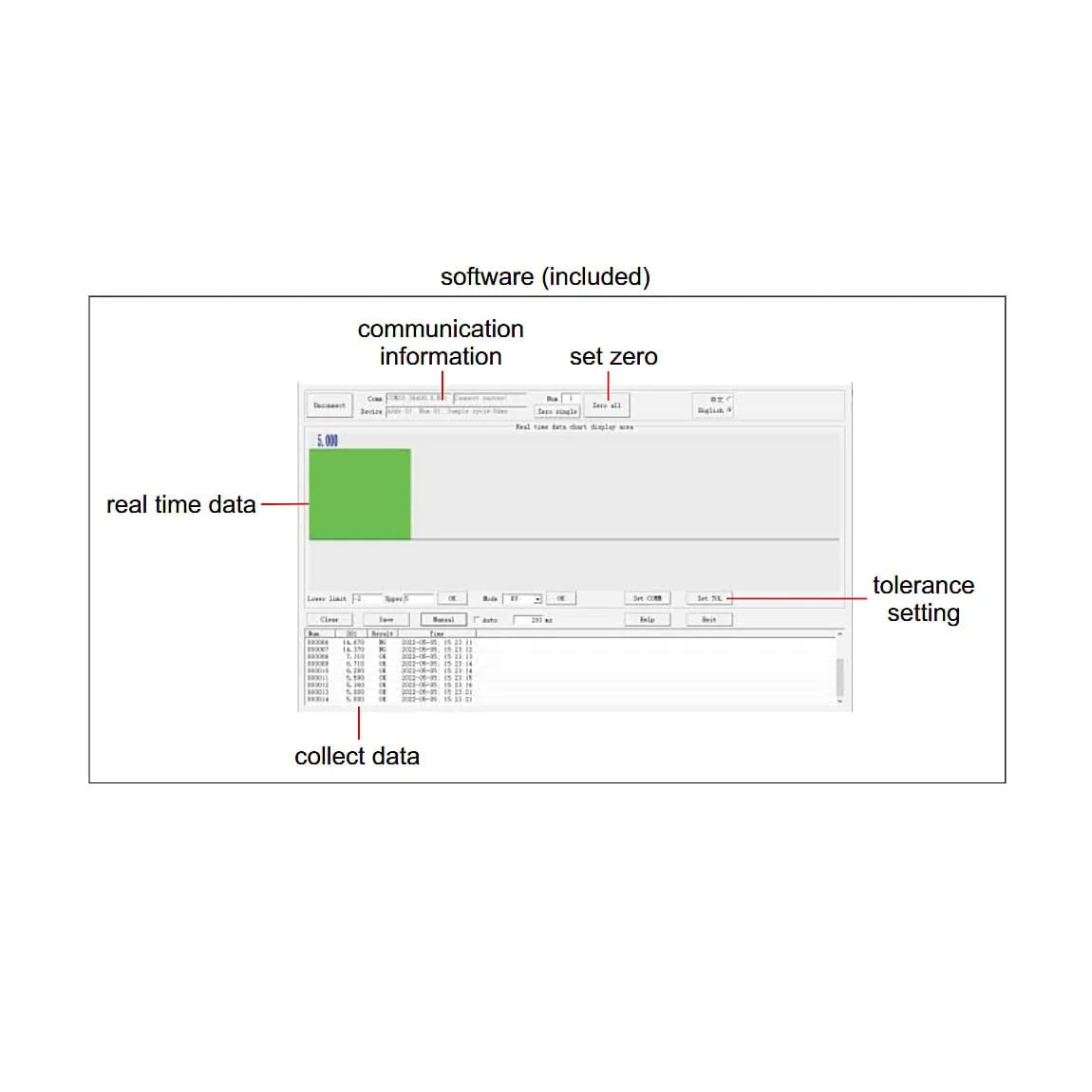

- Software of display unit (included): in the software, it is possible to set tolerance and show judgment (red when out of tolerance, green when within tolerance), set zero, collect data manually or automatically (time is adjustable), output data to Excel, print report
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Display | 6 Digits |
|---|---|
| Quantity of Linear Gage or Digital Indicator to be Connected | 1 pc |
| Tolerance | Set Tolerance & Make Judgment with Alarm & Lights (Out of Upper Tolerance, Within Tolerance, Out of Lower Tolerance) |
| Output Control | output the tolerance judgment (out of upper tolerance, within tolerance, out of lower tolerance) to control outside devices |
| Outside Control | Control the Disolay Units from Outside (Set Zero. Hold Readina & Collect Data) |
| Data Output | Connect to Computer Software & Serial Communication |
| Power Supply | 9~24V DC |
