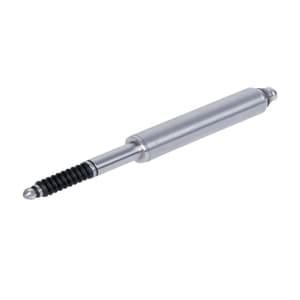

Insize 12 mm Optical Grating Type Linear Gauge, 7138-125
Roll over the image to zoom in
Key Features
- Product Type: Linear Gauge
- Weight: 60 g
- Range (mm): 12 mm
- Resolution: 0.5μm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹70,294 (Incl. of all taxes)
₹59,571 + ₹10,723 GST (18%)
MRP was MRP ₹85,102
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Linear gauge type: optical grating
- Dust/waterproof: IP67
- Optional accessory: display unit (code: 7131-1A, can output keyboard signal, transmit data to excel, word, txt etc., also can output serial signal and transmit data to serial communication software)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 12 mm |
|---|---|
| Resolution | 0.5μm |
| Accuracy | ±2μm |
| Power Supply | DC 5V, 300mA |
| Output Signal | TTL Signal |
| Operation Environment | 0-40°C, 20~80%RH (non-condensing) |
| Storage Environment | -10~60°C, 20~80%RH (non-condensing) |

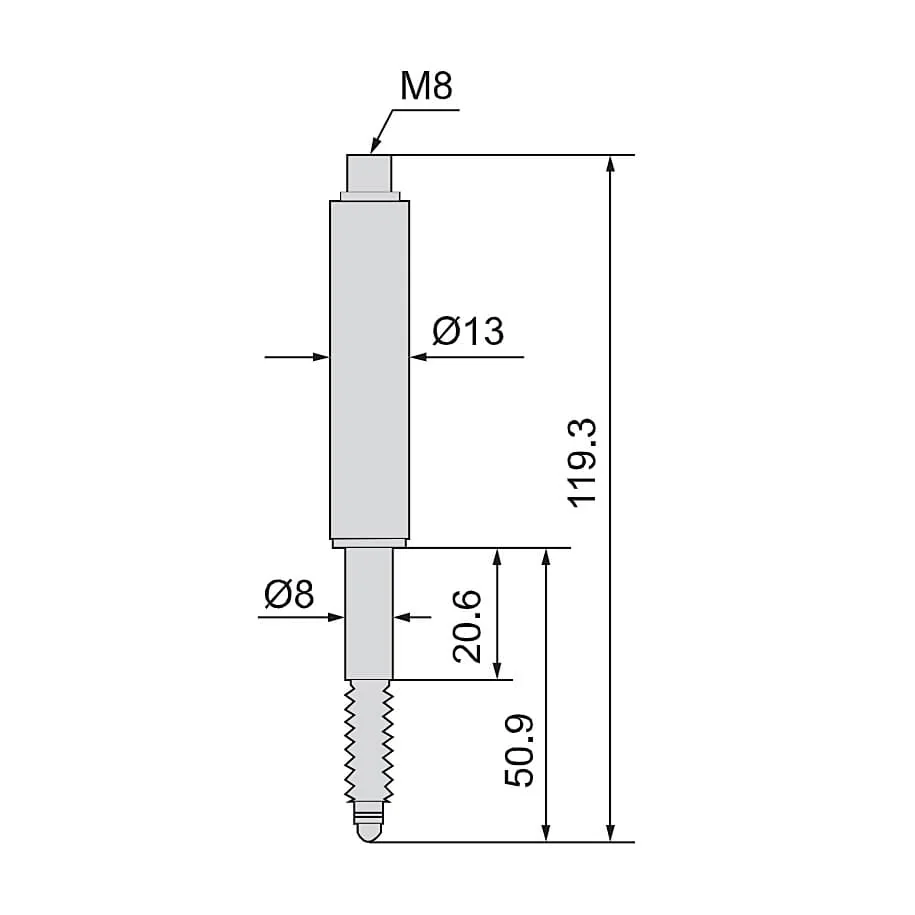

| Dimension (mm) | Ø13 x 120 mm |
