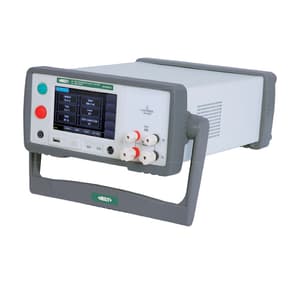

Insize 5A - 40A AC Ground Resistance Tester, 9460-GR40
Roll over the image to zoom in
Key Features
- Product Type: Earth/Ground Resistance Tester
- Weight: 7 kg
- Frequency: 50Hz, 60Hz
- Output Voltage: <6V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,26,920 (Incl. of all taxes)
₹1,07,559 + ₹19,361 GST (18%)
MRP was MRP ₹1,53,655
Save 30%
5 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- 5-inch LCD touch screen display
- Comparator function: sound and light alarms for upper and lower limit
- User correction function
- Keyboard lock function
Technical Data:
| Current | Range | AC 5A - 40A |
| Resolution | 0.1A | |
| Accuracy | ±(2%+5d) | |
| Resistance Test | Range | 0 - 600m ohm |
| Resolution | 0.1m ohm | |
| Accuracy | ±(2%+5d) | |
| Output Power |
|
What's Included In This Package:
- 1x AC Ground Resistance Tester

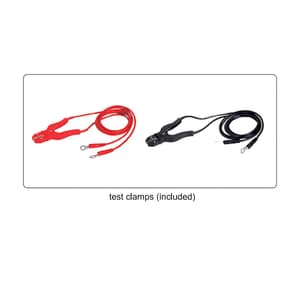

- 2x Test Clamp
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Frequency | 50Hz, 60Hz |
|---|---|
| Output Voltage | <6V |
| Time | 0 - 999.9s |
| Interface | Handler Interface, RS-232C Interface |
| Power Supply | 110V/220V AC, 50Hz / 60Hz |
| Dimensions (L x W x H) | 320 x 250 x 120 mm |
