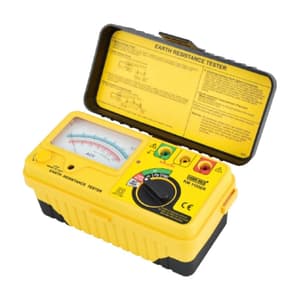

Kusam-Meco 0 - 1200 Ohms Range Analogue Earth Resistance Tester, KM 1105ER
Roll over the image to zoom in
Key Features
- Product Type: Earth/Ground Resistance Tester
- Weight: 600 g
- Earth Resistance Range: 0-12 Ohms / 0-120 Ohms / 0-1200 Ohms
- Earth voltage Range: 0 - 30V AC
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹25,016 (Incl. of all taxes)
₹21,200 + ₹3,816 GST (18%)
MRP was MRP ₹26,500
Save 20%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights

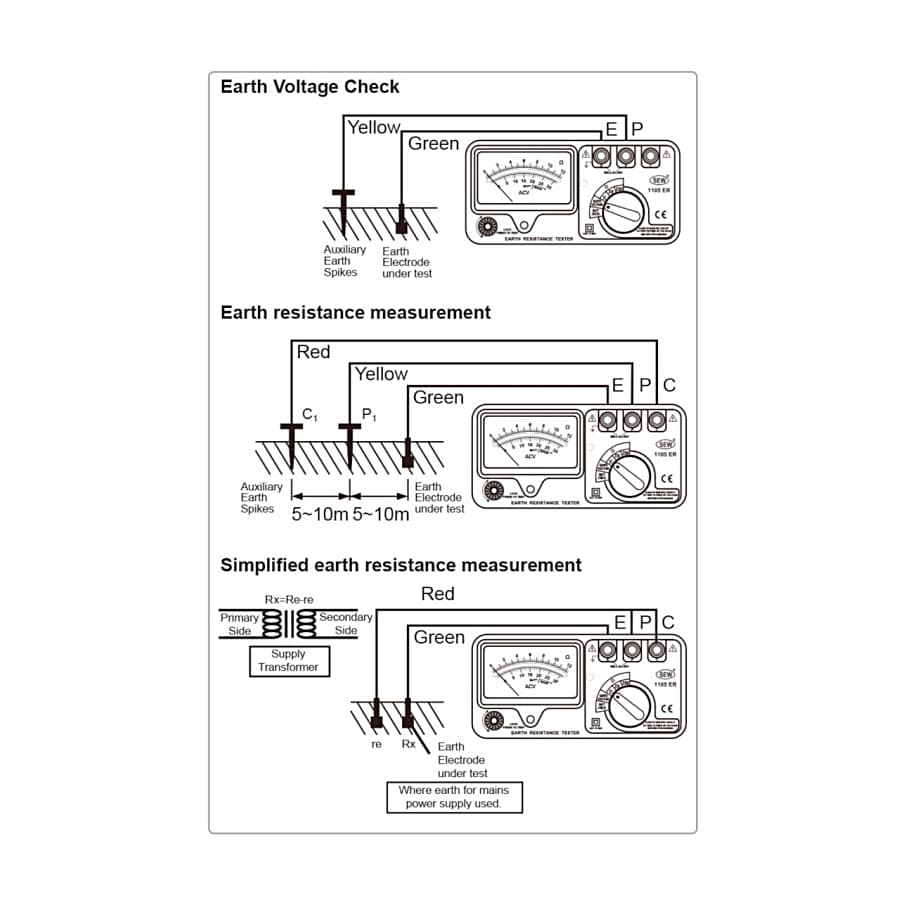

- Capable of measuring earth resistance and earth voltage.
- 2mA measuring current permits the testing of earth resistance without tripping earth leakage current breakers in the circuit under test.
- In addition to facilitating precision measurement, test leads for simplified two-wire measuring system also are supplied as standard accessories.
- Battery operated
- Battery life indicator
- Calibration performed with supplied test leads.
Safety Standard:
- EN 61010-1 CAT IV 30V EN 61326-1
Package Content:
- Instruction Manual
- Test Leads (Red - 15m, Yellow - 10m & Green - 5m)
- Auxiliary Earth Spikes
- Simplified Measurement Probe
- Shoulder Belt
- Batteries
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Earth Resistance Range | 0-12 Ohms / 0-120 Ohms / 0-1200 Ohms |
|---|---|
| Earth voltage Range | 0 - 30V AC |
| Open Circuit Indication | LED Will Be Unlit |
| Power Source | 1.5V (AA) X 8 |
| Accuracy | ± 3% of full scale (Earth Resistance) / ± 2.5% of full scale (Earth Voltage) |
| Measuring System | Earth Resistance By Constant Current Inverter 820Hz, 2mA Approx |
| Dimensions (LxWxD) | 175 x 85 x 75 mm |
