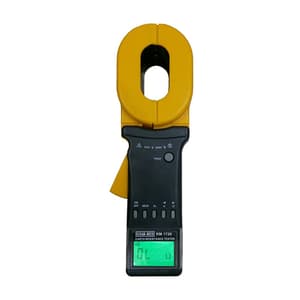

Kusam-Meco 0.01 - 1200 Ohms / 4 Digit Clamp-On Type Earth Resistance Tester With PC Interface, KM 1720+
Roll over the image to zoom in
Key Features
- Product Type: Earth/Ground Resistance Tester
- Weight: 1.16 g
- Jaw Opening: 65 x 32 mm
- Operating Temperature: -20°C ~ 55°C
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹34,126 (Incl. of all taxes)
₹28,920 + ₹5,206 GST (18%)
MRP was MRP ₹36,150
Save 20%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
The new KM-1720+ Earth Resistance Tester is our company’s efforts for quality & the pursuit of excellence through continuous innovation and improvement of the old product to a complete upgrade.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- The new design, panel 6 button operation, the consistent performance.
- An increase of sound and light alarm, “beep - beep - beep -” alarm sound.
- Increase the interference signal recognition indicator.
- Improved test stability
- Lower power consumption: Maximum operating current not exceeding 50mA.
Application:
- Earthing of electric power and distribution system.
- Telecom system earthing.
- Earthing of lightning rod and oil depot.
- CAT V network earthing
- Earthing of multi-storied building and warehouse etc.
- Earth Pit Resistance
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Screen | 4 Digit LCD, 47 x 28.5 mm In Length |
|---|---|
| Jaw Opening | 65 x 32 mm |
| Calibration | Automatic Self Calibration |
| Operating Temperature | -20°C ~ 55°C |
| Operating Humidity | 10% ~ 90% RH |
| Protection Grade | Double Insulation |
| Sound & Light Alarm | "beep - Beep - Beep -" Alarm Sound, Flashing Alarm Symbol, By AL Key To Open, Close, Set |
| Range Selection | Automatic |
| PC Interface | RS232 Interface |
| External Magnetic Field | < 40 A/m |
| External Electric Field | < 1 V/m |
| Sampling Time | 1 Second |
| Measurement Resistance Frequency | > 1KHz |
| Max. Resistance Measurement Resolution | 0.001 Ohms |
| Resistance Measurement Range | 0.01 - 1200 Ohms |
| Current Measurement Range | 0.00 mA - 20.0 A |
| Current Measurement Resolution | 0.05 mA |
| Measured Current Frequency | 50/60 Hz |
| Storable Measurement Data | 99 Groups |
| Setting Range of Resistance Alarm Critical Value | 1 - 199 Ohms |
| Setting Range of Current Alarm Critical Value | 1 - 499 mA |
| Power Supply | 6 VDC (4 X 5# Alkaline Battery) |
| Dimension (LxWxD) | 285 x 85 X 56 mm |
