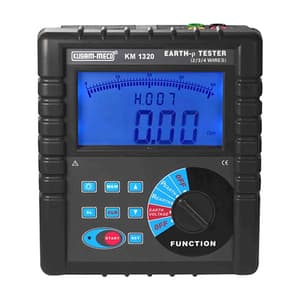

Kusam-Meco 1m - 100m Earth Resistance Soil Resistivity Tester, KM 1320

KM 1320 Earth Resistance Soil Resistivity Tester is specially designed and manufactured for measuring earth resistance, soil resistivity, earth voltage and AC voltage. Adopting the latest digital and micro-processing technology, precise 4-pole, 3-pole and simple 2-pole methods for earth resistance measurement importing FFT and AFC technology, with a unique function of anti-interference capability and the ability to adapt to the environment, consistency of repeat testing, to ensure high precision, high stability and reliability for prolonged measure, which is widely used in electric power, telecommunications, meteorology, oil field, construction, lightning protection, industrial electrical equipment and other earth resistance, soil resistivity, earth voltage, AC voltage measurement.

KM 1320 Earth Resistance Soil Resistivity Tester is composed of a host machine, monitoring software, testing wires, auxiliary ground pillars, communication wires and others. The large LCD display of the host machine has with blue backlight & bar graph indicating that can be seen clearly. At the same time, it can store 300 sets of data, fulfilling historical inquiry and online real-time monitoring through monitoring software, dynamic display, alarm indicator, and with functions like historical data access, reading, preservation, report forms, printing and so on.

Features:

• Function: Measurement of 2/3/4-pole earth resistance, soil resistivity, earth voltage, AC voltage
• Measuring Mode: Precise 4-pole measurement, 3-pole measurement, simple 2-pole measurement
• Measuring Method - Earth Resistance: rated current change-pole method, measurement current 20mA Max / Soil Resistivity: 4-pole measurement / Earth Voltage: average rectification(between P(S)-ES)
• Shift - Earth Resistance: 0.00Ω-30.00kΩ, automatic shift / Soil Resistivity: 0.00Ω-9000kΩ, automatic shift
• Measuring Indicator: During measurement, LED flash indicator, LCD count-down display & Progress bar indicator
• Measuring Rate: Earth voltage (About 3 times/second); Earth Resistance & Soil Resistivity (About 5 seconds/time)
• Measuring Times: Over 5000 times (Short-circuit test, Interval time should be at least 30 seconds)
• RS232 Interface: RS232 interface, software supervision, and storage data can be uploaded to a computer, saved or printed.
• Data Storage: 300 sets, “MEM” icon storage indicator, flash display “FULL” icon to indicate storage is full
• Interference Test: Recognize interference signal automatically, “NOISE” icon display when interference voltage exceeds 5V
• Battery Voltage: When the battery voltage decreases to about 7.5V, the battery voltage low icon will display, reminding to replace the battery
• Power Consumption - Standby: about 20mA (Backlight shut off) / Boot and with backlight: about 45mA (25mA without backlight) / Measurement: about 100mA (Backlight shut off)
• Data Hold: Data hold function “HOLD” icon display
• Data Access: Data read function: “READ” icon display
• Overflow Display: Exceeding measuring range overflow function: “OL” icon display
• Auxiliary Earthing Test: Can measure auxiliary earth resistance, 0.00KΩ-30kΩ(100R+rC<50kΩ, 100R+rP<50kΩ)
• Alarm Function: When the measuring value exceeds the alarm setting value, there is an alarm Sound
• Battery Voltage: When the battery voltage decreases to about 7.5V, Battery Voltage low icon will display, Reminding to replace the battery
• Overload Protection - Measuring earth resistance: between each interface of C(H)-E, P(S)-ES, AC 280V/3 seconds
• Protection Type: IEC61010-1 (CAT ? 300V, CAT IV 150V, Pollution 2), IEC61010-031, IEC61557-1 (Earth resistance), IEC61557-5 (Soil resistivity), JJG 366-2004

Package Content:

• Standard testing wire 4nos
• Simple testing wire 2nos
• Earth rods 4pcs
• Battery
• Manual Software CD
• RS232 Communication cable
• Carrying case
