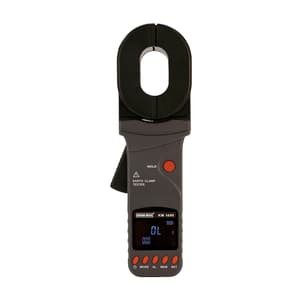

Kusam-Meco 0 - 1200 Ohms Range Clamp Ground Resistance Tester, KM 1690

Clamp ground resistance tester is a new generation of groundless pile measurement methods that our company's technical team meticulously developed. It uses a brand new generation of LCD, black screen backlight display and microprocessor technology to measure the grounding resistance through an inductive method.

When measuring a grounded system with a loop, it is not necessary to disconnect the ground lead wire and no need for auxiliary electrodes. It is safe and fast. Widely used in telecommunications, electricity, meteorology, computer rooms, oil fields, power distribution lines, iron tower transmission lines, gas stations, factory grounding networks, lightning rods and so on.

The instrument has the test precision, fast, simple, stable, reliable and other features. Clamp ground resistance tester is microprocessor controlled, and accurately detects ground resistance. It uses a fast filtering technique to minimize interference. At the same time stores 300 groups of data, with unique features such as numerical maintenance and intelligent alarm prompts.

Features:

• New black screen design, luxury
• Ω + A same-screen display
• Quick self-test function without waiting
• Using fast filtering technology, strong anti-interference ability
• New design, long-life clamp head
• 300 sets of storage
• Explosion-proof Type
• Function: Ground resistant test, Loop resistance test & leakage current test
• Data Storage: 300 Groups, the symbol “MEM” gives an indication, “FULL” mark will flash to indicate the memory has been full Data Storage Data Review "MR" symbol indication when reviewing data
• Overflow Display: Exceed measurement range overflow function: “OL ” symbol display
• Interference Test: Automatic identify interference signal, "NOISE" symbol indication when the interference current is large
• Alarm Function: Alarm when the measured value exceeds the alarm setting value
• Battery Voltage: Real-time display of battery power, reminding timely charging when battery voltage is low
• Automatic shut-down: "APO" instruction, automatic shutdown after 5 minutes boot

Safety:

• IEC61010-1(CAT III 300V, CAT IV 150V, Pollution Degree 2); IEC61010-031; IEC61557-1 (grounding resistance)

Packages Content:

• 5# battery
• Calibration ring
• Instruction Manuals
• Instrument box
