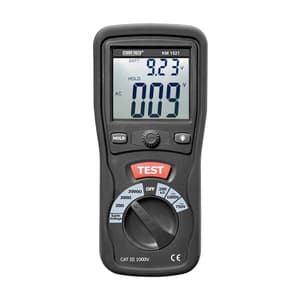

Kusam-Meco 20 - 2000 Ohms Digital Earth/Ground Resistance Tester, KM 1521
Roll over the image to zoom in
Key Features
- Product Type: Earth/Ground Resistance Tester
- Weight: 700 g
- Resistance Range: 20 - 2000 Ohms
- Earth Voltage: 200V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹13,830 (Incl. of all taxes)
₹11,720 + ₹2,110 GST (18%)
MRP was MRP ₹14,650
Save 20%
3 Business Days
1
90309090
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
Electronic Digital Earth Resistance Tester is direct replacement of the conventional hand generator type tester. It is designed for measurement of the resistance of earthing used in the electrical equipment as well as for measurement of ground resistivity. It can be used for measurements of the other low regular and liquid resistances. It can also be used for measurement of voltage AC, voltage DC and resistance. This instrument has wide application for testing earthing installation in power based industries, telecommunication networks and electrical traction systems etc.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Meets IEC10101, CAT III 1000V
- Large dual display with back light
- Test hold function for easy operation
- Zero adjustment
- Low Battery Indication
Technical Data:
| Function | Range (Ω) | Max. Resolution (Ω) | Accuracy |
| Earth resistance | 20Ω | 0.01Ω | ±(2%rdg ± 10digits) |
| 200Ω | 0.1Ω | ±(2%rdg ± 3dgts) | |
| 2000Ω | 1Ω | ±(2%rdg ± 3dgts) | |
| Earth Voltage | 200V | 0.1V | ±(3%rdg ± 3dgts) |
| AC Voltage (40Hz-400Hz, 820Hz) | 750V | 1V | ±(1.2%rdg ± 10dgts) |
| Input Impedance (AC / DC Voltage) | 10MΩ | ||

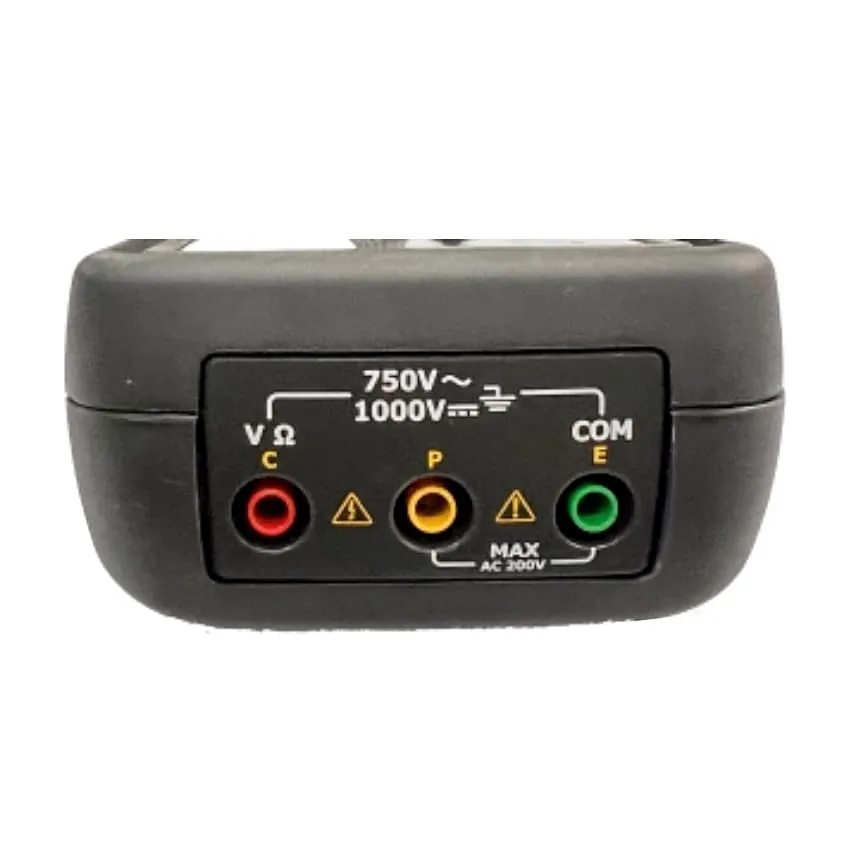

| Overload Protection | 750Vrms (AC Voltage) / 1000Vrms (DC Voltage & Resistance) | ||
| Resistance | 200kΩ | 0.1kΩ | ±(1.0%rdg ± 2dgts) |
Package Content:
- 1x Earth Ground Resistance Tester
- 6x AA Battery
- 1x Rubber holster
- 2x 3-wire cable and iron rod
- 1x User Manual
- 1x Carrying case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Resistance Range | 20 - 2000 Ohms |
|---|---|
| Earth Voltage | 200V |
| AC Voltage | 750V |
| Continuity Test | < 40 Ohm (Active Sound Level), < 200mA (Test Current) |
| Operating Temperature | 0oC ~ 40oC (< 80%R.H.) (32 ~ 104°F) |
| Storage Temperature | -10oC ~ 60oC (< 70%R.H.) (14 ~ 140°F) |
| Display | 3-1/2 Digit 2000 Counts |
| Sampling Rate | 2.5 times per second |
| Test Frequency | 820Hz |
| Leakage Current | 2mA |
| Power Source | 6x 1.5V "AA" Battery |
| Dimensions (L x W x H) | 200 x 92 x 50 mm |
