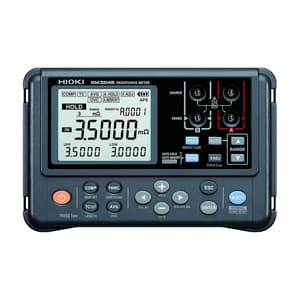

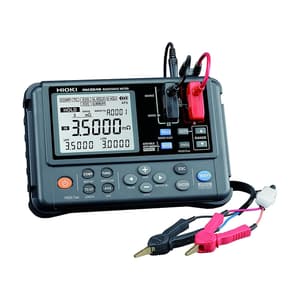

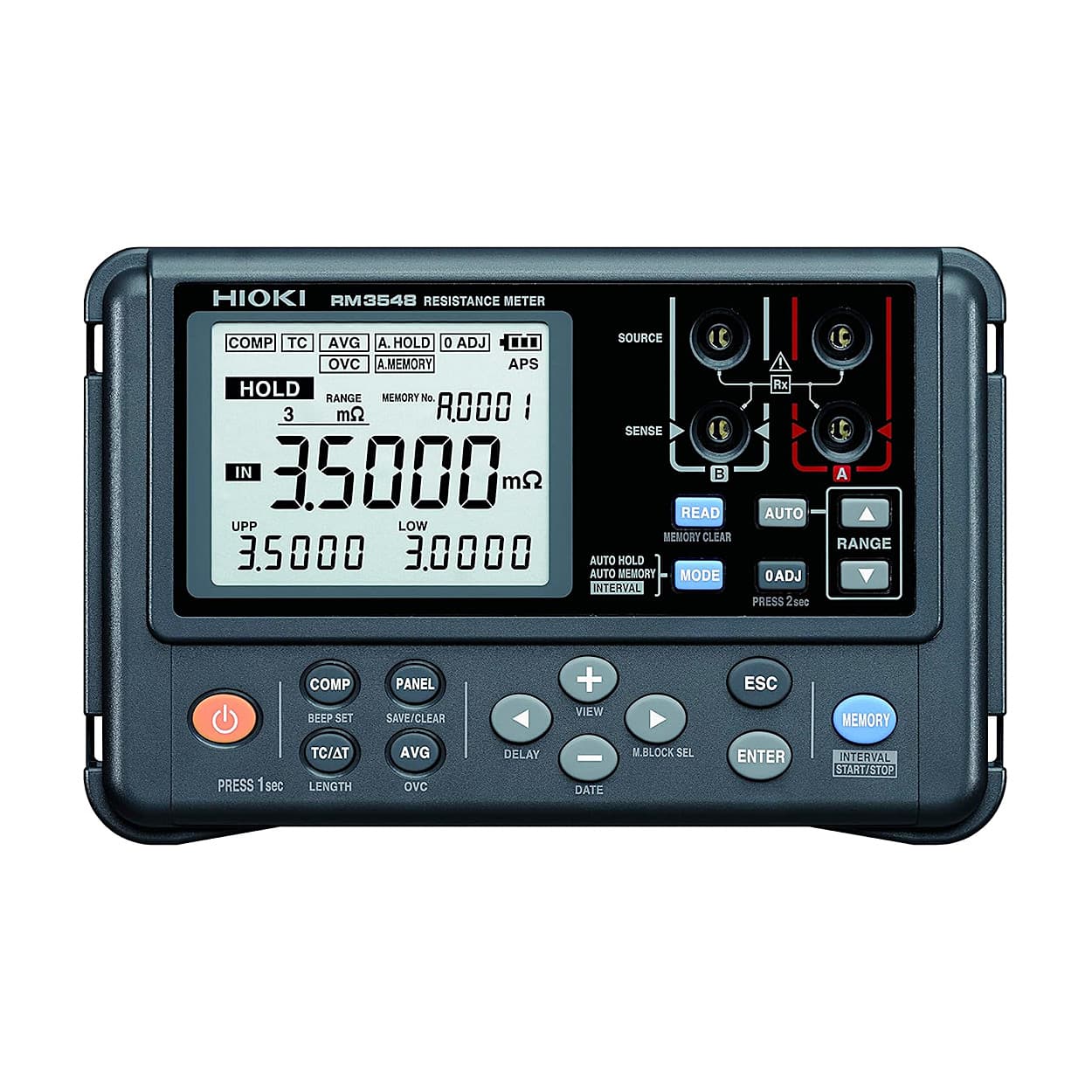

Hioki 3M Ohms / 5.5 V DC High Precision Portable Resistance Meter, RM3548
Roll over the image to zoom in
Key Features
- Product Type: Earth/Ground Resistance Tester
- Weight: 770 g
- Open-terminal voltage: 5.5 V DC max.
- Measurement speed: Fixed
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹66,539 (Incl. of all taxes)
₹56,389 + ₹10,150 GST (18%)
MRP was MRP ₹66,340
Save 15%
5 Business Days
1
–
Download Product LeafletNot available
Download Hioki CatalogueNot available
Download Hioki CatalogueNot available
Highlights
Hioki DC resistance meters measure a broad range of resistance values at a high level of precision. The RM3548 is a high-precision, portable resistance meter capable of measuring resistance levels from microohms to megaohms, and is ideal for the testing and maintenance of large equipment,
For example, measuring the winding and weld resistances in large motors and stators for hybrid and electric vehicles. High-precision Portable Resistance Meter Measures from µΩ to MΩ
Key Features:
- 0.02 % basic accuracy, 0.1 μΩ max. resolution, 1A max. testing current
- Measure from 0.0 μΩ (testing current 1 A) to 3.5 MΩ
- Easily record up to 1,000 data points in memory simply by applying the instrument’s probes
- Smoothly capture temperature-rise test data using interval measurement
- Portable design is ideal for maintenance and testing of large equipment
| Resistance range | 3 mΩ (3.5000 mΩ display Max., 0.1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display Max., 100 Ω resolution), 10 steps Measurement accuracy: ±0.020 % rdg. ±0.007 % f.s. |
| Testing current | (at 3 mΩ range) 1 A DC to (at 3 MΩ range) 500 nA DC |
| Temperature measurement | -10.0 to 99.9°C, accuracy: ±0.50°C (Temperature Sensor Z2002 and RM3548 combined accuracy) |
| Functions | Temperature correction, temperature conversion, offset voltage compensation (OVC), comparator (ABS/REF%), length conversion, judgment sound setting, auto hold, auto power save (APS), Averaging, panel store/panel load, USB communication interface (RM3548 internal memory is recognized as a mass storage device when connected to a PC) |
| Memory storage | Number of recordable data points: (manual/auto) Up to 1,000, (interval) Up to 6,000; Interval: 0.2 to 10.0s (0.2s steps); Acquisition of data from memory: display, USB mass storage (CSV, TXT files) |
What's Included In This Package:
- 1x Clip type lead L2107
- 1x Temperature sensor Z2002
- 8x LR6 Alkaline battery
- 1x Instruction manual
- 1x USB Cable(A-to-mini B type)
- 1x Strap
- 1x Spare fuse
|

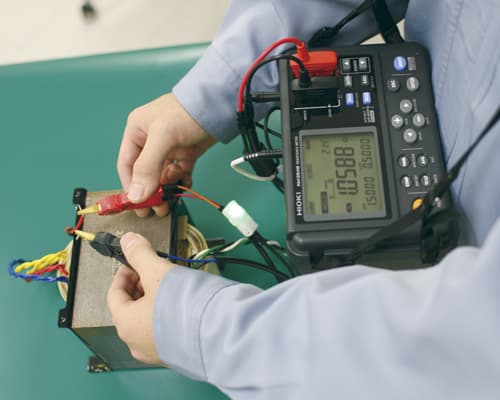

Portable resistance tester that’s ideal for low-resistance measurement and testing of large transformers and motors This resistance tester features a portable design that’s easy to use when performing maintenance work in the field. You can wear the instrument over your neck with the included strap, leaving both hands free to hold the clip-type leads while making measurements. The instrument can be powered by eight AA alkaline batteries for about 10 hours of measurement. (Operating time varies with measurement conditions.) |
|

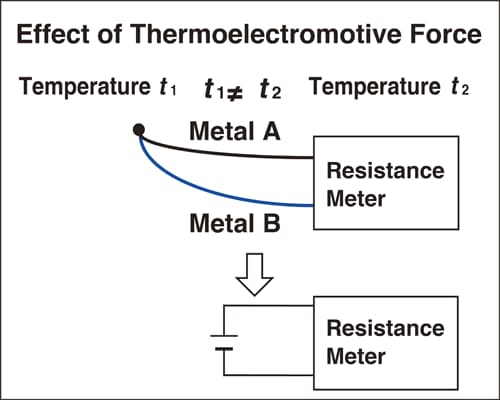

Reduce the effects of thermoelectromotive force with the offset voltage correction Thermoelectromotive force refers to the potential difference that occurs at junctions between different metals (see figure). Specifically, the phenomenon occurs where measurement probes and measurement targets come into contact, and at connections between measuring instruments and measurement leads. The magnitude of this thermoelectromotive force varies with the temperature of the measurement environment, increasing as the temperature difference grows.The RM3548 includes an offset voltage correction function that applies the measurement current in both the positive and negative directions and then uses the resulting detected voltages to eliminate the effects of thermoelectromotive force. |
|

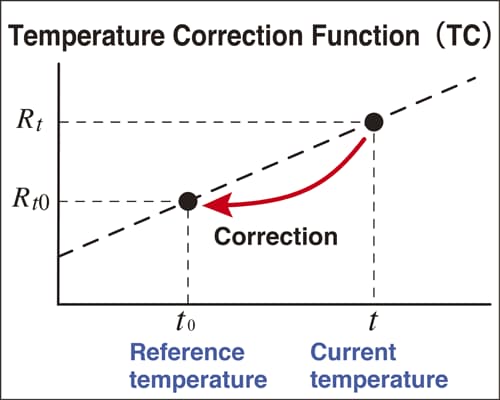

Correct resistance values, which vary with temperature, to a reference temperature with the temperature correction function Temperature correction functions can convert readings to resistance values at a user-specified reference temperature and display the results, even for materials such as copper wire whose resistance varies with temperature.The RM3548’s temperature correction function converts the measured resistance value Rt at the current temperature t to the resistance value Rt0 at the reference temperature t0, as shown in the figure. The Temperature Sensor Z2002 (which comes with the RM3548) is used to perform temperature correction. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Open-terminal voltage | 5.5 V DC max. |
|---|---|
| Measurement speed | Fixed |
| Display refresh rate | Without OVC: approx. 100ms, With OVC: approx. 230ms |
| Power supply | LR6 (AA) Alkaline batteries ×8, Continuous use: 10 hours (Under our company's conditions), Rated power consumption: 5 VA max. |
| Dimensions | 192 mm (7.56 in) W × 121 mm (4.76 in) H × 55 mm (2.17 in) D |
