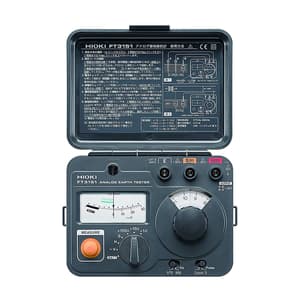

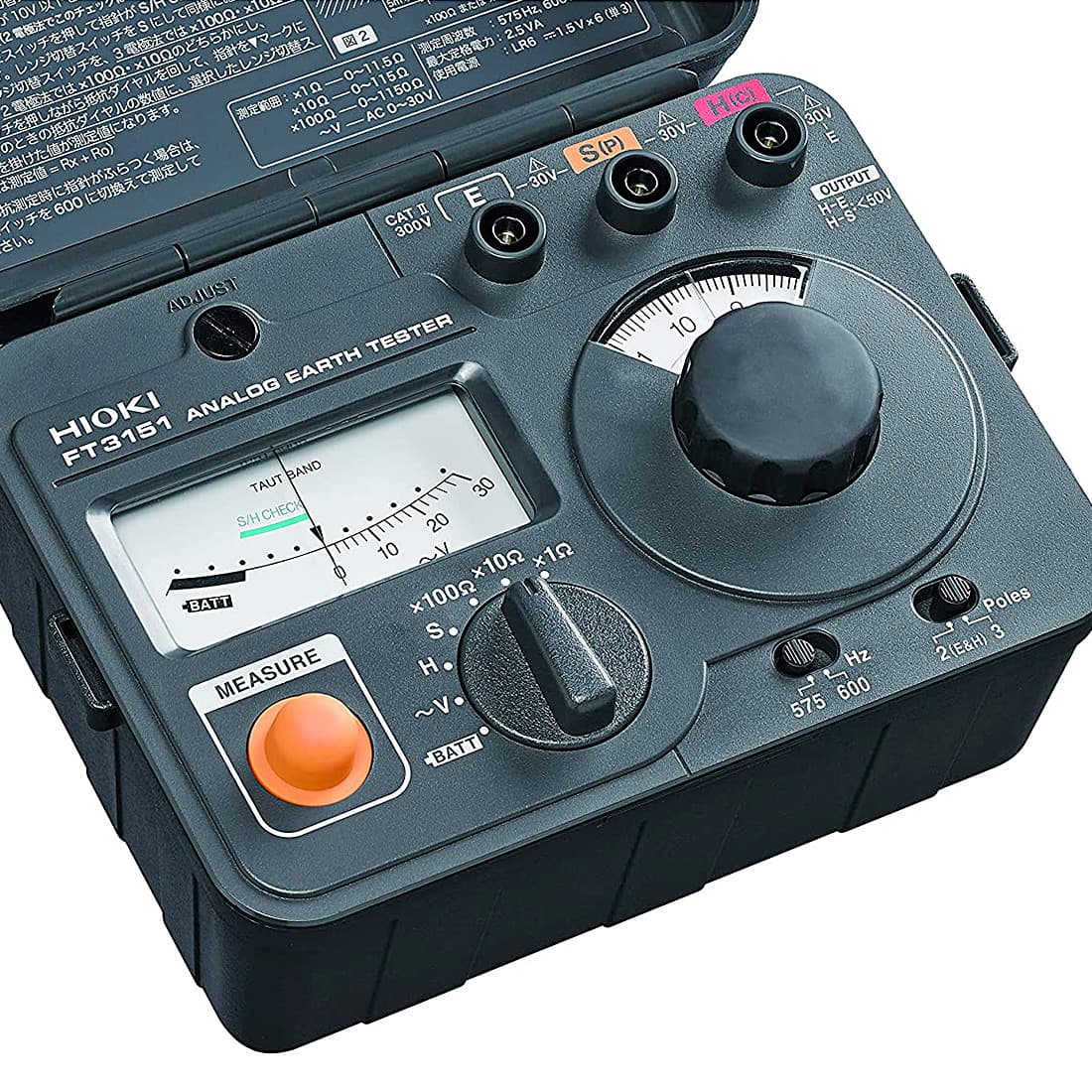

Hioki Analog Earth Tester With Easy Cord Winding System, FT3151
Roll over the image to zoom in
Key Features
- Product Type: Earth/Ground Resistance Tester
- Weight: 760 g
- Functions: Auxiliary earth resistance check S (P)/ H(C)
- Power supply: LR6 (AA) Alkaline battery ×6, 1100 times operation (at 30 sec. measurement/ 30 sec. rest cycle)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹39,872 (Incl. of all taxes)
₹33,790 + ₹6,082 GST (18%)
MRP was MRP ₹39,753
Save 15%
5 Business Days
1
930303390
Download Product LeafletNot available
Download Hioki CatalogueNot available
Download Hioki CatalogueNot available
Highlights
Earthing or grounding of electrical equipment is essential to maintain safety, protecting lives, as well as prevent damage to equipment. The FT3151 Analog EarthTester uses the AC phase differential system to measure earthing resistance, which assures that accurate measurements are unaffected by earth voltage and auxiliary earthing resistance. New innovate cord winders make clean up a breeze. CAT II 300 V
Key Features:
- Three-electrode method, Two-electrode method (Simple Measurement)
- Wide measurement range for 0 to 1150 Ω, based on EN standard
- Switchable measurement frequency to reduce the effects of power supply harmonics
- Dramatically faster setup: Comes with improved earthing rods and cord winders
- To ensure safety, use the optional Test Lead L9787 when making measurements using the two-electrode method.
| Measurement system | AC potentiometer method, Three-electrode method/ two-electrode method (switchable) Measuring frequency: 575 Hz/ 600 Hz Measurement current: Three-electrode method: 15 mA rms or less; Two-electrode method: 3 mA rms or less / Open circuit voltage: 50 V AC rms or less |
||
| Measurement range | 10 Ω (0 to 11.5 Ω) | 100 Ω (0 to 115 Ω) | 1000 Ω (0 to 1150 Ω) |
| Nominal Deviation | ±0.25 Ω | ±2.5 Ω | ±25 Ω |

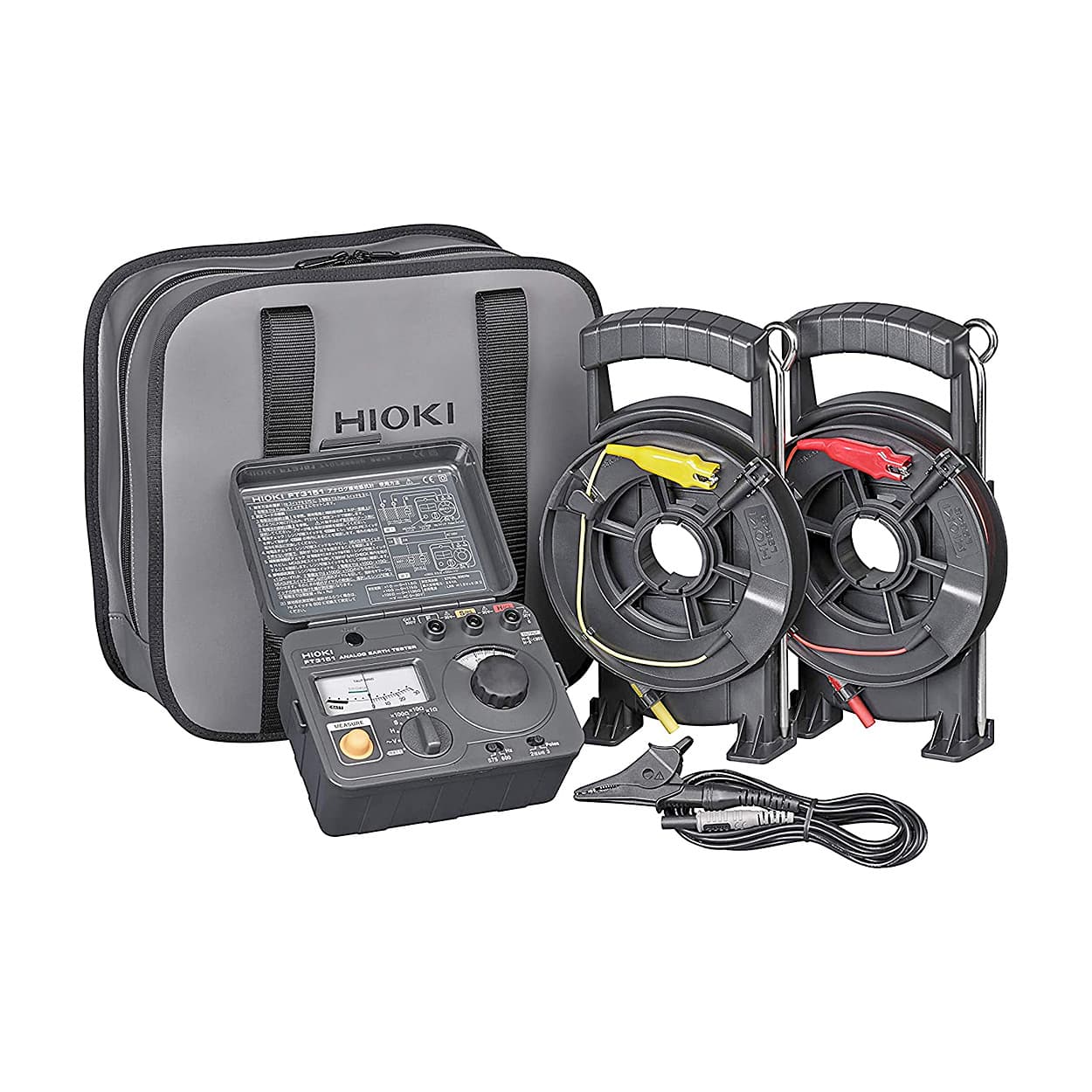

What's Included In This Package:
- 1x Auxiliary Earthing Rod L9840 (2 piece set)
- 1x Measuring cable L9841 (alligator clip, black 4 m (13.12 ft)
- 1x Measurement Cable L9842-11 (yellow 10 m (32.81 ft), equipped with winder)
- 1x Measurement Cable L9842-22 (red 20 m (65.62 ft), equipped with winder)

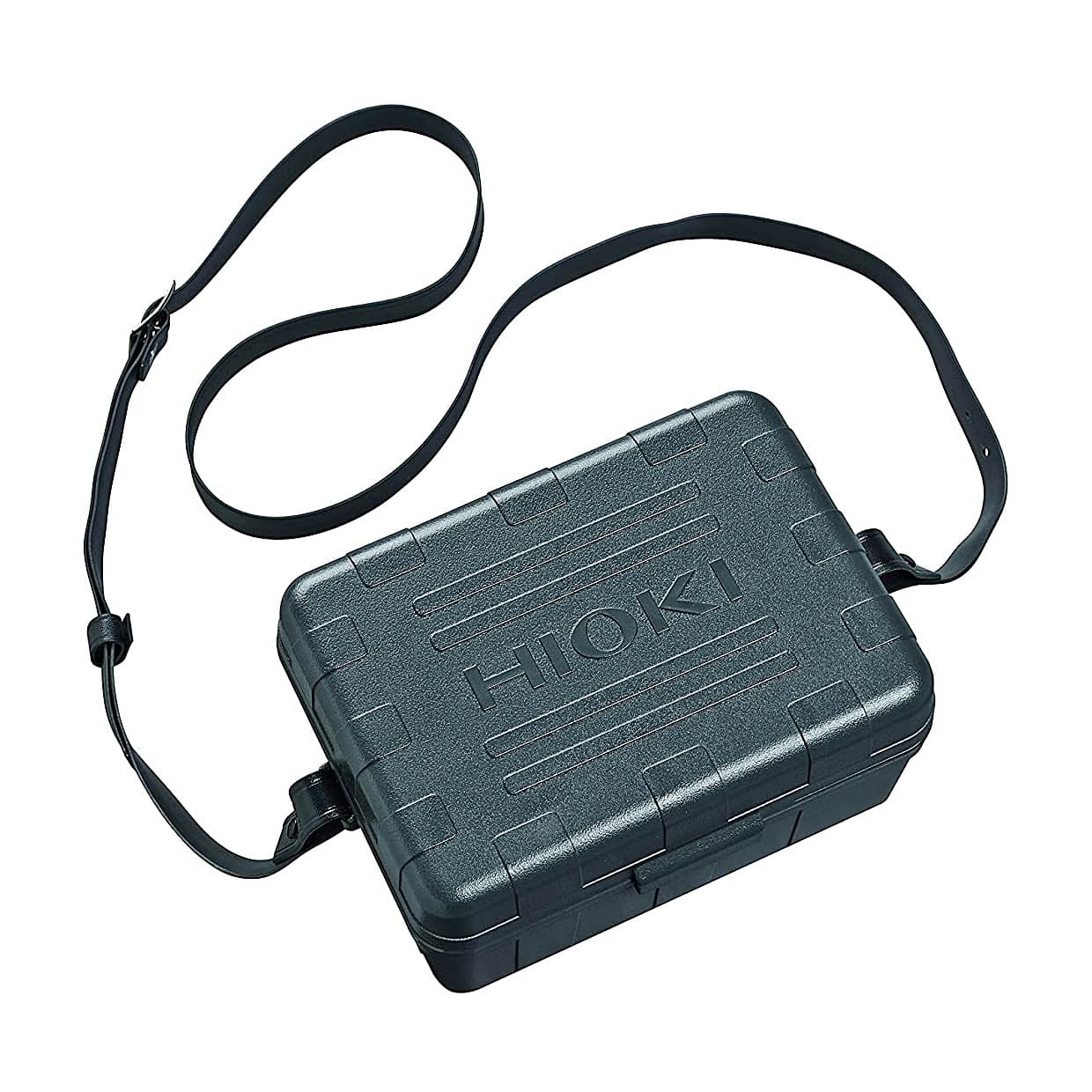

- 1x Carrying Case C0106
- 1x Instruction manual
- 6x LR6 (AA) Alkaline battery
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Functions | Auxiliary earth resistance check S (P)/ H(C) |
|---|---|
| Earth potential measurement | 0 to 30 V, Nominal Deviation: ±3.0 % f.s. |
| Power supply | LR6 (AA) Alkaline battery ×6, 1100 times operation (at 30 sec. measurement/ 30 sec. rest cycle) |
| Dimensions and mass | 164 mm (6.46 in)W × 119 mm (4.69 in)H × 88 mm (3.46 in)D, 760 g (26.8 oz) |
