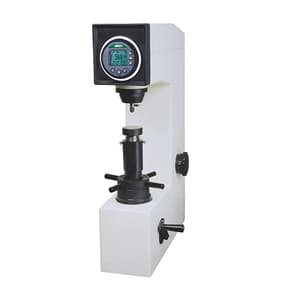

Insize 98N Manual Digital Rockwell Hardness Tester, ISH-RD200
Roll over the image to zoom in
Key Features
- Product Type: Hardness Tester
- Weight: 60 kg
- Preliminary Test Force: 98N
- Test Force: 588N, 980N, 1471N
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,38,911 (Incl. of all taxes)
₹2,02,467 + ₹36,444 GST (18%)
Out of Stock
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Tolerance testing
- Set testing times (2~10) to have average value and the difference of max. and min. value
- Convert to other Rockwell scales, HV or HB
- Memory of 500 testing values for browsing and output Testing value can be sent to wireless printer automatically
- Calibration function compensates the testing value for high accuracy
- The hardness value of soft materials like plastic is not stable, the lock function can obtain the value automatically
- Automatic power off
- According to ISO 6508
- Keyboard signal, can be transmitted to Excel
- Data Output, Inspection Certificate
- Hardness Scale (with Standard Indenters): HRA, HRB, HRC, HRD, HRF, HRG
- Hardness Scale (with Optional Indenters): HRE, HRH, HRK

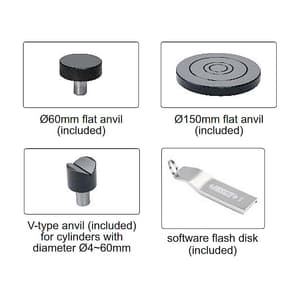

What's Included in this Package:
| Main unit | 1 pc |
| Ø60mm flat anvil | 1 pc |
| Ø150mm flat anvil | 1 pc |
| V-Type anvil | 1 pc |
| Diamond indenter | 1 pc |
| Ø1.5875mm carbide ball indenter | 1 pc |
| Hardness test block HRB88~95 | 1 pc |
| Hardness test block HRC60~65 | 1 pc |
| Hardness test block HRC20~30 | 1 pc |
| Anti-dust cover | 1 pc |
| Software and USB cable | 1 pc |
| AC/DC adapter | 1 pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Preliminary Test Force | 98N |
|---|---|
| Test Force | 588N, 980N, 1471N |
| Stage Elevation | Manual |
| Load Control | Manual |
| Resolution | 0.1HR |
| Output | Wireless & USB |
| Memory | 500 |
| Max. Workpiece Height | 170 mm |
| Max. Testing Width | 165 mm (From the Center of Indenter to the wall of main body) |
| Power Supply | Built-in Rechargeable Battery |
| Dimension | 520 x 160 x 700 mm |
