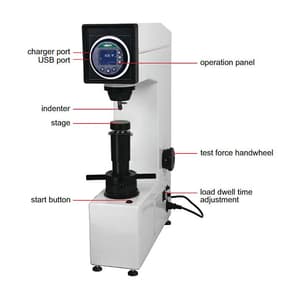

Insize Automatic Digital Rockwell Hardness Tester, ISH-MRD200
Roll over the image to zoom in
Key Features
- Product Type: Hardness Tester
- Resolution: 0.1 HR
- Output: Wireless and USB
- Power supply: 220V, 50/60Hz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,19,197 (Incl. of all taxes)
₹2,70,506 + ₹48,691 GST (18%)
Out of Stock
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Tolerance testing
- Set testing times (2~10) to have average value and the difference of max. and min. value
- Convert to other Rockwell scales, HV or HB automatically
- The memory of 500 testing values for browsing and output
- Testing value can be sent to the wireless printer automatically
- The calibration function compensates the testing value for high accuracy black_small_square
- The hardness value of soft materials like plastic is not stable, the lock function can obtain the value automatically
- The display unit is automatic power off
- Data output.
Standard Delivery:
| Main unit | 1 pc |

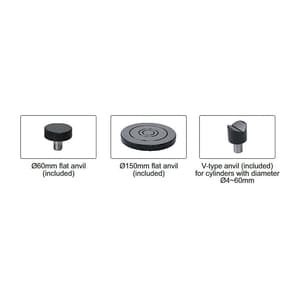

| 60mm flat anvil | 1 pc |
| 150mm flat anvil | 1 pc |
| V-Type anvil | 1 pc |
| Diamond indenter | 1 pc |
| 1.5875mm carbide ball indenter | 1 pc |
| Hardness test block HRB88~95 | 1 pc |
| Hardness test block HRC60~65 | 1 pc |
| Hardness test block HRC20~30 | 1 pc |
| Anti-dust cover | 1 pc |
| Software and USB cable | 1 pc |
| AC/DC adapter | 1 pc |

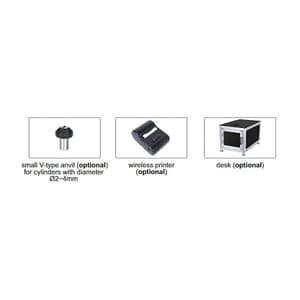

Optional Accessory:
| Wireless printer | ISH-DS-PRINTER |
| 3.175mm carbide ball indenter | ISH-EHK-INDENTER |
| Hardness test block HRB88~100 | HDT-B-HRB |
| Hardness test block HRC60~70 | HDT-B-HRC3 |
| Hardenss test block HRC20~30 | HDT-B-HRC1 |
| Small V-type anvil | ISH-SMALLANVIL |
Add ''U" on code No. When the power supply is 110V, 50/60Hz
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Hardeness Scale | HRA, HRB, HRC,HRD, HRF, HRG (with standard identers) / HRE, HRH, HRK (with optional indenter) |
|---|---|
| Preliminary test force | 98N |
| Test force | 588N, 980N,1471N |
| Stage elevation | Manual |
| Load control | Automatic (load/dwell/unload) |
| Load dwell time | 1~99 second |
| Resolution | 0.1 HR |
| Output | Wireless and USB |
| Memory | 500 |
| Max. workpiece Height | 170 mm |
| Max. testing width | 165 mm (from the center of indenter to the wall of main body) |
| Power supply of the display unit | Built-in rechargeable battery |
| Power supply | 220V, 50/60Hz |
| Dimensions | 520 x 160 x 700 mm |
| Includes | Inspection Certificate |
