Insize Automatic Rockwell Hardness Tester (Basic Type), HDT-RA151
Roll over the image to zoom in
Key Features
- Product Type: Hardness Tester
- Weight: 65 kg
- Load dwell time: 1~60 second
- Min. reading: 0.5HR
- Power supply: 220V, 50/60Hz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,27,369 (Incl. of all taxes)
₹1,07,940 + ₹19,429 GST (18%)
MRP was MRP ₹1,54,200
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
Standard Delivery:

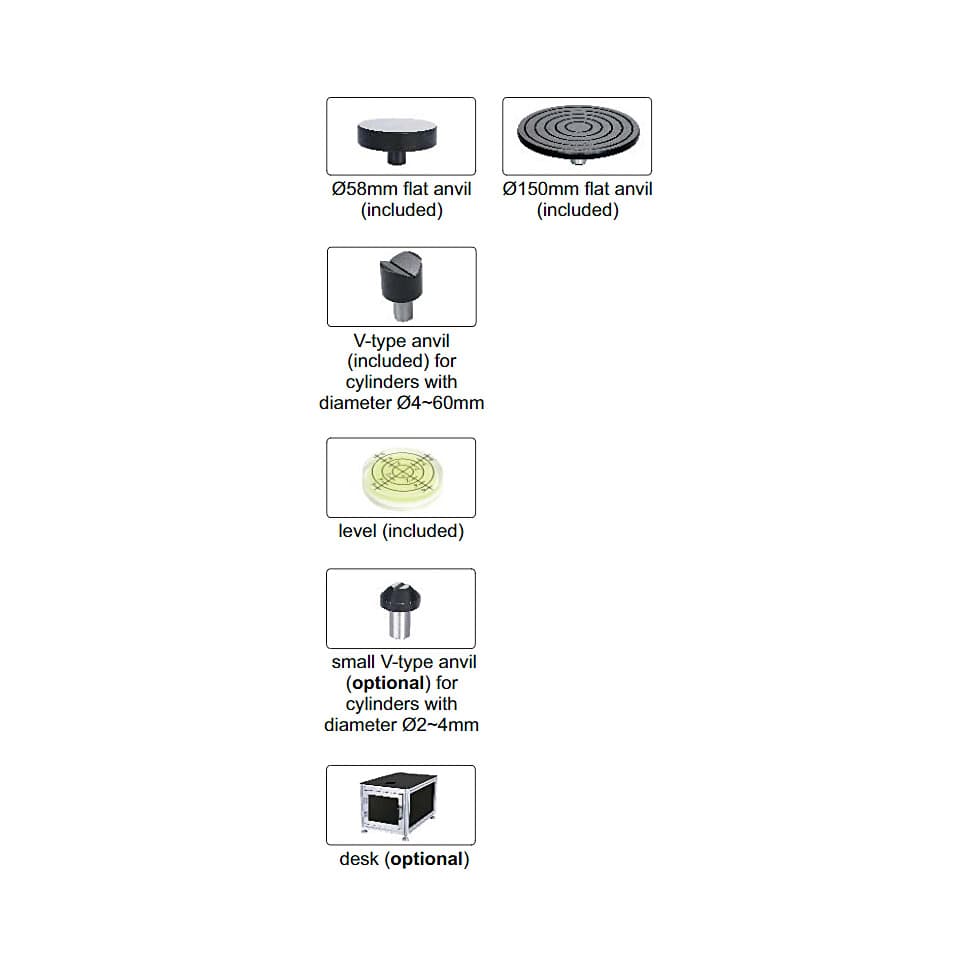

| Main unit | 1 pc |
| 58mm flat anvil | 1 pc |
| 150mm flat anvil | 1 pc |
| V-type | 1 pc |
| Diamond indenter | 1 pc |
| 1.5875mm steel ball indenter | 1 pc |
| level | 1 pc |
| Hardness test block HRA80~88 | 1 pc |
| Hardness test block HRB85~95 | 1 pc |
| Hardness test block HRC20~30 | 1 pc |
| Hardness test block HRC35~55 | 1 pc |
| Hardness test block HRC60~70 | 1 pc |
| Anti-dust cover | 1 pc |
Optional Accessory:
| Hardness test block HRA80~84 | HDT-B-HRA |
| Hardness test block HRB88~100 | HDT-B-HRB |
| Hardness test block HRB20~30 | HDT-B-HRC1 |
| Hardness test block HRC35~55 | HDT-B-HRC2 |
| Hardenss test block HRC60~70 | HDT-B-HRC3 |
| Small V-type anvil | ISH-SMALLANVIL |
Add ''U" on code No. When the power supply is 110V, 50/60Hz
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Hardeness Scale | HRA, HRB, HRC,HRD, HRF, HRG |
|---|---|
| Preliminary test force | 98N |
| Test force | 588N, 980N,1471N |
| Display | Analogue |
| Stage elevation | Manual |
| Load control | Automatic (load/dwell/unload) |
| Load dwell time | 1~60 second |
| Min. reading | 0.5HR |
| Max. workpiece Height | 170 mm |
| Max. testing width | 128 mm (from the center of indenter to the wall of main body) |
| Power supply | 220V, 50/60Hz |
| Dimensions | 520 x 225 x 640 mm |
| Includes | Inspection Certificate |
