Insize Manual Rockwell Hardness Tester (Basic Type), HDT-RW160
Roll over the image to zoom in
Key Features
- Product Type: Hardness Tester
- Weight: 70 kg
- Load dwell time: 1~60 second
- Min. reading: 0.5HR
- Max. workpiece Height: 170 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹84,135 (Incl. of all taxes)
₹71,301 + ₹12,834 GST (18%)
MRP was MRP ₹1,13,176
Save 37%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
Standard Delivery:

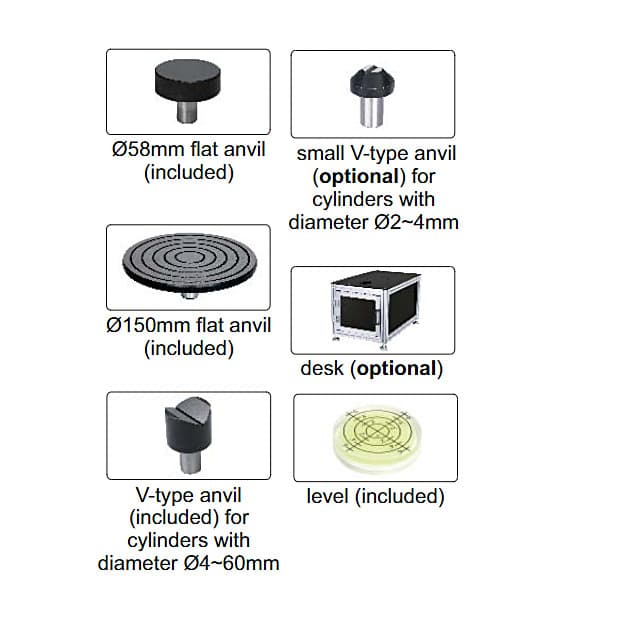

| Main unit | 1 pc |
| 58mm flat anvil | 1 pc |
| 150mm flat anvil | 1 pc |
| V-type anvil | 1 pc |
| Diamond indenter | 1 pc |
| 1.5875mm steel ball indenter | 1 pc |
| 1.5875mm steel ball | 5 pc |
| Level | 1 pc |
| Hardness test block HRA80~88 | 1 pc |
| Hardness test block HRB85~95 | 1 pc |
| Hardness test block HRC20~30 | 1 pc |
| Hardness test block HRC35~55 | 1 pc |
| Hardness test block HRC60~70 | 1 pc |
| Anti-dust cover | 1 pc |
Optional Accessory:
| Hardness test block HRA80~84 | HDT-B-HRA |
| Hardness test block HRB88~100 | HDT-B-HRB |
| Hardness test block HRB20~30 | HDT-B-HRC1 |
| Hardness test block HRC35~55 | HDT-B-HRC2 |
| Hardenss test block HRC60~70 | HDT-B-HRC3 |
| Small V-type anvil | ISH-SMALLANVIL |
Add ''U" on code No. When the power supply is 110V, 50/60Hz
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Hardeness Scale | HRA, HRB, HRC,HRD, HRF, HRG |
|---|---|
| Preliminary test force | 98N (10kg) |
| Test force | 588N (60kg) 980N (100kg) 1471N (150kg) |
| Display | Analogue |
| Stage elevation | Manual |
| Load control | Manual |
| Load dwell time | 1~60 second |
| Min. reading | 0.5HR |
| Max. workpiece Height | 170 mm |
| Max. testing depth | 135 mm (from the center of indenter) |
| Dimensions | 466 x 238 x 630 mm |
| Includes | Inspection Certificate |
