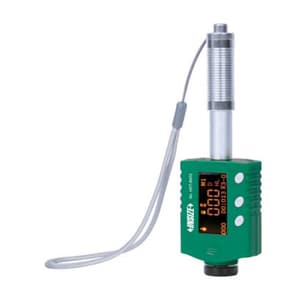

Insize Pen-Type Leeb Hardness Tester (Standard Type), HDT-B430
Roll over the image to zoom in
Key Features
- Product Type: Hardness Tester
- Weight: 110 g
- Accuracy: ±6HLD (When HLD = 800)
- Power Supply: 3.7V Li-ion Rechargeable Battery
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹62,481 (Incl. of all taxes)
₹52,950 + ₹9,531 GST (18%)
MRP was MRP ₹75,643
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Measuring Range: HLD170-960 / HRC17-70 / HRB13-109 / HB20-655 /HV80-940 / HSD32-99.5 / HRA30-88 / ob(rm)255-2180N/mm²
- Impact device D is included

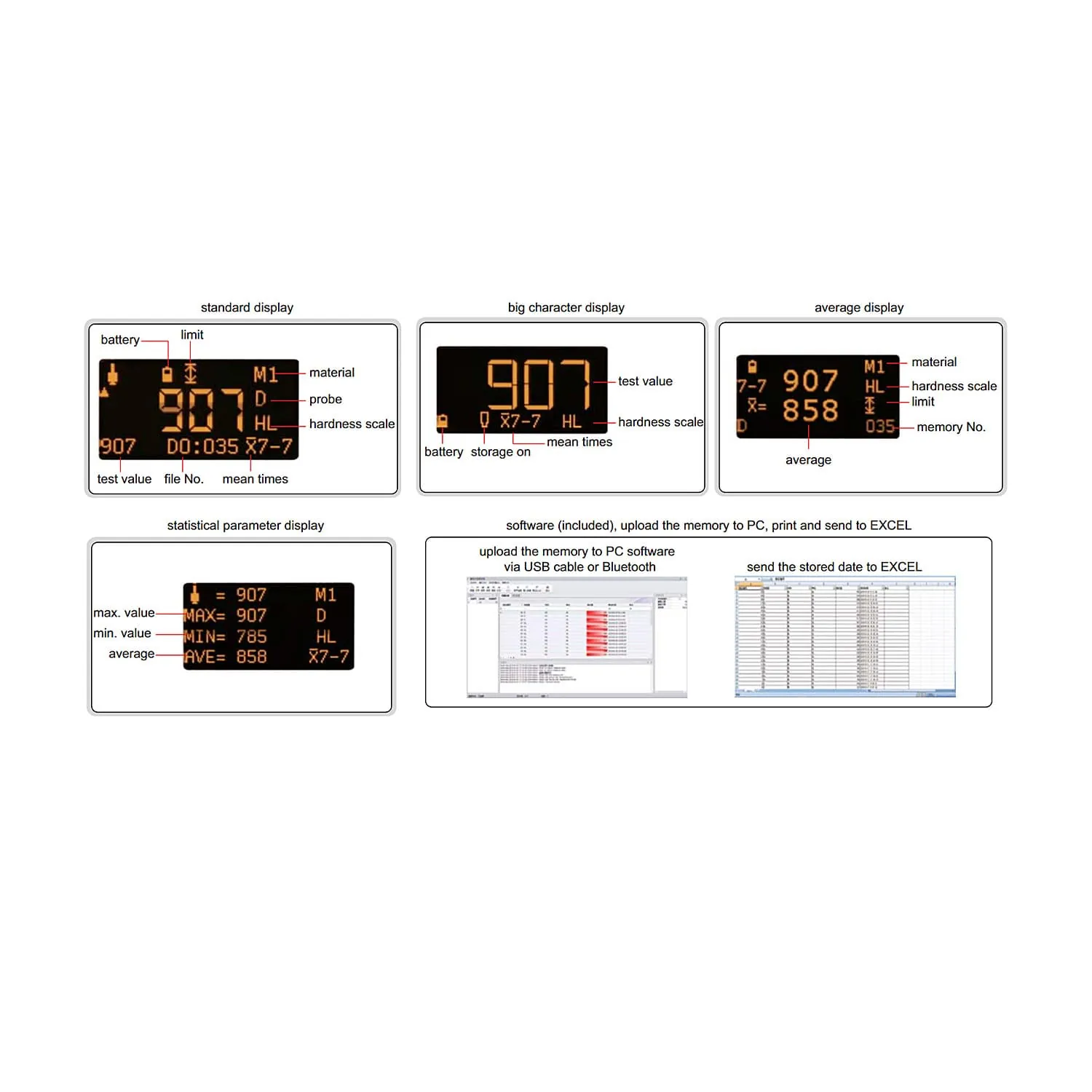

- High contrast OLED display
- Based on Leeb (HLD), converted to Vickers (HV), Brinell (HB), Rockwell (HRC, HRA and HRB)Shore (HS) and tensile strength (ob)
- Dual value display, shows both Leeb and other conversion values
- No need to set the testing direction
- 31 files can be saved, each containing 100 measurement data
- Automatically calculate maximum, minimum, average value
- Connected to PC software via USB or Bluetooth
- Connected with printer via Bluetooth
- According to ASTM A956, DIN 50156 GB/T, 17394
Applicable Workpiece:
| Minimum Weight | 5Kg (Direct Measurement) |
| 2kg (On Solid Support) | |
| 0.05Kg (Coupled on Plate) | |
| Minimum Thickness | 5 mm |
| Minimum Radius of Curved Surface | 30 mm |
| Maximum Roughness (Ra) | 2um |
Standard Delivery:
| Main unit | 1 pc |
| Hardness test block D | 1 pc |
| Small support ring | 1 pc |
| Cleaning brush | 1 pc |
| AC/DC adapter | 1 pc |
| Software dise and USB cable | 1 pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Resolution | 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 0.1HRA, 0.1HSD |
|---|---|
| Accuracy | ±6HLD (When HLD = 800) |
| Operation Temperature | -20 ~ 45°C |
| Output | USB and bluetooth |
| Power Supply | 3.7V Li-ion Rechargeable Battery |
| Dimensions | 148 x 44 x 28 mm |
