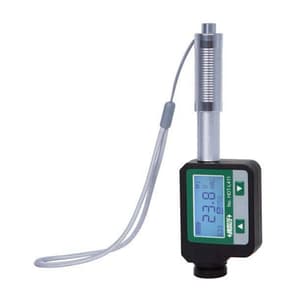

Insize Portable Leeb Hardness Tester (Basic Type), HDT-L411
Roll over the image to zoom in
Key Features
- Product Type: Hardness Tester
- Weight: 105 g
- Accuracy: ±6HLD% (When HLD =800)
- Power Supply: 1 X AAA battery
- Minimum Thickness: 5mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹33,080 (Incl. of all taxes)
₹28,034 + ₹5,046 GST (18%)
MRP was MRP ₹38,936
Save 28%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Impact device D
- Universal testing angle, no need to set impact direction
- Dual-coil probe, high accuracy
- Based on Leeb (HLD), converted to Vickers (HV), Brinell (HB), Rockwell (HRC, HRA, and HRB), Shore (HS), and tensile strength (SGM)
- Dual value display shows both Leeb and converted hardness
- High contrast digital LCD display

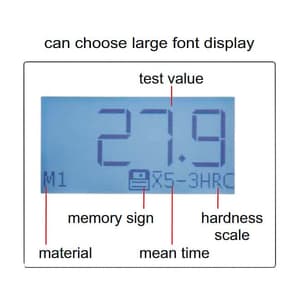

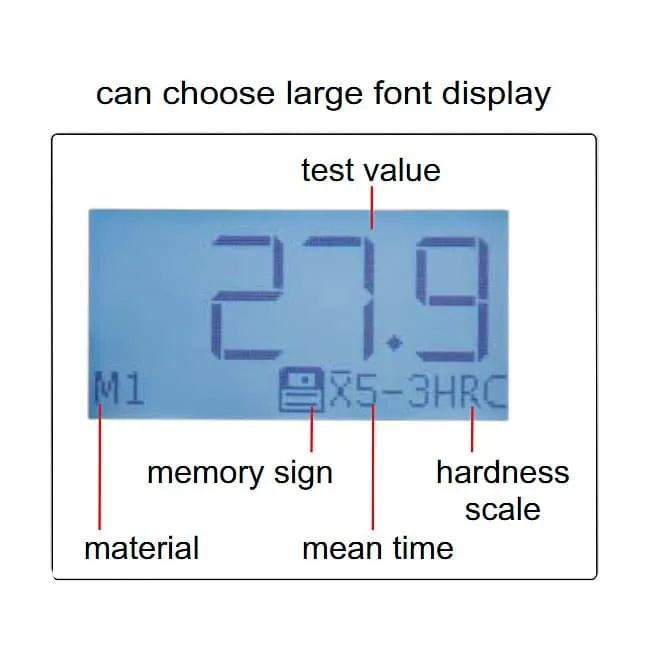

- Can choose large font display
- Automatically calculate the maximum, minimum, average value

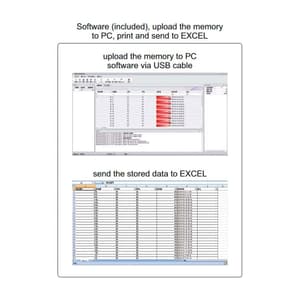

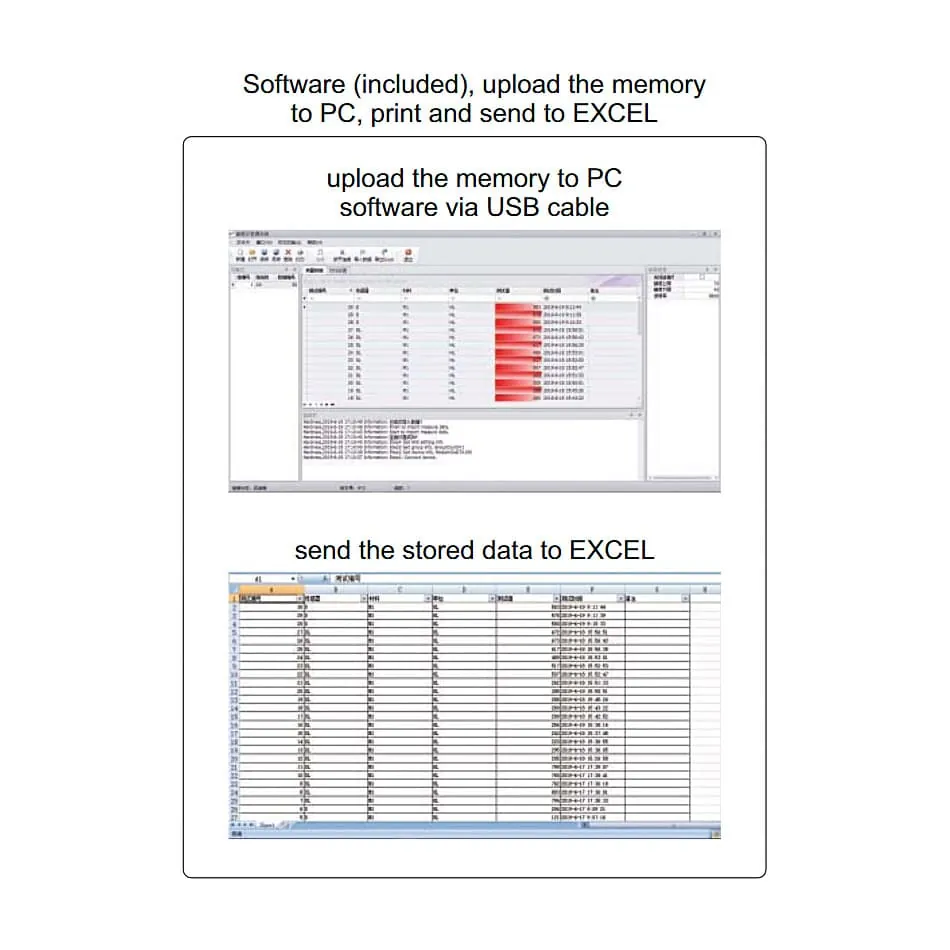

- Connected to PC via USB
- Save 999 data
- Data output
- Operating temperature: -20°C~45°C
- According to ASTM A956, DIN 50156, GB/T 17394.

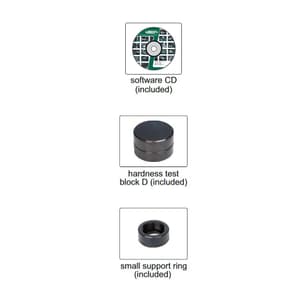

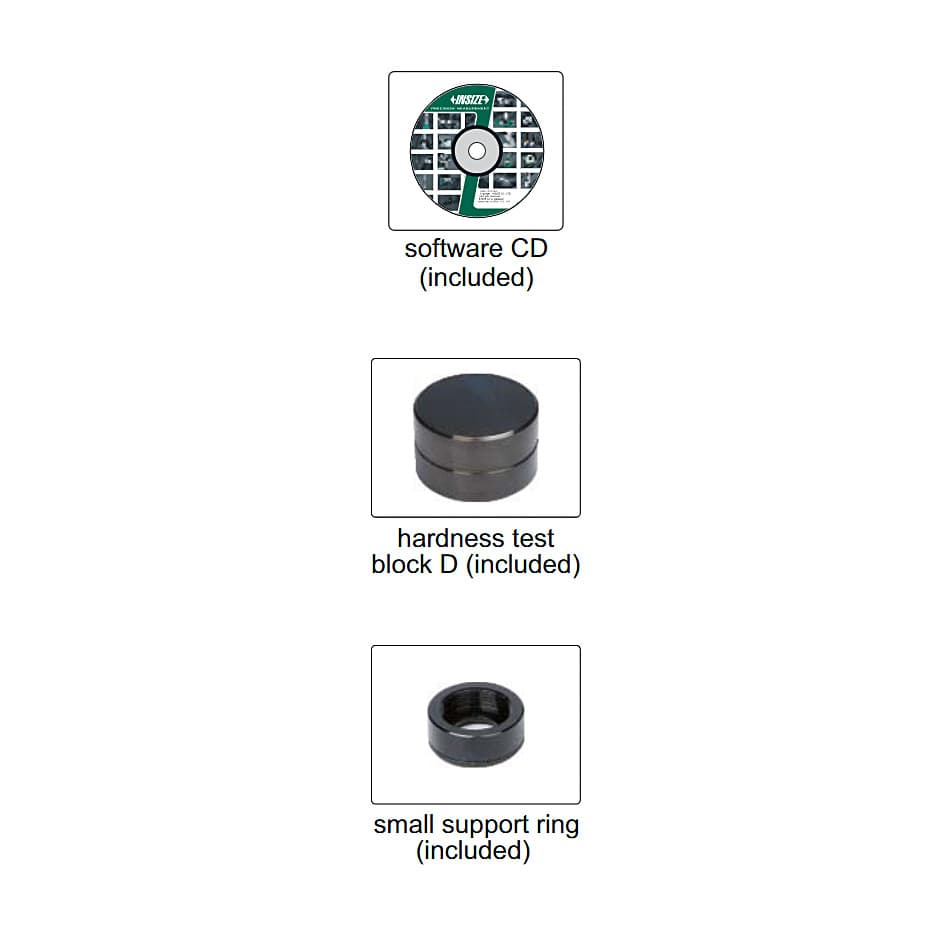

Standard Delivery:
| Main unit | 1 pc |
| Hardness test block D | 1 pc |
| Small support ring | 1 pc |
| Cleaning brush | 1 pc |
| AAA battery | 1 pc |
| Software disc and USB cable | 1 pc |
Optional Accessory:
| Support ring | see details |
| Hardness test block D | HDT-B-HLD3 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Resolution | 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 0.1HRA, 0.1HS, 1SGM |
|---|---|
| Accuracy | ±6HLD% (When HLD =800) |
| Output | USB |
| Power Supply | 1 X AAA battery |
| Dimensions | 148 x 45 x 21 mm |
| Minimum Weight | 5kg (direct measurement) / 2kg (on solid support) / 0.05kg (coupled on plate) |
| Minimum Thickness | 5mm |
| Minimum Radius of curved surface | 30mm |
| Maximum Roughness (Ra) | 2um |
| Includes | Inspection Certification |
| Measuring range | HL100-960, HRC1-74.7, HRB1.2-140, HB28-1027, HV45-1230, HS4-112, HRA7-88.5, SGM (rm) 118-3315N/MM2 |
