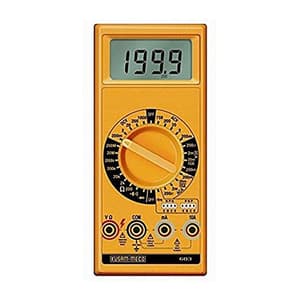

Kusam-Meco 3-1/2 Digits / 1999 Counts Large LCD Display Digital Multimeter, 603
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 250 g
- Display Digits: 3-1/2
- Display Counts: 1999 Counts (Max.)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,667 (Incl. of all taxes)
₹2,260 + ₹407 GST (18%)
MRP was MRP ₹2,825
Save 20%
3 Business Days
1
90303100
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
Low battery - The "
" sign is displayed when the battery voltage drops below the operating Voltage.
" sign is displayed when the battery voltage drops below the operating Voltage.
Features & Benefits:
- High Accuracy, Digital Reading
- Large LCD for easy reading
- Automatic Zero adjustment.
- Instant continuity buzzer
- Overload protection on all ranges
- Recessed safety-designed Input Jacks
- Diode, Continuity Test & Transistor hFE Test.
- Automatic -ve polarity indication
Package Content:
- Test Leads
- Spare Fuse
- Carrying Case
- User's Manual & Battery.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Sensing | Average Sensing |
|---|---|
| Basic Accuracy | ± (0.5%rdg + 1dgt) |
| Display Digits | 3-1/2 |
| Display Counts | 1999 Counts (Max.) |
| Display Size | 18 mm |
| Display Type | Large LCD Display |
| Measurement Rate | 3 Measurements / Sec Nominal |
| Over Range Indication | MSB (Highest) Digit (1) or (-1) is Displayed |
| Operating Temperature | 0°C to +50°C; 70%R.H. |
| Storage Temperature | -20 °C to 60 °C; 0-80% R.H. (With Battery Removed) |
| Power Supply | 1 x Standard 9V Battery |
| Dimension (LxWxH) | 170 x 80 x 40 mm |
